Place of Origin:
Chongqing, China
Brand Name:
HH
Certification:
//
Model Number:
Customized
Contact Us

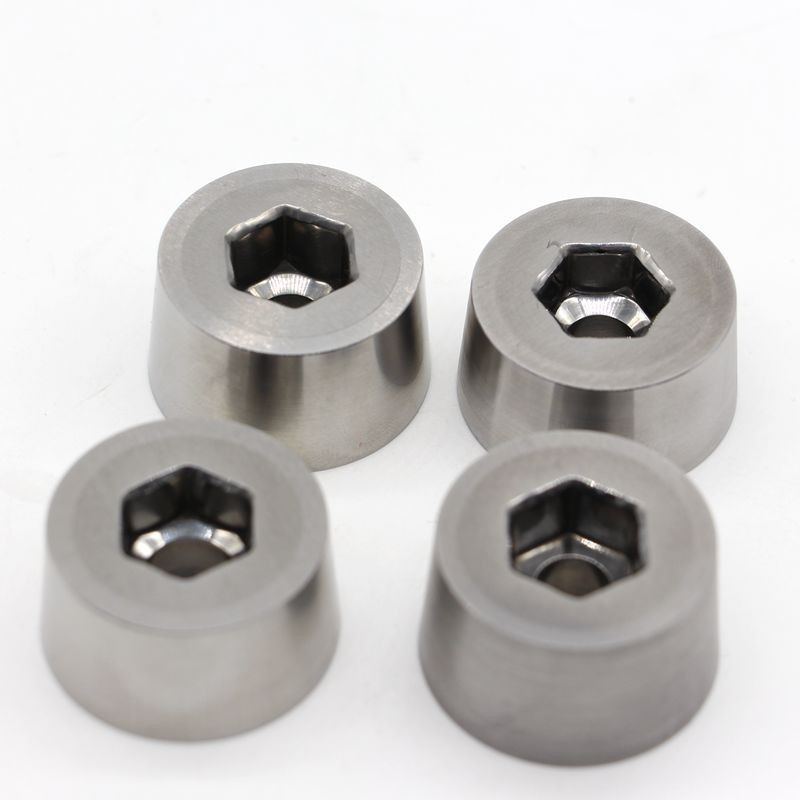

Nut Dies are exclusively used in fasteners industry to make fasteners of high strength and high specification required for specific purposes by the various industries. Hexagonal, Square & Round are the most common shapes of nuts are designed from these Dies of high strength that can bear large impact of pressure and stress. Both standard and non standard nuts are manufactured by using these high quality Dies. Material used in making these Dies is very much specific having unique composition to provide certain essential characteristics of strength, perfection, anticorrosion property with super fine and smooth finish of international standards.
Since our foundation, Henghui have become the foremost company of a broad assortment of Nut Forming Dies. The offered dies are manufactured by utilizing advance techniques and utmost quality raw material as per the industrial standards. Apart from this, our offered dies are inspected on numerous quality parameters in order to ensure its durability and quality. Clients can avail these dies from us in varied sizes & shapes at industry competent prices.
Insert Material:We can suggest different carbide material according to different usage.
|
|
Item
|
Co
|
Grain Size
|
Density
|
Hardness
|
TRS
|
Impact Strength
|
Application
|
|
Mediun-Grained
|
|
Co%
|
μm
|
g/cm²
|
HRA
|
Kgf/mm²
|
Kgf/m-cm²
|
|
|
KG2
|
6.50%
|
2~3
|
14.90
|
90.5
|
320
|
0.28
|
Drawing die
|
|
|
KG3
|
9%
|
2~3
|
14.61
|
89.3
|
340
|
0.52
|
Extrusion die
|
|
|
KG5
|
12%
|
2~3
|
14.31
|
88.3
|
340
|
0.58
|
Extrusion die
|
|
|
KG6
|
14%
|
2~3
|
14.12
|
87.3
|
320
|
0.65
|
Extrusion die
|
|
|
Coarse-Grained
|
ST6
|
15%
|
3~6
|
13.80
|
86.0
|
270
|
0.78
|
Stainless steel
|
|
ST7
|
20%
|
2~6
|
13.40
|
85.3
|
270
|
0.80
|
Stainless steel
|
|
|
EA65
|
18%
|
2~6
|
13.73
|
85.0
|
300
|
0.80
|
Carbon steel screw/cutting die
|
|
|
VA80
|
20%
|
3~6
|
13.58
|
84.0
|
280
|
0.85
|
Impact resistance
|
|
|
VA90
|
22%
|
6~9
|
13.39
|
82.5
|
240
|
0.90
|
Impact resistance
|
|
|
EA90
|
24%
|
2~6
|
13.22
|
82.8
|
270
|
0.90
|
Impact resistance
|
Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Advantages:
Packing and Delivering:
F&Q:
