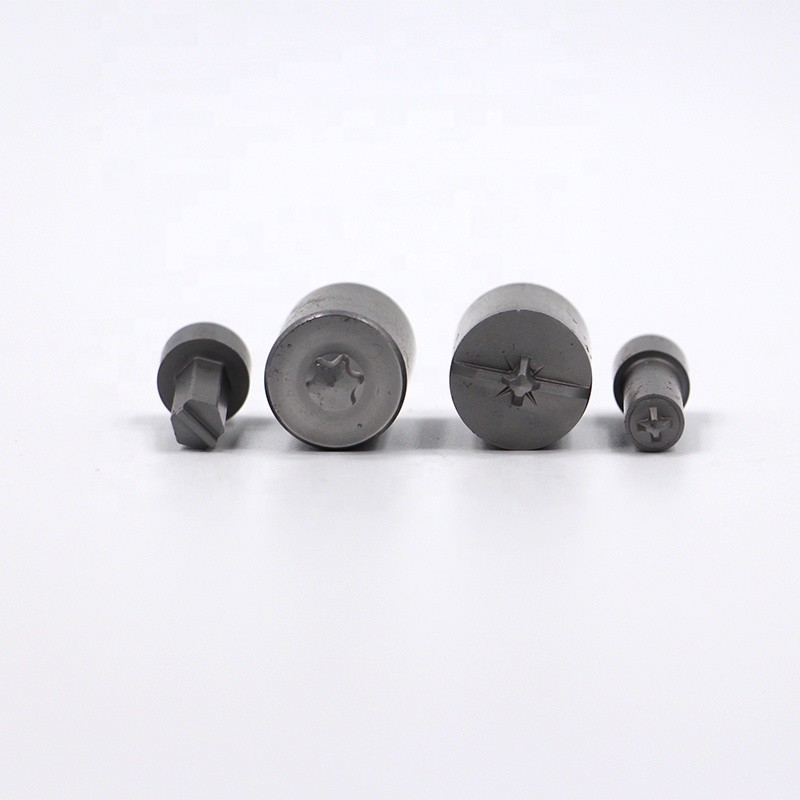

ISO Certificated HSS Screw Header Punch With / Without TiN Coated

ISO Certificated HSS Screw Header Punch With / Without TiN Coated

screw header punch

second header punch

ISO HSS Screw Header Punch

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Certification:

ISO9001:2015

Model Number:

customized

Contact Us

Request A Quote
Product Details
Product Name:
Good Screw Header Punch With TiN Coated
Port:
Chongqing, Shanghai, Shenzhen
Shaping Mode:
Punching Mold, Forging Mould, Compression Mould, CNC/Milling/+Grinding, Plastic Injection Mould
Product Material:
Steel, Metal, Tungsten Carbide, High Speed Steel, M2 M42 SKH59 SKH9
Standard:
DIN, ANSI, ISO, JIS, BS
Tolerance:
+/-0.002, 0.001mm
Payment & Shipping Terms
Minimum Order Quantity
50 Piece/Pieces
Price
USD+Negotioned+Pieces
Packaging Details
Stand carton or wooden case for exporting.
Delivery Time
8-15 days
Payment Terms
T/T, Western Union
Supply Ability
10000000 Piece/Pieces per Month
Product Description
ISO Certificated HSS Screw Header Punch With / Without TiN Coated

Customization is welcome in Henghui. We can process all kind of tungsten carbide cold heading dies according to your drawings.

Header punch standard

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD

The common head style

Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on.

The common driver

Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square, square/slot , Phillips/square, triangle and so on.

The coating about the screw header punch

Without coating,
With TIN coating-yellow coated ,
With TILAN coating-black coated

The standard size

12x25mm
14x25mm
18x25mm
23x25mm

The unit weight about the header punch

12x25mm: 25g/pc
14x25mm: 30g/pc
18x25mm: 50g/pc
23x25mm: 80g/pc

We make standard second header punches, but also the special punches, please send us drawings.
We will make the right punches which you want!

Aftersales Service

Pls open it and check all the items ASAS when you receive the packages,if there is any damage or mistake, tell me pls , we will exchange or replace for you within two weeks
(don’t let it more than two weeks ).
Customer satisfaction is the most important to us . if you have any problem.
pls feel free to contact with us!

Please specify the details of header punches as follows when you inquire or order

1. The material of header punches you need or the material of screw you used.
2. The specification of standard you use, for examples: JIS, ANSI or DIN.
3. Screw Application: Machine Screw , Tapping Screw , Wood Screw or any others.
4. Head Style: Flat head , Pan head , Truss head , Binding head or any others.
5. Nominal Size: JIS-M20, M23; ANSI-#4, #8; DIN-M30, M35.
6. Recess Driver: Phillips , Slot, Phillips and Slot Combination, Pozi ect.
7. Dimension : 12x25, 14x25, 18x25, 23x25.
8. Coated : Plian , TIN Coated , TILAN Coated.

ISO Certificated HSS Screw Header Punch With / Without TiN Coated 0

Buying Guides

In order to provide our clients the best service,We have set up customer management platform.
Standing in our clients’s way.,we know our clients’ demands and the problems we need to solve .

Drawings or samples provided
We get the drawings or samples from our clients.
R&D
We support customer R&D. Make the files or improve the
 design if you needed.
Quotation
According to the drawings or samples
Mold design
Send mold design for confirmation within 3 days after getting
 mold charge
Mold making
Start to make the mold after design confirmed
Test-run
After mold is finished, we’ll test it and get samples
Sample confirmation
Send the free samples to client to make sure perfect
(Mold modification)
(If the sample is not ok, we’ll modify the mold for free,
Then send free samples to you again...until meet your
 demands)
(Mold delivery)
(Shipping mold out if no need to injection plastic parts,
packed by wooden case by see or by air, according to client’s
 requirements)
Plastic Injection Service
Start to high-volume production with the ordered mold.

FAQ

Q1::Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants
and R&D bases
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District,
 Chongqing City, China.
 All our clients, from home or abroad, are warmly welcome to visit us at anytime!
Q3:What is the material of your products?
A3:The materials are DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.
Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines
Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui people always attach great
 importance to quality controlling from the very beginning to
 the very end. All the molds, the QC measure with three-D
measuring equipments regularly.
