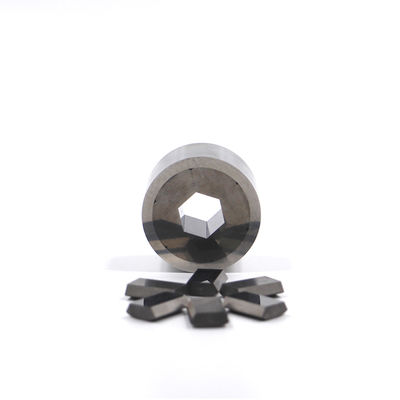

Customized Tungsten Carbide Punches And Dies , Segmented Hex Carbide Die

Basic Information
Place of Origin: Chongqing, China
Brand Name: HH
Certification: ISO9001:2015
Model Number: Customized
Minimum Order Quantity: 1
Price: USD+Negotioned+Pieces
Packaging Details: Cartons, wooden boxes, pallets, packaged according to weight and customer requirements
Delivery Time: 12-15 working days
Payment Terms: T/T, Western Union, Credit Card
Supply Ability: 200 Piece/Pieces per Month Punch Die

Customized Tungsten Carbide Punches And Dies , Segmented Hex Carbide Die





Product Description

Minimum and maximum dimensions:
Holes from 1,0 up to 40 mm, outer dimensions from 10 up to 200 mm, length from 1,0 up to 300 mm.
Mirror polish before and after coating.
Different technologies.
± 0.005 mm tolerances.
Possibility of tooling design.
Mechanical Processing surfaces when it is geometrically possible.



Henghui will choose the suitable carbide materials of products, combined with perfect technology, makes the carbide dies to achieve a better life.Tungsten carbide straight hole dies with the property of high wear resistance, good polishing performance, low friction coefficient, etc.and has very high compressive strength.

Even today, steel mold are still in use due to they're cheap, as tungsten carbide parts tend to cost more up front. The performance benefits that tungsten carbide dies have to offer, however, easily justify their price point.

The primary advantage of tungsten carbide die is strength. Carbide dies, which are notable for offering more satisfactory performance than steel counterparts, tend to last significantly longer, too – even in extreme conditions. Thanks to this durability, our tungsten carbide dies require replacement much less often than typical steel dies, which not only reduces overall maintenance costs, but lessens machine downtime as well.

Customized Tungsten Carbide Punches And Dies , Segmented Hex Carbide Die



We supply for customer including:


Carbide die: 1.Straight hole dies 2.Extrusion dies 3.Segmented Hex Dies 4.Cutter&knife 5. nut die
Tube drawing dies
Cutting&Trimming dies
Thread rolling die
2nd punch
punch pin HSS



Features



• 100% quality guarantee

• Various size for selection

• Professional technical support

• OEM & ODM are welcomed

• Small order is acceptable

• Factory service with competitive service in the market

• Delivery in time

• Flexible payment terms(T/T, western union, etc.)

• Best after-sales service



Equipment & Factory


Quality being vital for an enterprise, high quality products are the powerful weapon to enter into international market. Out of a desire to produce superior products. Henghui company stresses on every particular in process. First-class products and strive to respond to the fierce market competition.



Customized Tungsten Carbide Punches And Dies , Segmented Hex Carbide DieCustomized Tungsten Carbide Punches And Dies , Segmented Hex Carbide Die

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester,Projector,3D Image Measuring Instrument,etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.



Equipment Name Specification(mm) Qty(set) Origin Making
CNC Machining Center MCV-SV1100, 4 Taiwan
Lathe C6132,CS6140 4 Baoji
Hydraulic Press HQS300T 1 Taiwan
Internal and external high-precision grinder M1420 1 Wuxi
Surface Grinder MY820 2 Jiangsu
Cylindric Grinder MA1420A 1 Japan
Clamping Machine HC650 1 Baoji
Sawing Machine GB4028 1 Zhejiang
CNC Milling Machine MVC1000A 1 Taiwan
Milling Machine SL-30 1 Taiwan
CNC Wire-Cut Machine DK7732, DK7780 2 Jiangsu
Grinding Machine K11 5 Zhejiang
EDM Machine EDM320, EDM350 2 Beijing
NC Lathe CK6730 3 Baoji
Driller ZX7016 1 Zhejiang
Cold Heading Machine J64,J84, J104, J134, J165 8 Taiwan
Automatic Lathe --- 4 Taiwan
Cold Forming Machine 11B,14B,17B,22B,24B,27B 6 Taiwan
Heading Machine --- 6 Taiwan







Packaging & Shipping


Usually, we choose the following ways to transport our molds, if you have other options or requirements, we are also welcomed.

Customized Tungsten Carbide Punches And Dies , Segmented Hex Carbide Die





Why Choose Us







Our advantages:

1.High quality
2.Reasonable price
3.On time delivery
4.Good After-sale service
5.Strict quality control



We can offer you:
1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and TRIMMING DIE designs
3.In-time communication on the technical points
4.In-time sending pictures for the die machining progress and die finishing schedule
5.In-time mold test and sample delivery
6.In-time delivery.
