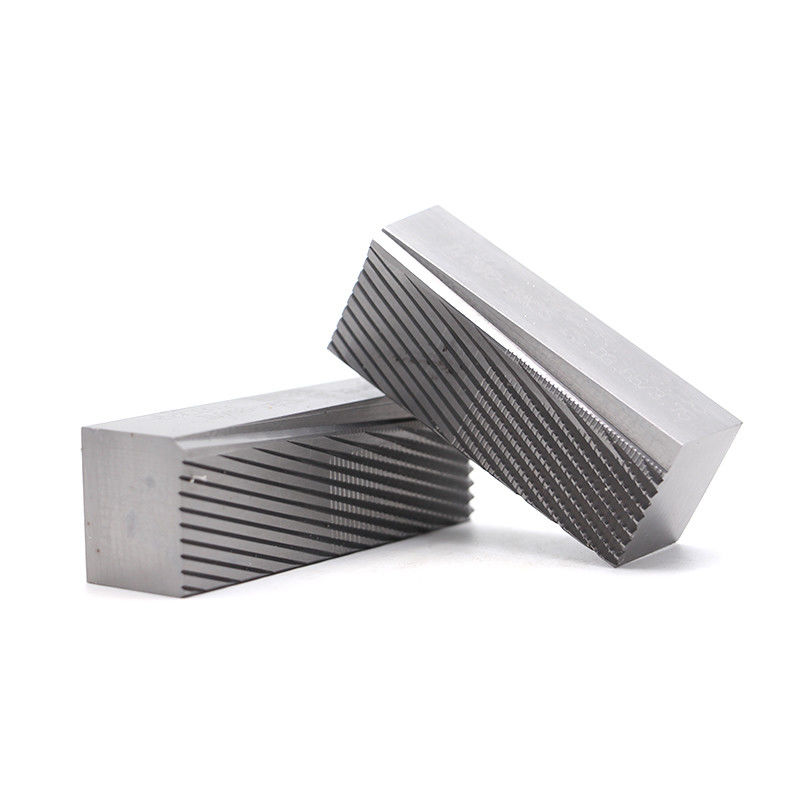

Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies

Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies

H9 TiN Screw Die

Customized Flat Thread Rolling Dies

DC53 Flat Thread Rolling Dies

Place of Origin:

Chongqing

Brand Name:

Henghui

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Application:
Automotive, Aerospace, Electronics
Lead Time:
15-20 Days
MOQ:
1 Piece
Material:
Carbon Steel, Alloy Steel, Stainless Steel
OEM/ODM:
Acceptable
Package:
Wooden Case, Carton Box
Payment Term:
T/T, PayPal, Western Union
Shape:
Round, Square, Hexagonal
Tolerance:
±0.005mm
Drawing Format:
2D/(PDF/CAD)3D(IGES/STEP)
Payment & Shipping Terms
Minimum Order Quantity
1
Price
10-50
Delivery Time
10-30 DAYS
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000
Product Description

High Quality Customized High Speed Steel DC53 H9+TiN Hot Sales Screw Die Of Flat Thread Rolling Dies

Products Description
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 0
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 1
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 2

Material:

Our main case material are DC53+N or H9+N

Size:
Length*Height*thickness(for example, 90/105x25x25mm)

DC53:
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.95
0.89
0.3
0.018
0.006
7.7
1.92
0.75
0.91
MACHINE TYPE
s
H
L1(FIXED)
L2(MOVING)
0
19
25
51
64
3/16
25
25,38, 55
75
90
1/4
25
25,40, 55, 65,80
100
115
5/16
25
25,40, 55, 65,80, 105
127
140
3/8
25
25,40, 55, 65,80, 105
150
165
1/2
35
55, 80, 105, 125,150
190
215
3/4
38
55, 80, 105,125,150
230
265
003
15
20
45
55
004
20
25
65
80
4R
20
25
60
70
6R
25
25, 30, 40, 55
90
105
8R
25
25, 30, 40, 55, 65
108
127
250
25
25, 40, 55
110
125
DR125
20.8
25, 40
73.3
86.2 (5.)
DR200
20.8
25, 40, 53
92.3
105.2 (53)
DR250
23.8
25, 40, 54
112
131.2 (Í)
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 3

* Long life of the thread rolling die

Henghui is specialized in the making of screw thread rolling dies, made of best raw materials available in the market. These screw thread rolling dies are designed professionally by our engineers per customers’ specifications or work pieces. Each staff tries try his best to have screw thread rolling dies with high accuracy, high strength and high stability by high skills and strict quality control system.Therefore the screw thread rolling dies life is longer than dies produced by other companies based on the same materials and the same price or even lower price.
Henghui manufacture thread rolling dies taking the needs of our customers very much into account. The range of thread rolling dies covers most of threading machines on the market. Likewise, we cover all kinds of screw threads.
We also manufacture custom thread rolling dies to customer specifications. You can see examples of different designs and shapes in the product details page.
Furthermore, we advise our customers in choosing the type of thread rolling die that best suits their needs. You can send your technical inquiries to us, and we will be in touch within 24 hours to offer you the best solution.
Process
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 4


Factory
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 5
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 6
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 7
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 8

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Exhibition
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 9
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
Packing and Delivering
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 10
Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.
Inspection equipment
Customized High Speed Steel DC53 H9+TiN Screw Die Of Flat Thread Rolling Dies 11
FAQ
Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.
