Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies

tungsten carbide wire drawing dies

tc die

Place of Origin:

Chongqing, China (Mainland)

Brand Name:

Henghui Screw Punch Die

Certification:

ISO9001:2015

Model Number:

OEM

Contact Us

Request A Quote
Product Details
Shaping Mode:
Punching Mold
Product Material:
Steel
Product:
Vehicle Mould
Product Name:
Main Die
Material:
Carbide, H13
Size:
Customized
Tolerance:
0.01mm
Service:
OEM/ODM Customized
Usage:
For Bolts, Screws Making
Surface Treatment:
Polishing
Product Keywords:
Cold Heading Die
Port:
SHANGHAI,GUANGZHOU,CHONGQING,Or According To Customer Requirements
Payment & Shipping Terms
Minimum Order Quantity
1 Piece/Pieces
Price
US $30-80 / Pieces
Packaging Details
carton, according to customer requirements.
Supply Ability
500 Piece/Pieces per Month
Product Description

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies

Products Description

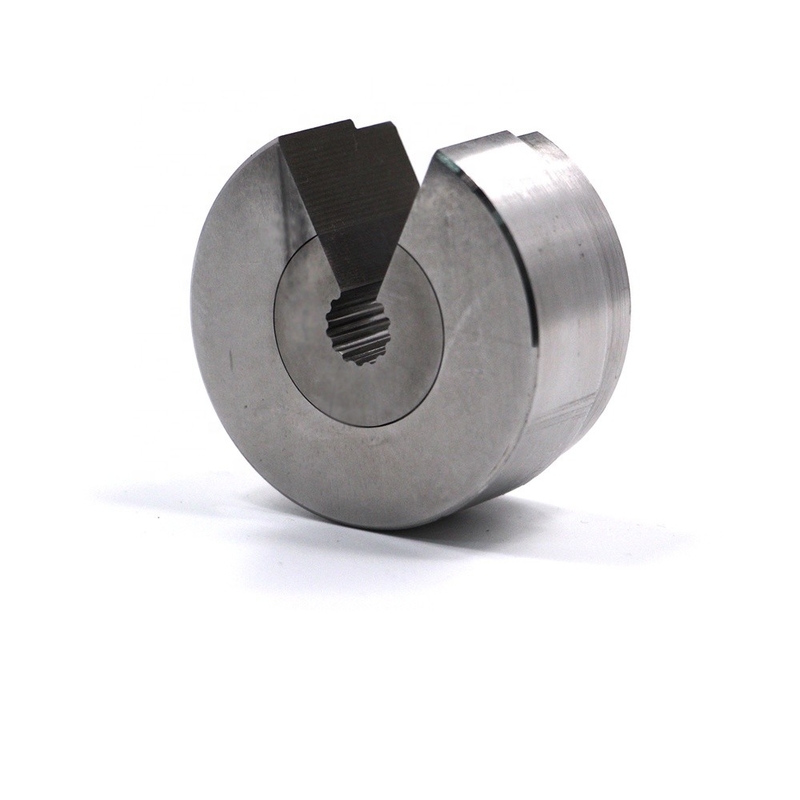

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 0

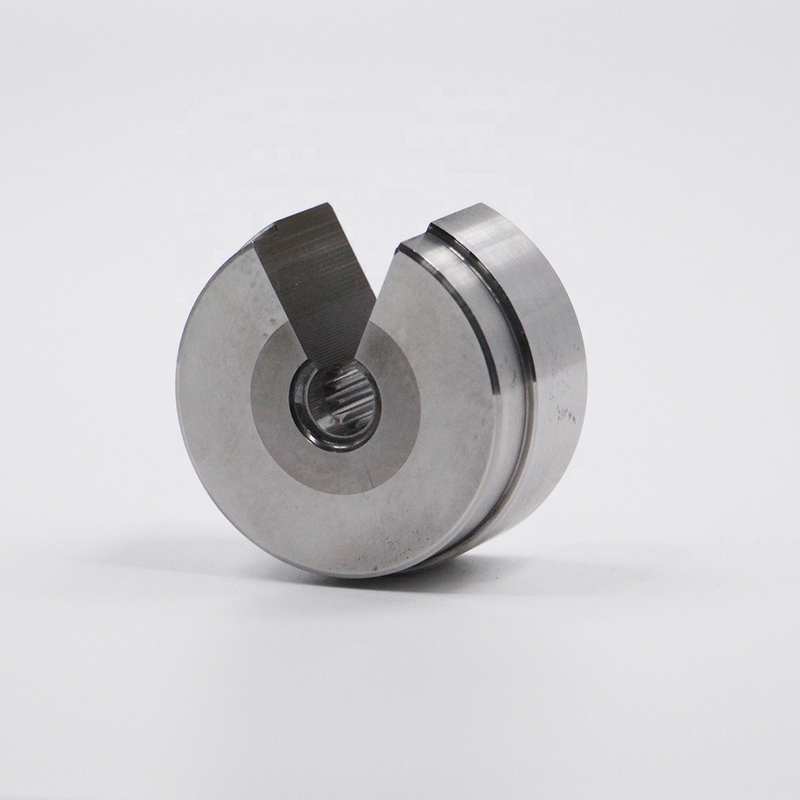

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 1

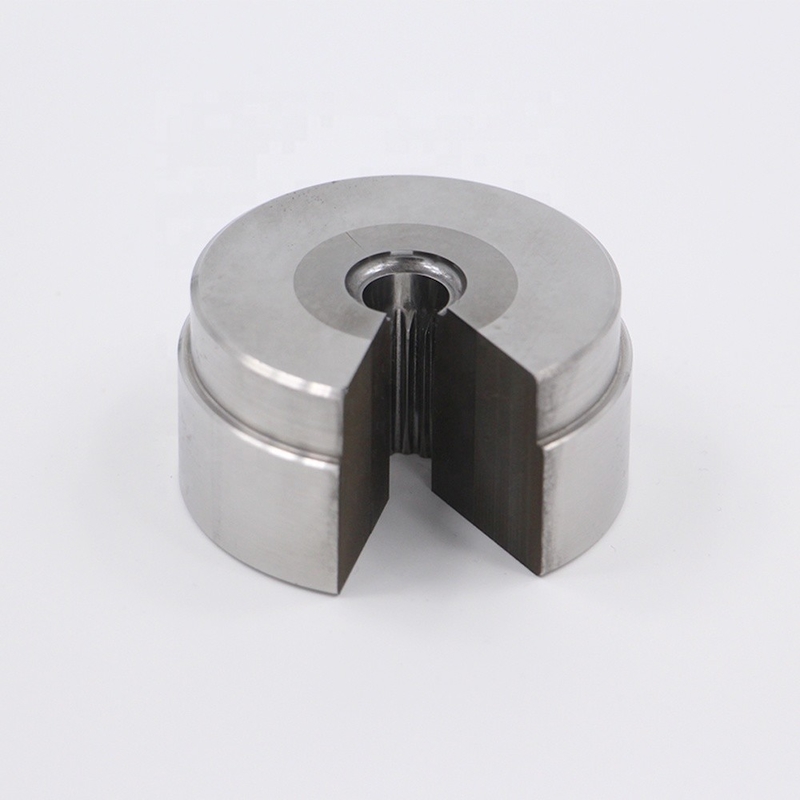

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 2

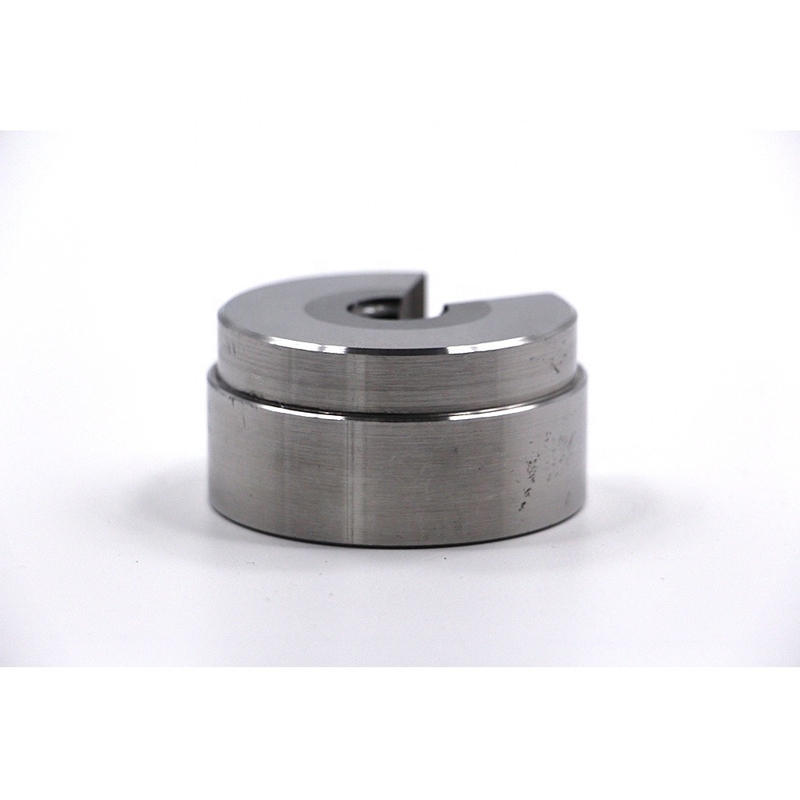

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 3




Insert Material:
We can suggest different carbide material according to different usage.




Item

Co

Grain Size

Density

Hardness

TRS

Impact Strength

Application

Mediun-Grained



Co%

μm

g/cm²

HRA

Kgf/mm²

Kgf/m-cm²



KG2

6.50%

2~3

14.90

90.5

320

0.28

Drawing die

KG3

9%

2~3

14.61

89.3

340

0.52

Extrusion die

KG5

12%

2~3

14.31

88.3

340

0.58

Extrusion die

KG6

14%

2~3

14.12

87.3

320

0.65

Extrusion die

Coarse-Grained

ST6

15%

3~6

13.80

86.0

270

0.78

Stainless steel

ST7

20%

2~6

13.40

85.3

270

0.80

Stainless steel

EA65

18%

2~6

13.73

85.0

300

0.80

Carbon steel screw/cutting die

VA80

20%

3~6

13.58

84.0

280

0.85

Impact resistance

VA90

22%

6~9

13.39

82.5

240

0.90

Impact resistance

EA90

24%

2~6

13.22

82.8

270

0.90

Impact resistance





Case Material:
Our main case material is H13(SKD61) HRC46-48


SKD61(H13)

















Chemical Composition

C

Si

Mn

P

S

Cr

Mo

V

W

Content (%)

0.39

1.15

0.44

0.021

0.007

5.12

1.3

0.94

0.06



Cu

Ni

















0.05

0.06



















Surface Treatment:
TiN / TiAlN

Process

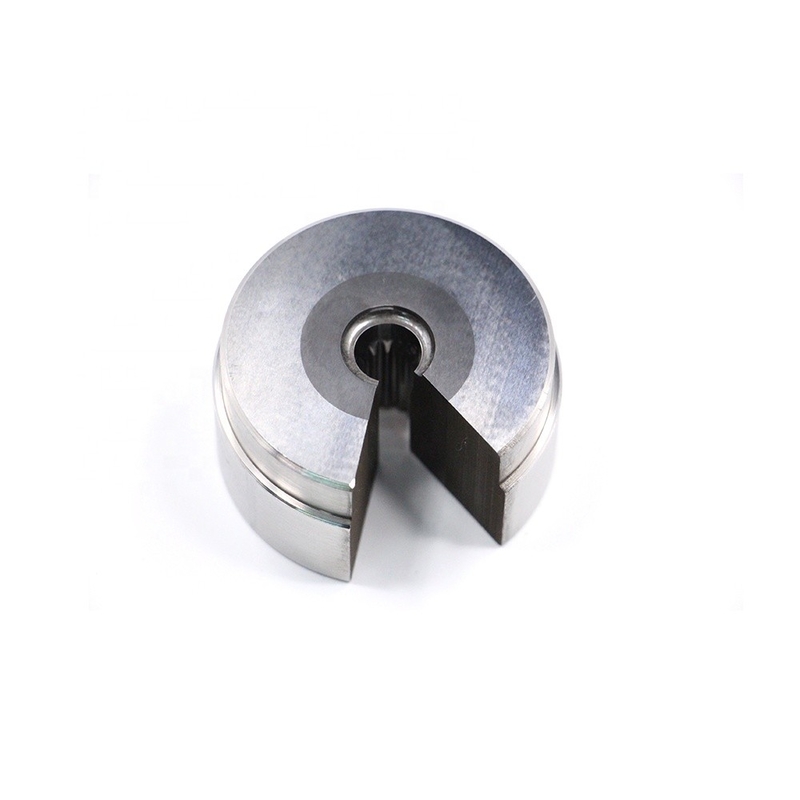

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 4

Factory


Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 5


Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 6

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 7

Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 8




About Us
Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition


Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 9
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering


Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 10
Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment


Perfect Quality Tungsten Screw die High precision Mirror polishing Main Dies 11

FAQ

Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.
