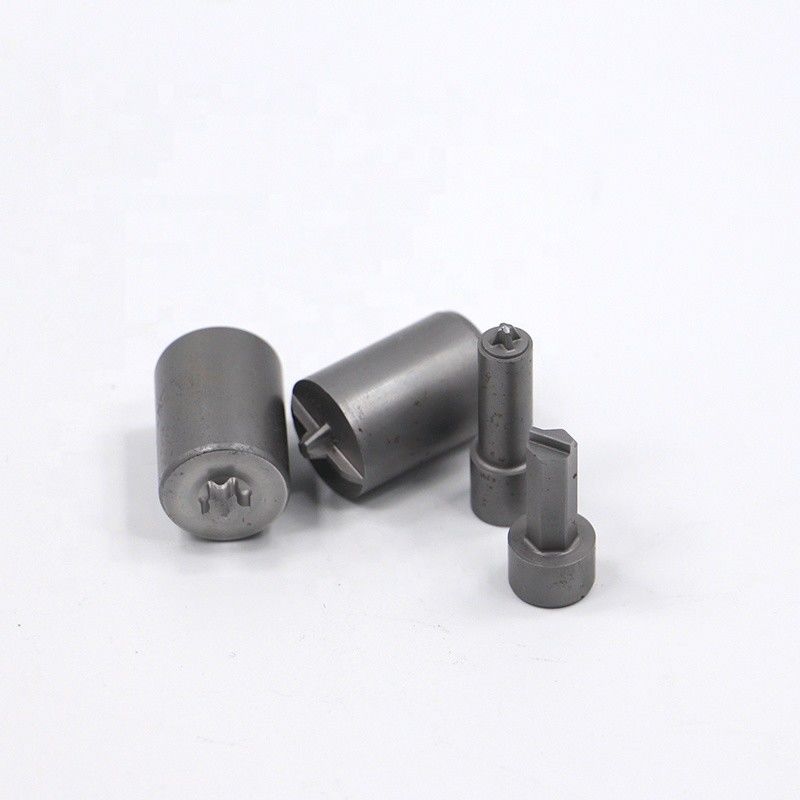

Yellow Color Second Screw Punch JIS / ANSI / DIN / ISO / BS / GB / NON Standard

Yellow Color Second Screw Punch JIS / ANSI / DIN / ISO / BS / GB / NON Standard

hexagon punch pin

second header punch

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Certification:

ISO9001:2015

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Product Name:
PUNCH
Material:
M42 M2 SKH
Usage:
Head
Surface Treatment:
Plating
Product Material:
SUS
Port:
SHANGHAI,GUANGZHOU,NINGBO, Or According To The Customer's Request.
Payment & Shipping Terms
Minimum Order Quantity
50 Piece/Pieces
Price
USD+Negotioned+Pieces
Packaging Details
According to the customer's request.
Delivery Time
8-15 days
Payment Terms
Western Union, T/T
Supply Ability
50000 Piece/Pieces per Month
Product Description

Yellow Color Second Screw Punch JIS / ANSI / DIN / ISO / BS / GB / NON Standard

The coating about the screw header punch: without coating, with TIN coating-yellow coated, with TILAN coating-black coated
The standard size: 12x25mm, 14x25mm, 18x25mm, 23x25mm

Product Description

Please specify the details of header punches as follows when you inquire or order:
1. The material of header punches you need or the material of screw you used;
2. The specification of standard you use, for examples: JIS, ANSI or DIN;
3. Screw Application: Machine Screw , Tapping Screw , Wood Screw or any others;
4. Head Style: Flat head , Pan head , Truss head , Binding head or any others;
5. Nominal Size: JIS-M20, M23; ANSI-#4, #8; DIN-M30, M35;
6. Recess Driver: Phillips , Slot, Phillips and Slot Combination, Pozi ect;
7. Dimension : 12x25, 14x25, 18x25, 23x25;
8. Coated : Plian , TIN Coated , TILAN Coated.
Header punch standard:
JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square, square/slot , Phillips/square, triangle and so on .
The coating about the screw header punch:
Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated
The standard size:
12x25mm
14x25mm
18x25mm
23x25mm
The unit weight about the header punch:
12x25mm: 25g/pc
14x25mm: 30g/pc
18x25mm: 50g/pc
23x25mm: 80g/pc

Yellow Color Second Screw Punch JIS / ANSI / DIN / ISO / BS / GB / NON Standard 0

After-Sales Service

  Please open it and check all the items as soon as possible when you receive the packages, if there is any damage or mistake, tell us please, we will exchange or replace for you within two weeks (don’t let it more than two weeks ).
   Customer satisfaction is the most important to us.  if you have any problem,  please feel free to contact with us!

Equipment & Factory

  Quality being vital for an enterprise, high quality products are the powerful weapon to enter into international market. Out of a desire to produce superior products. Henghui company stresses on every particular in process. First-class products and strive to respond to the fierce market competition.

Yellow Color Second Screw Punch JIS / ANSI / DIN / ISO / BS / GB / NON Standard 1

Yellow Color Second Screw Punch JIS / ANSI / DIN / ISO / BS / GB / NON Standard 2

  Chongqing  Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester,Projector,3D Image Measuring Instrument,etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision  molds  for  customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm.  Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Packaging & Shipping

  Usually, we choose the following ways to transport our molds, if you have other options or requirements, we are also welcomed.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory, Henghui has 7,00 square meters of manufacturing plants and R&D bases
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District, Chongqing City, China. All our clients, from home or abroad, are warmly welcome to visit us at anytime!
Q3:What is the material of your products?
A3:The material is carbide and high speed steel,like VA80,G6,ST7,DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.
Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines
Q5::How does your factory do regarding quality control?
A5: Quality is priority. we having gained ISO 9001 Quality Authentication Certificate.
