|Place of Origin:||Chongqing, China|
|Minimum Order Quantity:||1|
|Packaging Details:||Cartons, wooden boxes, pallets, packaged according to weight and customer requirements|
|Delivery Time:||12-15 working days|
|Payment Terms:||T/T, Western Union, Credit Card|
|Supply Ability:||100000 Piece/Pieces per Month|
|Product Name:||Cutting Trimming Die Coated With TiN For Various Screws||Material:||M2/M35/M42/HSS|
|Mould Material:||Steel||Size:||Customized Size|
die cutting dies,
trimming extrusion die,
HSS Tungsten Carbide Die

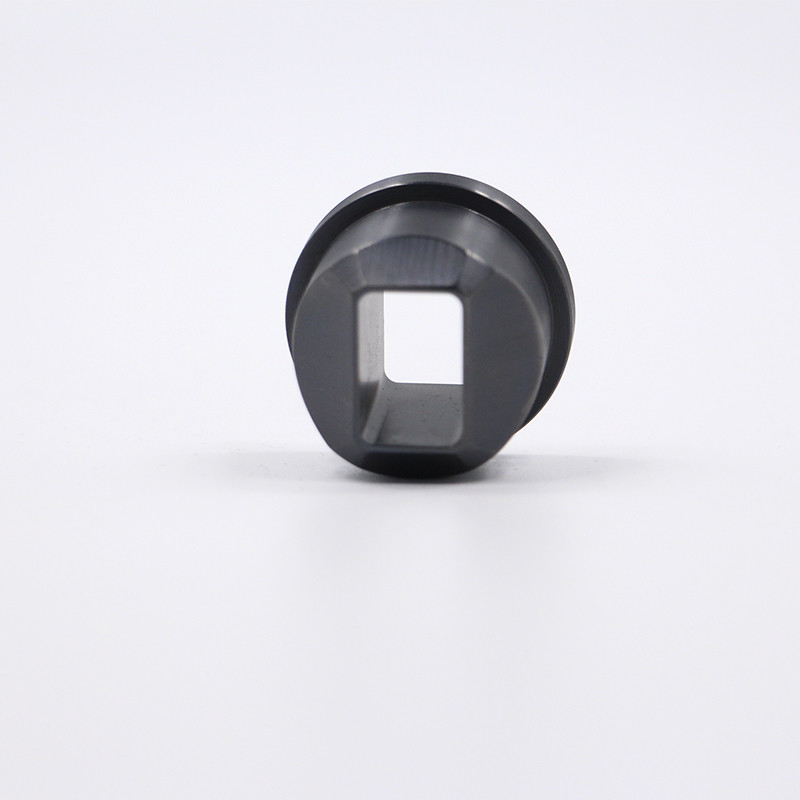

One of the screw-formed tools, trimming die is used to form the head of screw. Square, hexagon and octangle are the common trimming die types.
Trimming die is used to making hex head or square head bolt to form the head shape. There are many kinds of material for choice like M2 or M35 etc. In order to extend the lifetime, surface Tin/TiALN-coated is considerable.
Trimming dies are promptly used in industry to trim the heads of bolts & screws of different shapes by removing distorted, undesirable angular part and sizes of high precision. It leads to create innovative product of perfect sizes and precision without having process of unnecessary resizing that wastes not only money but time also leaving behind more wastage. We are highly in making these kind of high tech dies of best performance with very low and competitive rate.
The manufacture of cutting and trimming dies with different profiles is carried on high precision grinding centres, high-speed machining centres, wire and electrode EDM and CNC lathes for hard lathing (steel and carbide) based on Henghui’s technology. The technical department will help selecting the most suitable steel or carbide tool for the material to be cut.
Please indicate the diameter & height and across flat when inquire or order. Or you can send us the drawing.
Advice on carbide and steel grades for different applications.
Perfect tangent radius.
Mechanical Processing surfaces when it is geometrically possible.
Large number of shapes with very high geometric complexity.
Coating, the most suitable for the materials to be cut.
Mirror polishing before and after coating.
± 0.005 mm tolerances.
Why Choose Us:
The global demand for fasteners is constantly increasing, driven by the strong global economy and a steady growth especially in the construction, aerospace, automotive and white goods markets. The broad and versatile scope of application for fasteners and fixings continues to create opportunities for manufacturers and suppliers of these technologies. With ever changing requirements and advancements in various industry sectors, new business opportunities are opening for the future. So Henghui participated in many international exhibitions.
Fastener Fair Istanbul Turkey 2018
Usually, we choose the following ways to transport our molds, if you have other options or requirements, we are also welcomed.
According to the quantity of the order, about 12-15 days.
