Screw Mold With Material Of KG6 The Carbide Die Cutting Knife

Screw Mold With Material Of KG6 The Carbide Die Cutting Knife

hex segmented die

screw die

ODM Cutting Knife Die

Place of Origin:

Chongqing, China (Mainland)

Brand Name:

Henghui

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Shaping Mode:
Forging Mould
Product Material:
Steel
Product:
Fastener
Product Name:
Sharp And Stainless Steel Cutting Knife Die
Material:
Steel
Design Software:
CAD
Surface Treatment:
Polishing
Mould Life:
250000-300000shots
Size:
Customized Size
Service:
OEM ODM
Packaging:
Standard Packaging
MOQ:
1 Piece
Port:
Shanghai, Shenzhen, Chongqing
Payment & Shipping Terms
Minimum Order Quantity
1 Piece/Pieces
Price
US $50-60 / Pieces
Packaging Details
Carton box or wooden box.
Supply Ability
100000 Piece/Pieces per Month
Product Description

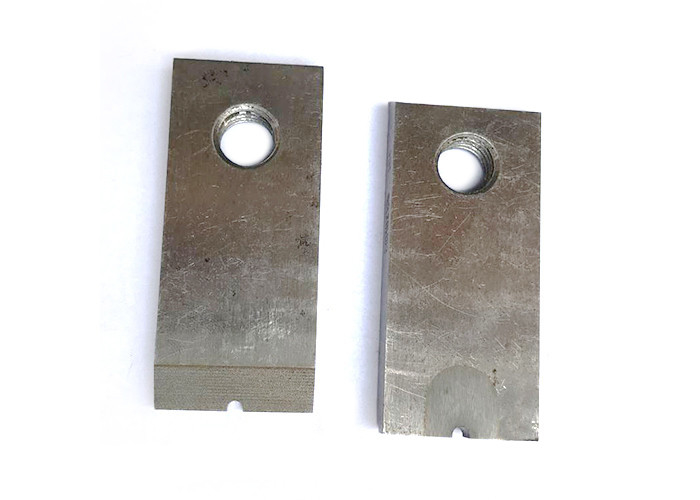

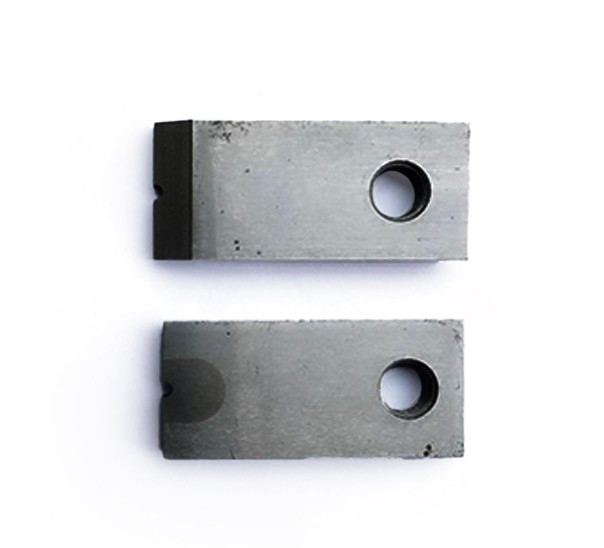

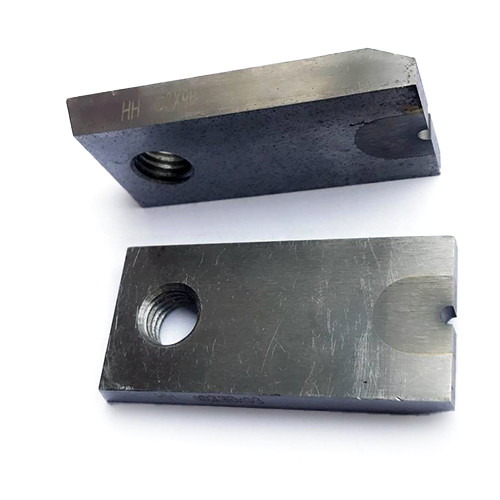

Sharp and stainless steel cutting knife die

Product Description
  •  Cut off knives are hard to determine the minimum and maximum dimensions. Please send me your detailed requirements or drawings

Cutting knife for high quality raw materials

Cutting knife for the rich production experience

Cutting knife for advanced process equipment

Cutting knife for reliable quality assurance

   Until the mid-1900s, most precision wear parts were made of steel. Even today, steel parts are still in use due to their affordability, as tungsten carbide parts tend to cost more up front. The performance benefits that tungsten carbide dies have to offer, however, easily justify their price point.

  The primary advantage of tungsten carbide is its strength. Endurance Carbide’s tungsten carbide dies, which are notable for offering more satisfactory performance than their steel counterparts, tend to last significantly longer, too – even in extreme conditions. Thanks to this durability, our tungsten carbide dies require replacement much less often than typical steel dies, which not only reduces overall maintenance costs, but lessens machine downtime as well.

  Henghui will according to your product demand suggest Cutting knife's tungsten steel grades, or according to your requirements.Screw Mold With Material Of KG6 The Carbide Die Cutting Knife 0



Screw Mold With Material Of KG6 The Carbide Die Cutting Knife 2

Insert Material:
We can suggest different carbide material according to different usage.




Item

Co

Grain Size

Density

Hardness

TRS

Impact Strength

Application

Mediun-Grained



Co%

μm

g/cm²

HRA

Kgf/mm²

Kgf/m-cm²



KG2

6.50%

2~3

14.90

90.5

320

0.28

Drawing die

KG3

9%

2~3

14.61

89.3

340

0.52

Extrusion die

KG5

12%

2~3

14.31

88.3

340

0.58

Extrusion die

KG6

14%

2~3

14.12

87.3

320

0.65

Extrusion die

Coarse-Grained

ST6

15%

3~6

13.80

86.0

270

0.78

Stainless steel

ST7

20%

2~6

13.40

85.3

270

0.80

Stainless steel

EA65

18%

2~6

13.73

85.0

300

0.80

Carbon steel screw/cutting die

VA80

20%

3~6

13.58

84.0

280

0.85

Impact resistance

VA90

22%

6~9

13.39

82.5

240

0.90

Impact resistance

EA90

24%

2~6

13.22

82.8

270

0.90

Impact resistance





Case Material:
Our main case material is H13(SKD61) HRC46-48


SKD61(H13)

















Chemical Composition

C

Si

Mn

P

S

Cr

Mo

V

W

Content (%)

0.39

1.15

0.44

0.021

0.007

5.12

1.3

0.94

0.06



Cu

Ni

















0.05

0.06
















Features



• 100% quality guarantee

• Various size for selection

• Professional technical support

• OEM & ODM are welcomed

• Small order is acceptable

• Factory service with competitive service in the market

• Delivery in time

• Flexible payment terms(T/T, western union, etc.)

• Best after-sales service

Our Services



Our advantages

 1.High quality

 2.Reasonable price

 3.On time delivery

 4.Good After-sale service

 5.Strict quality control

 6.All the Knife Cutting Die  are automotic.

We will offer you

 1.In-time response on letters, telephone calls or fax

 2.In-time supply the quotation and Knife Cutting Die  designs

 3.In-time communication on the technical points

 4.In-time sending pictures for the Knife Cutting Die   machining  progress and Knife Cutting Die  finishing schedule

 5.In-time Knife Cutting Die  test and sample delivery

 6.In-time Knife Cutting Die  delivery.

Company Information

 Chongqing  Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester,Projector,3D Image Measuring Instrument,etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision  molds  for  customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm.  Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
