Chongqing HH Tungsten Carbide Wire Drawing Die High Precision

Basic Information
Place of Origin: Chongqing, China
Brand Name: Henghui
Certification: ISO9001:2015
Model Number: Customized
Minimum Order Quantity: 1
Price: USD+Negotioned+Pieces
Packaging Details: Cartons, wooden boxes, pallets, packaged according to weight and customer requirements
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, Credit Card, MoneyGram
Supply Ability: 5000 Piece/Pieces per Month
Shaping Mode: Metals Come About Plastic Deformation While Drawing Product Material: Tungsten Carbide And Mold Steel, Copper Alloys, Aluminum Alloys, Irons And Steel Alloys
Product: Drawing Of Wire, Rod, Bar, And Tube. Shaping: Round,Hexagon,Square,Rectangle, Custom Shapes
Case Material: Tungsten Carbide And Mold Steel Usage: Metals Come About Plastic Deformation While Drawing
Size: D 0.8 ~ D 80 (mm) Precision: 0.01 Mm
Business Type: Manufacture Service: OEM
Port: Chongqing, Shanghai Or As To Buyer's Requirements
High Light:

tungsten carbide wire drawing dies

,

tc die

,

OEM Carbide Wire Drawing Die

China Supplier High Quality Carbide Wire Drawing Die





Product show:

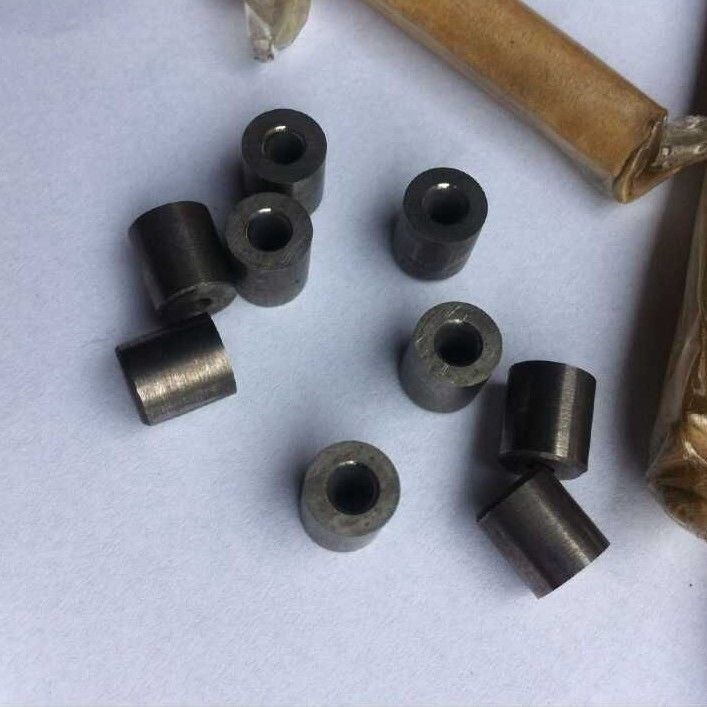

Chongqing HH Tungsten Carbide Wire Drawing Die High Precision 0



Product Description:


1. Structure of dies:

The hole of the wire drawing dies is made up of four parts:

•Lubricating area of the entry: There is an arc to make the wires enters to the workaround conveniently.



•The workaround: The metals come about plastic deformation while drawing, the cross section of the metals is compressed and reduced.



•Diameter fixed district: to guarantee the size and form accurate and even, lengthen the service life of the die.



•Wire outlet area: wire outlet terminal can prevent scuffing and break-up when the machine is stopped.

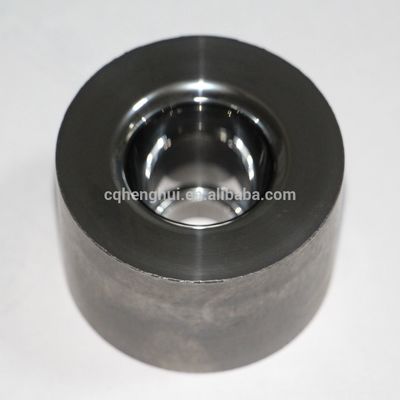

Chongqing HH Tungsten Carbide Wire Drawing Die High Precision 1



2. The production and delivery will take 15 days.

the whole set of dies can guarantee drawing 30000tons of copper wires. It can reduce the copper powder in the course of drawing. The surface of finished wires is smooth without any defect. After the dies drawing copper wires of 30000 tons, it will not be damaged, but it needs to safeguard, maintain, and polish.



3.Applications:



Drawing dies are typically used in the drawing of wire, rod, bar, and tube. The materials that are drawn are typically copper alloys, aluminum alloys, and steel alloys.



4.Configurations:



Round Drawing Dies

Hexagon Drawing Dies

Square Drawing Dies

Rectangle Drawing Dies

Custom Shapes



Drawing Dies Parameters(unit: mm)



Hole SizeΦd

Hole Size
Tolerance

Ovality

Casing
ΦD×H

Φ0.501~0.750

≤0.0030

≤0.0020

Φ30×10

Φ0.751~1.50

≤0.0035

≤0.0025

Φ37×12

Φ1.501~2.00

≤0.0050

≤0.0030

Φ37×12

Φ2.001~3.00

≤0.0070

≤0.0050

Φ41×20

Φ3.001~4.60

≤0.010

≤0.0080

Φ41×20

Φ4.601~8.00

≤0.015

≤0.012

Φ41×24



  Chongqing HH Tungsten Carbide Wire Drawing Die High Precision 2
