Cold Hot Forging Tungsten Carbide Dies Straight Hole Die VA80 Material

Cold Hot Forging Tungsten Carbide Dies Straight Hole Die VA80 Material
Cold Hot Forging Tungsten Carbide Dies Straight Hole Die VA80 Material Cold Hot Forging Tungsten Carbide Dies Straight Hole Die VA80 Material Cold Hot Forging Tungsten Carbide Dies Straight Hole Die VA80 Material
Basic Information
Place of Origin: Chongqing
Brand Name: Henghui
Certification: ISO9001:2015
Model Number: Customized
Minimum Order Quantity: 1 piece
Price: USD 50-100 PIECE
Packaging Details: Carton or wooden box
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs 1 month
Contact Now
Product Name: Cold Hot Forging Tungsten Carbide Die Straight Hole Die VA80 Material Shaping Mode: Die Casting, Punching Mold, Extrusion Mould, Plastic Injection Mould, Compression Mould
Material: Tungsten Carbide Application: Forging Machine
Surface Treatment: Polishing Design Software: CAD
High Light:

tungsten carbide drawing dies

,

tungsten carbide wire drawing dies

,

Hot Forging Tungsten Carbide Dies



Cold Hot Forging Tungsten Carbide Die Straight Hole Die VA80 Material

Product Description

  Cemented carbide die is one of the steel dies. It is made of alloy materials with high strength and hardness, corrosion resistance, wear resistance and high temperature resistance, which is far longer than the service life of ordinary steel dies. It is a popular die in modern machinery industry. The common ones are cold heading die, drawing die, cold punching die, hexagon die, spiral die, etc

Product Name
Tungsten carbide die
Drawing
Auto CAD/DWG/PDF ect
Tolerance
±0.002mm
Hardness
65-90
Mould size
As customer's requirments
Certificate
ISO 9001:2015
Surface Tratement
Polishing or according to your parts
Precision Machining
CNC/ODM/OEM
Steel Material
SKD11/ YG15/SKH-9/ Tungsten Carbide ect
Mould Life
Depends on the steel material and your request

Tungsten Steel Die Process


I. Classification by Process Nature


(1) the blanking die separates the material along the closed or open contour line. Such as blanking die, punching die, cutting die, cutting die, cutting die, cutting die and so on.

(2) the bending die makes the blank or other blank produce bending deformation along the straight line (bending curve), so as to obtain a certain angle and shape of the workpiece mold.

(3) the drawing die is a die which can make blank into open hollow part or make hollow part change shape and size further.

(4) the forming die is a kind of die which can directly copy the blank or semi-finished workpiece according to the shape of the convex and concave die, while the material itself only produces local plastic deformation. Such as bulging die, necking die, expanding die, rolling forming die, flanging die, shaping die, etc.


II. By Process Combination


(1) The single process die only completes one stamping process in one stroke of the press.

(2) The compound die has only one working position. In one stroke of the press, two or more stamping processes are completed at the same working position at the same time.

(3) Progressive die (also called continuous die) has two or more working positions in the feeding direction of the blank. In one stroke of the press, two or more stamping processes are completed on different working positions one by one.

Product Show

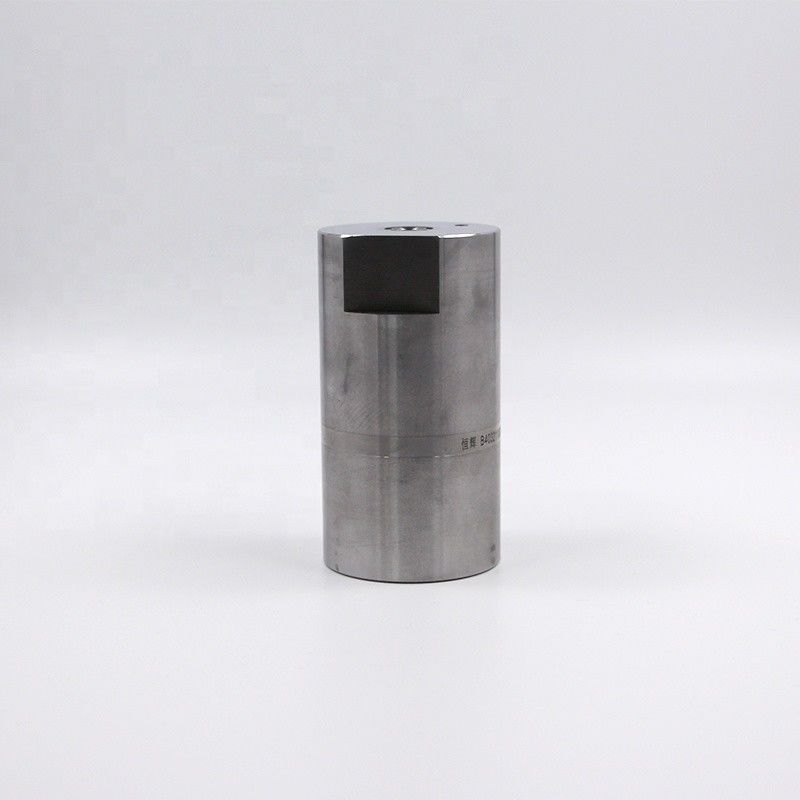

Cold Hot Forging Tungsten Carbide Dies Straight Hole Die VA80 Material 0

Other Related Components

1. Straight hole dies.
2. Extrusion Dies.
3. Segmented dies.
4. Cutter & Knife.
5. Nut dies, Tube drawing dies.
6. Cutting & Trimming dies. Thread rolling dies.
7. Header punch, punch pin HSS.
