Home > products > Screw Second Punch >
TiN TiALN Coating HSS M2 M42 Screw Header Second Punch

TiN TiALN Coating HSS M2 M42 Screw Header Second Punch

M42 Screw Header Second Punch

M2 Screw Header Second Punch

HSS screw header punch

Place of Origin:

China

Brand Name:

Henghui

Certification:

ISO9001:2015

Model Number:

standard

Contact Us

Request A Quote
TiN TiALN Coating HSS M2 M42 Screw Header Second Punch
TiN TiALN Coating HSS M2 M42 Screw Header Second Punch TiN TiALN Coating HSS M2 M42 Screw Header Second Punch TiN TiALN Coating HSS M2 M42 Screw Header Second Punch TiN TiALN Coating HSS M2 M42 Screw Header Second Punch TiN TiALN Coating HSS M2 M42 Screw Header Second Punch
Product Details
Name:
TiN/TiALN HSS M2/M42 Screw Head Forming Die Header Second Punch
Dimension:
12*25, 14*25, 18*25, 23*25
Key Word:
Header Punch
Coating:
TiN Or TiALN
Color:
Yellow Or Black
Certificatation:
ISO9001:2015
Payment & Shipping Terms
Minimum Order Quantity
30 pieces
Price
$2-$5 for one piece
Packaging Details
Carton case
Delivery Time
7-15 days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
10000 pieces one month
RELATED PRODUCTS
Good price Phillips Screw Second Punch Header Coating TIN TiALN Hex Square Six - Lobe online

Phillips Screw Second Punch Header Coating TIN TiALN Hex Square Six - Lobe

Get Best Price
Good price Factory Wholesale Tin Coating HSS Second Punch Case For Making Screw online Video

Factory Wholesale Tin Coating HSS Second Punch Case For Making Screw

Get Best Price
Good price M2+TIN Phillips And Other Types Header Punch Screw Second Punch online Video

M2+TIN Phillips And Other Types Header Punch Screw Second Punch

Get Best Price
Good price High Precision M2 M42 TiN/TiCN Coating Screw Second Punch For Screw Processing online

High Precision M2 M42 TiN/TiCN Coating Screw Second Punch For Screw Processing

Get Best Price
Contact Us
86-23-60338218-60338218
sales3@citool.com
86-023-60338218-60338218
Contact Now
Product Description

TiN/TiALN HSS M2/M42 Screw Head Forming Die Header Second Punch

Parameter:

size
12*25
14*25
18*25
23*25
as your request
PVD
TiN(yellow)
TiALN(black)
TiCN
CrN
WC/C
head type
flat
binding
pan
round
others as your request
driver
phillips
slotted
pozidriv
six-lobe
others as your request
standard
ANSI
JIS
DIN
ISO
BS, GB
After TiN, the friction coefficient of the second punch is reduced and the hardness of the is increased.The types of titanium layer are usually TIN, TICN, TIALN, ALCRN, etc

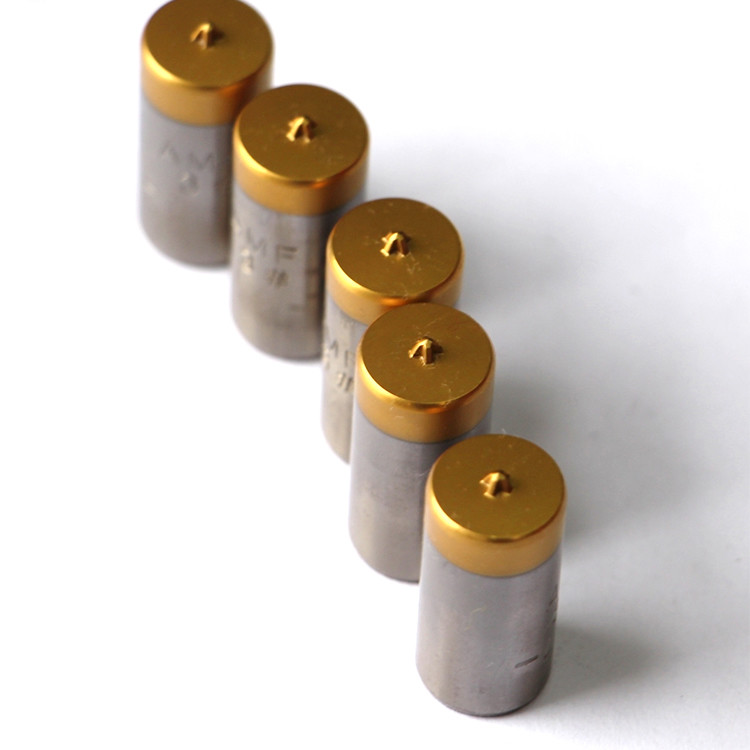

Product show:

TiN TiALN Coating HSS M2 M42 Screw Header Second Punch 0
TiN TiALN Coating HSS M2 M42 Screw Header Second Punch 1

Header punch standard:
JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square, square/slot , Phillips/square, triangle and so on .
The coating about the screw header punch:
Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated
The standard size:
12x25mm
14x25mm
18x25mm
23x25mm
The unit weight about the header punch:
12x25mm: 25g/pc
14x25mm: 30g/pc
18x25mm: 50g/pc
23x25mm: 80g/pc

The DIN 7982 phillips header punch second punch could forming the head of the screw. We could make All the sizes and the shrapes of them. Please just tell us the size or send us customized drawings!

We also make other sizes of second header punches for our customers all around the world. Welcome contact us to get more information about our high quality molds for making screws, bolts or nuts.

We supply for customer including:
Carbide die: 1.Straight hole dies 2.Extrusion dies
3.Segmented Hex Dies 4.Cutter&knife 5. nut die
Tube drawing dies
Cutting&Trimming dies
Thread rolling die
2nd punch
punch pin HSS
Exhibition

The global demand for fasteners is constantly increasing, driven by the strong global economy and a steady growth especially in the construction, aerospace, automotive and white goods markets. The broad and versatile scope of application for fasteners and fixings continues to create opportunities for manufacturers and suppliers of these technologies. With ever changing requirements and advancements in various industry sectors, new business opportunities are opening for the future. So Henghui participated in many international exhibitions.


Packing & Delivery:

TiN TiALN Coating HSS M2 M42 Screw Header Second Punch 2TiN TiALN Coating HSS M2 M42 Screw Header Second Punch 3

The following ways are the usual ways chosen to ship our fasteners forming mould, while any other choices or
requirements are also welcomed.

TiN TiALN Coating HSS M2 M42 Screw Header Second Punch 4
