| Place of Origin: | China |
|---|---|
| Brand Name: | Henghui |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 50 - 80 Piece |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 Pieces 1 Month |
| Material: | VA80, ST7, ST6, KG5, KG6 | Size: | Customer Size Accepted,Various Size |
|---|---|---|---|
| Standard: | DIN, ANSI, GB, ISO, JIS, GOST Etc. | Surface Treatment: | Polishing |
| Mould Life: | Long Life Time | Usage: | For Making Screws, Bolts Or Nuts |
| Tolerance: | 0.02mm -0.05mm | Delivery Time: | 20-35 Days |

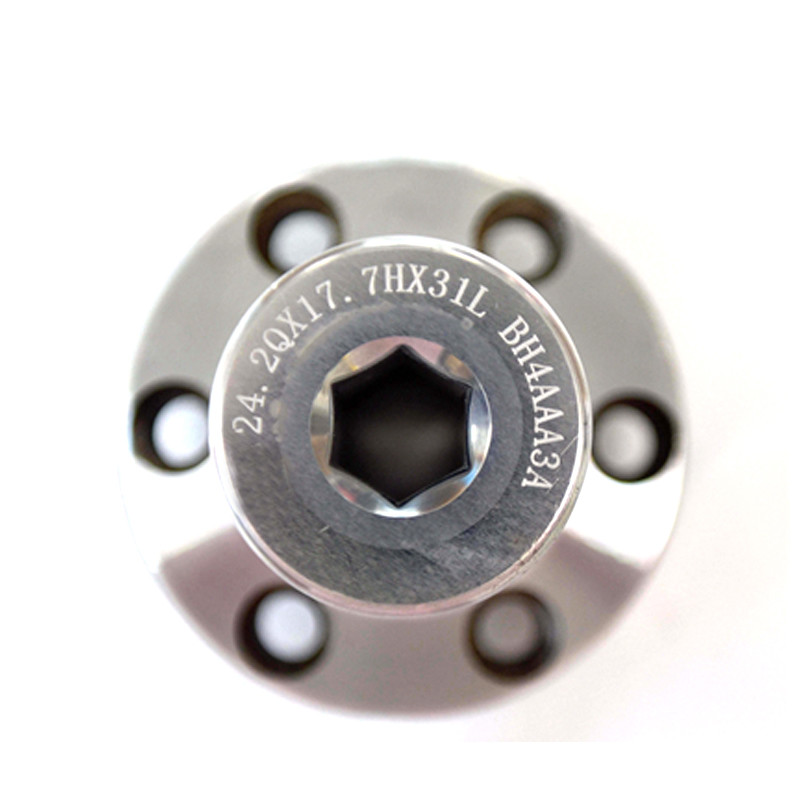

| High Light: | VA80 Extruder Screw Die,Tungsten Nut Forging Die,Tungsten Extruder Screw Die |
||
| SKD61(H13) | |||||||||
| Chemical Composition | C | Si | Mn | P | S | Cr | Mo | V | W |
| Content (%) | 0.39 | 1.15 | 0.44 | 0.021 | 0.007 | 5.12 | 1.3 | 0.94 | 5.74 |
| Cu | Ni | ||||||||
| 0.05 | 0.06 | ||||||||
| Item | Co | Grain Size | Density | Hardness | TRS | Impact Strength | Application | |
| Mediun-Grained | Co% | μm | g/cm² | HRA | Kgf/mm² | Kgf/m-cm² | ||
| KG2 | 6.50% | 2~3 | 14.90 | 90.5 | 320 | 0.28 | Drawing die | |
| KG3 | 9% | 2~3 | 14.61 | 89.3 | 340 | 0.52 | Extrusion die | |
| KG5 | 12% | 2~3 | 14.31 | 88.3 | 340 | 0.58 | Extrusion die | |
| KG6 | 14% | 2~3 | 14.12 | 87.3 | 320 | 0.65 | Extrusion die | |
| Coarse-Grained | ST6 | 15% | 3~6 | 13.80 | 86.0 | 270 | 0.78 | Stainless steel |
| ST7 | 20% | 2~6 | 13.40 | 85.3 | 270 | 0.80 | Stainless steel | |
| EA65 | 18% | 2~6 | 13.73 | 85.0 | 300 | 0.80 | Carbon steel screw/cutting die | |
| VA80 | 20% | 3~6 | 13.58 | 84.0 | 280 | 0.85 | Impact resistance | |
| VA90 | 22% | 6~9 | 13.39 | 82.5 | 240 | 0.90 | Impact resistance | |
| EA90 | 24% | 2~6 | 13.22 | 82.8 | 270 | 0.90 | Impact resistance |
About Us:
Chongqing Henghui Precision Mold Co., Ltd. is a manufacturer of all kind of molds (including EJECTOR PINS SKD61 and other kinds of molds), hardware fasteners and motorcycle & vehicle parts with well-equipped testing facilities and strong technical force. Because of good quality, reasonable prices and stylish designs, our products are extensively used in molding and other industries. We understand productivity, timeliness, quality and cost efficiency are so crucial to the bottom-line of your business and we are here in Henghui to help. We provide ideal and unique solution to your special needs as we know every business is different.
