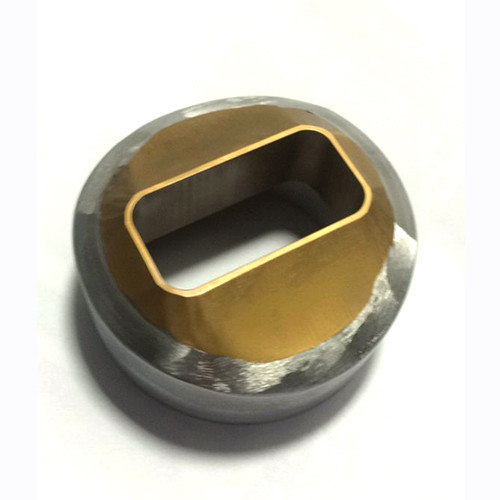

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size
Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size
Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size
Basic Information
Place of Origin: china
Brand Name: Henghui
Certification: //
Model Number: customize
Minimum Order Quantity: 100
Price: usd 20-30 piece
Packaging Details: wood carton box
Delivery Time: 20-25days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Pieces per Month
Contact Now
Product Name: High Quality Customized Cermet Drawing Die / Trimming Die Product Material: Metal,
Mould Life: 250000-300000shots Size: According To Your Drawing
Service: ODM OEM Drawing Format: 2D/(PDF/CAD)3D(IGES/STEP)
Keyword: Trimming /Cutting Die Packing: Strong Carton
High Light:

Hexagonal Trimming Cutting Die

,

Corrosion Resistant Trimming Cutting Die

,

Metal Hexagonal Trimming Die

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size

Products Description


Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 0

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 1

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 2







Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 3
Advice on carbide and steel grades for different applications.
Perfect tangent radius.
Mechanical Processing surfaces when it is geometrically possible.
Large number of shapes with very high geometric complexity.
Coating, the most suitable for the materials to be cut.
Mirror polishing before and after coating.
± 0.005 mm tolerances.
Competitive prices.




Material:
Our main case material : M2, M42


M42(SKH59)

Chemical Composition

C

Si

Mn

P

S

Cr

Mo

V

W

Content (%)

1.06

0.3

0.31

0.018

0.002

3.74

9.29

1.1

1.34



Cu

Ni

Co















0.07

0.29

7.97















M2(H9)

Chemical Composition

C

Si

Mn

P

S

Cr

Mo

V

W

Content (%)

0.85

0.33

0.34

0.027

0.005

4.12

4.73

1.78

5.74



Cu

Ni

















0.12

0.24



















Surface Treatment:
PVC


Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 4

* One of the screw-formed tools, trimming die is used to form the head of screw. Square, hexagon and octangle are the common trimming die types.
* Trimming die is used to making hex head or square head bolt to form the head shape. There are many kinds of material for choice like M2 or M35 etc. In order to extend the lifetime, surface Tin/TiALN-coated is considerable.
* Trimming dies are promptly used in industry to trim the heads of bolts & screws of different shapes by removing distorted, undesirable angular part and sizes of high precision. It leads to create innovative product of perfect sizes and precision without having process of unnecessary resizing that wastes not only money but time also leaving behind more wastage. We are highly in making these kind of high tech dies of best performance with very low and competitive rate.
* The manufacture of cutting and trimming dies with different profiles is carried on high precision grinding centres, high-speed machining centres, wire and electrode EDM and CNC lathes for hard lathing (steel and carbide) based on Henghui’s technology. The technical department will help selecting the most suitable steel or carbide tool for the material to be cut.

Please indicate the diameter & height and across flat when inquire or order. Or you can send us the drawing.

Company Profie

Chongqing Henghui Precision Mold Co., Ltd located in Chongqing, which is specialized in developing, production and sales of various tungsten carbide dies manufacturer. All our products are made from high-precision manufacturing equipment and testing equipment. Using advanced processing technology to ensure products’ precision. At the same time, we also have technical engineers with many years of professional design experience, a group of experienced technical and quality inspection personnel, implemented the ISO 9001 quality management system and ERP system management. Our products and services cover the Asian market in China and are exported to Europe, America and Southeast Asia. Our carbide die have a reputation for precision, efficiency, stability and durability. We have a customer service experienced sales staff to provide customers with more attentive service and create more value.

Factory


Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 5


Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 6

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 7

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 8




About Us
Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester,Projector,3D Image Measuring Instrument,etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition


Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 9





Fasteners Exhibition in Mexico


Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 10







Fasteners Exhibition In Russia

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 11




Fasteners exhibition in Turkey

Packing & Delivery


Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 12

Corrosion Resistance Shaped Hexagonal Trimming Cutting Die With Various Size 13

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Our Advantages




Advantages
1.High quality
2.Reasonable price
3.On time delivery
4.Good After-sale service
5.Strict quality control




We will offer you
1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and mold designs
3.In-time communication on the technical points
4.In-time sending pictures for the mold machining progress and mold finishing
schedule
5.In-time mold test and sample delivery
