High Toughness Screw Die Carbide Die Shear Die Mold Polished

High Toughness Screw Die Carbide Die Shear Die Mold Polished

Polished Shear Die

Screw Shear Die

Screws Making Carbide Die

Place of Origin:

Chongqing

Brand Name:

Henghui

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Product Name:
Screw Die Carbide Die Shear Die
Material:
Carbide, H13
Tolerance:
+/-0.01mm
Service:
OEM/ODM Customized
Application:
For Bolts&screws Making
Surface Treatment:
Polish
Drawing Format:
2D/(PDF/CAD)3D(IGES/STEP)
Model Number:
OEM
Payment & Shipping Terms
Minimum Order Quantity
1
Price
10-100
Delivery Time
10-30 DAYS
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000
Product Description

High Quality High Toughness Screw Die Carbide Die Shear Die Mold Polished



Products Description

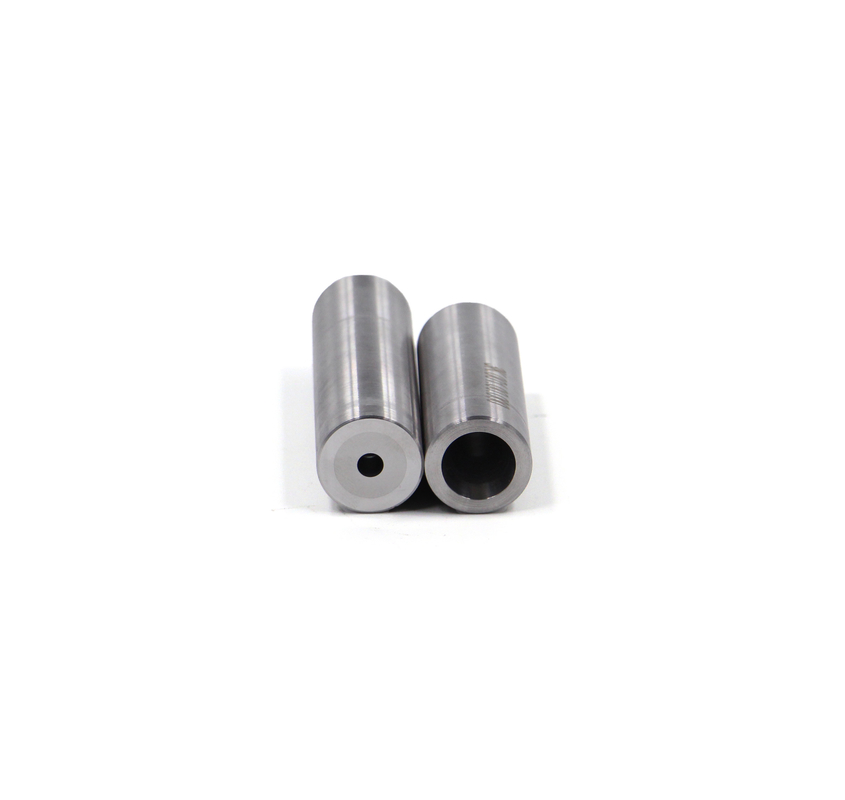

High Toughness Screw Die Carbide Die Shear Die Mold Polished 0

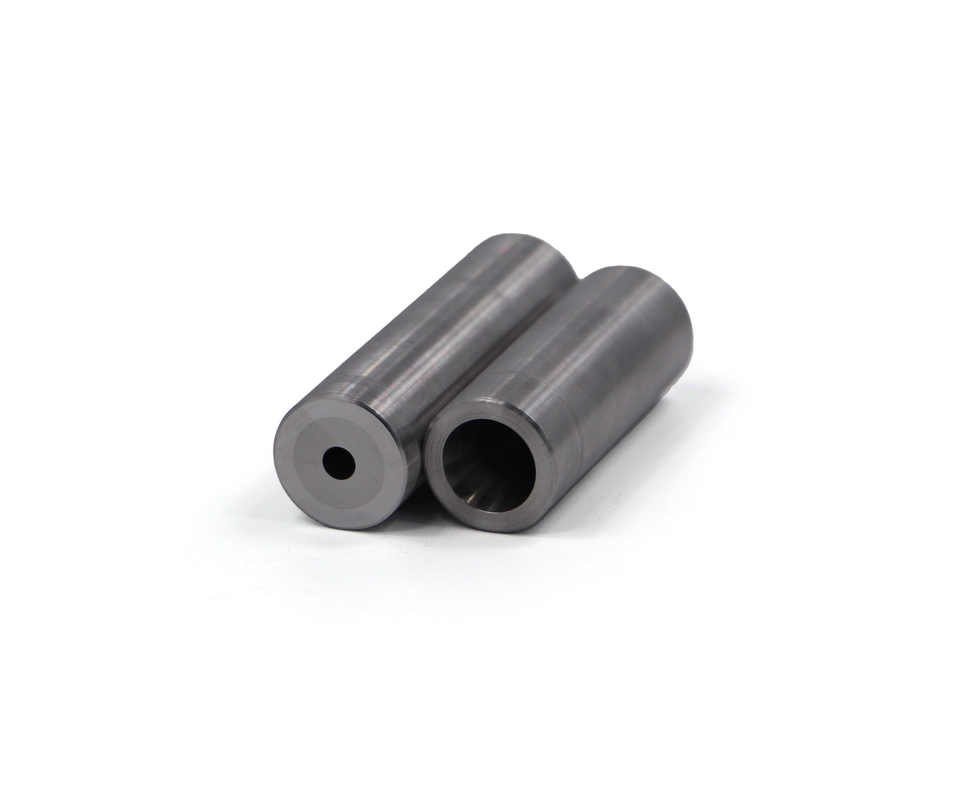

High Toughness Screw Die Carbide Die Shear Die Mold Polished 1

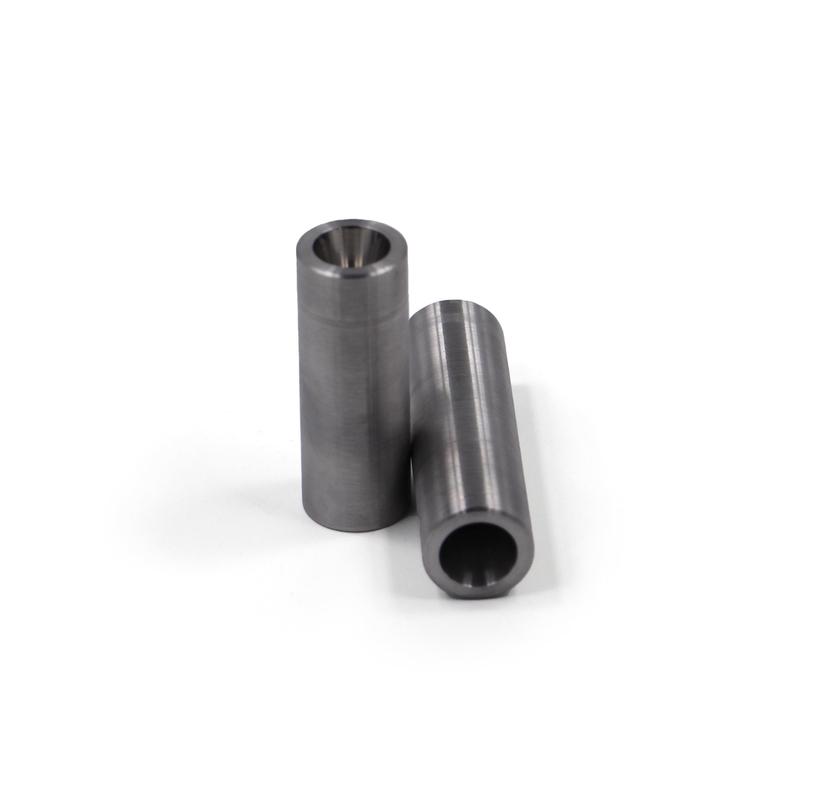

High Toughness Screw Die Carbide Die Shear Die Mold Polished 2

Insert Material:

We can suggest different carbide material according to different usage.

Item
Co
Grain Size
Density
Hardness
TRS
Impact Strength
Application
Mediun-Grained

Co%
μm
g/cm²
HRA
Kgf/mm²
Kgf/m-cm²

KG2
6.50%
2~3
14.90
90.5
320
0.28
Drawing die
KG3
9%
2~3
14.61
89.3
340
0.52
Extrusion die
KG5
12%
2~3
14.31
88.3
340
0.58
Extrusion die
KG6
14%
2~3
14.12
87.3
320
0.65
Extrusion die
Coarse-Grained
ST6
15%
3~6
13.80
86.0
270
0.78
Stainless steel
ST7
20%
2~6
13.40
85.3
270
0.80
Stainless steel
EA65
18%
2~6
13.73
85.0
300
0.80
Carbon steel screw/cutting die
VA80
20%
3~6
13.58
84.0
280
0.85
Impact resistance
VA90
22%
6~9
13.39
82.5
240
0.90
Impact resistance
EA90
24%
2~6
13.22
82.8
270
0.90
Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48
SKD61(H13)








Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.39
1.15
0.44
0.021
0.007
5.12
1.3
0.94
0.06

Cu
Ni








0.05
0.06








Surface Treatment:

TiN / TiAlN
Process

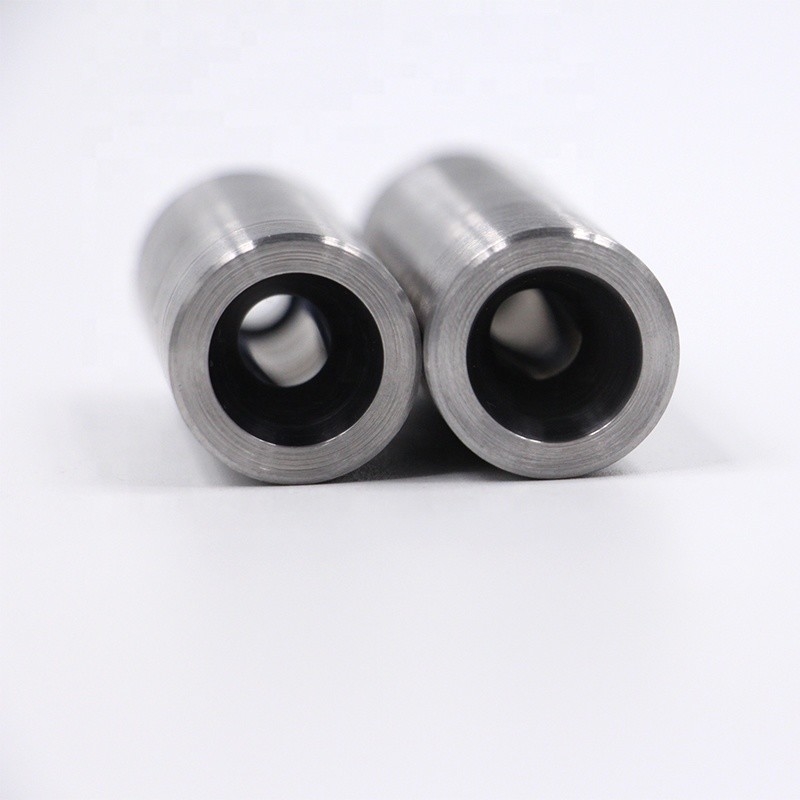

High Toughness Screw Die Carbide Die Shear Die Mold Polished 3

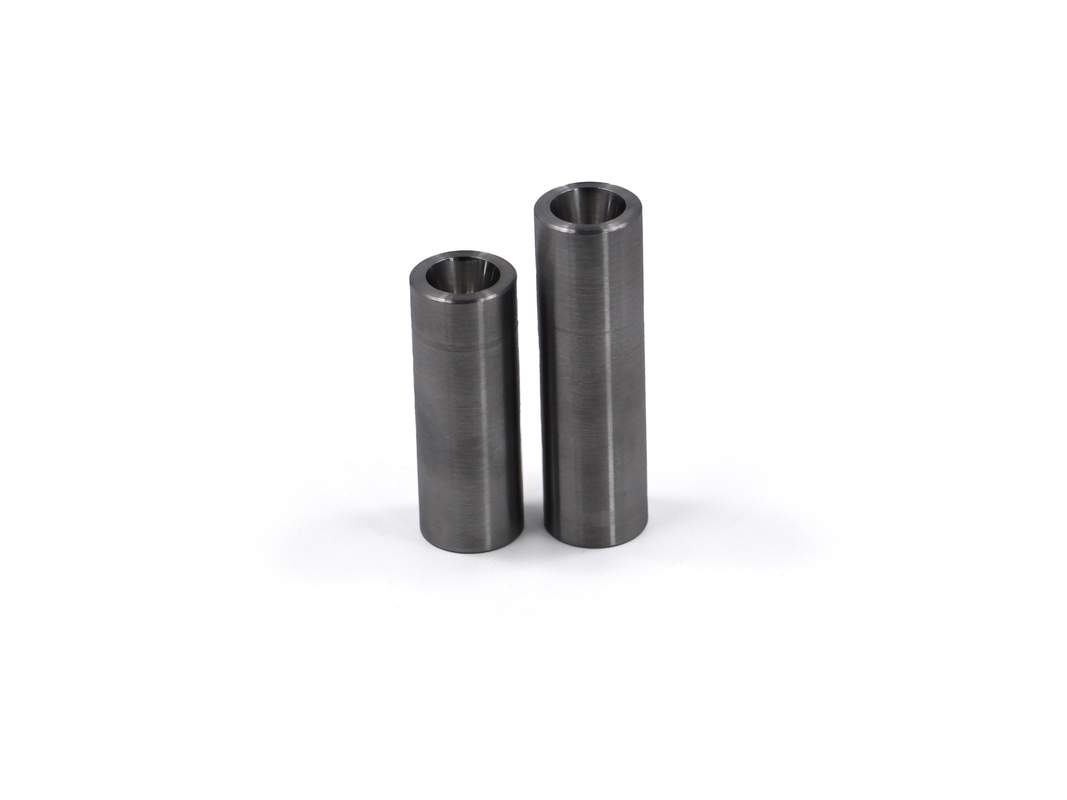

High Toughness Screw Die Carbide Die Shear Die Mold Polished 4
High Toughness Screw Die Carbide Die Shear Die Mold Polished 5
High Toughness Screw Die Carbide Die Shear Die Mold Polished 6
High Toughness Screw Die Carbide Die Shear Die Mold Polished 7
High Toughness Screw Die Carbide Die Shear Die Mold Polished 8
High Toughness Screw Die Carbide Die Shear Die Mold Polished 9
High Toughness Screw Die Carbide Die Shear Die Mold Polished 10
High Toughness Screw Die Carbide Die Shear Die Mold Polished 11
