Ejector Punch Pin HSS M2 M35 M42 Reliable Quality DIN Hex Head Punch

Ejector Punch Pin HSS M2 M35 M42 Reliable Quality DIN Hex Head Punch

DIN Hex Head HSS Punch Pin

M2 M35 M42 HSS Punch Pin

Reliable Quality HSS Punch Pin

Place of Origin:

China, Chongqing

Brand Name:

Henghui

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Product Name:
Ejector Punch Pin
Material:
Die Steel And Cemented Carbide
Application:
Injection Molding Parts
Case Material:
H13, SKD61, Or As Client's Requirements
Size:
Customized Size
Tolerance:
0.01-0.05mm
Service:
OEM\ODM
Keyword:
PINS
Payment & Shipping Terms
Minimum Order Quantity
10 pieces
Price
usd 5-10 pieces
Packaging Details
Wooden box for Circular Screwing Die; export standard package for Circular Screwing Die, or as client's requirement for EJECTOR PINS SKD61 .
Delivery Time
20-25 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000 pieces per Month
Product Description

Ejector Punch Pin M2 M35 M42 Reliable Quality DIN Hex Head Punch

Products Description

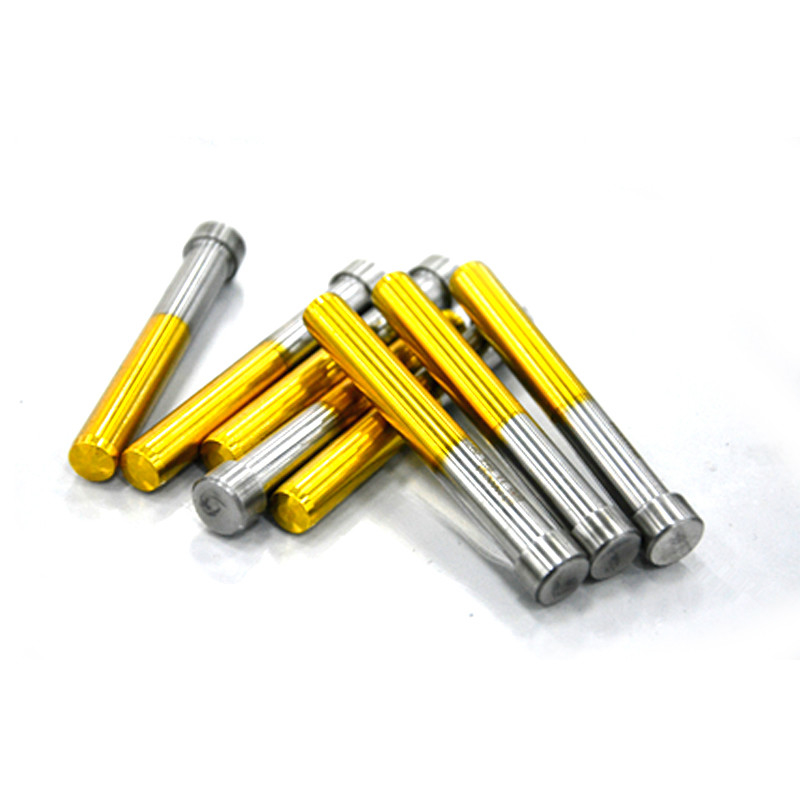

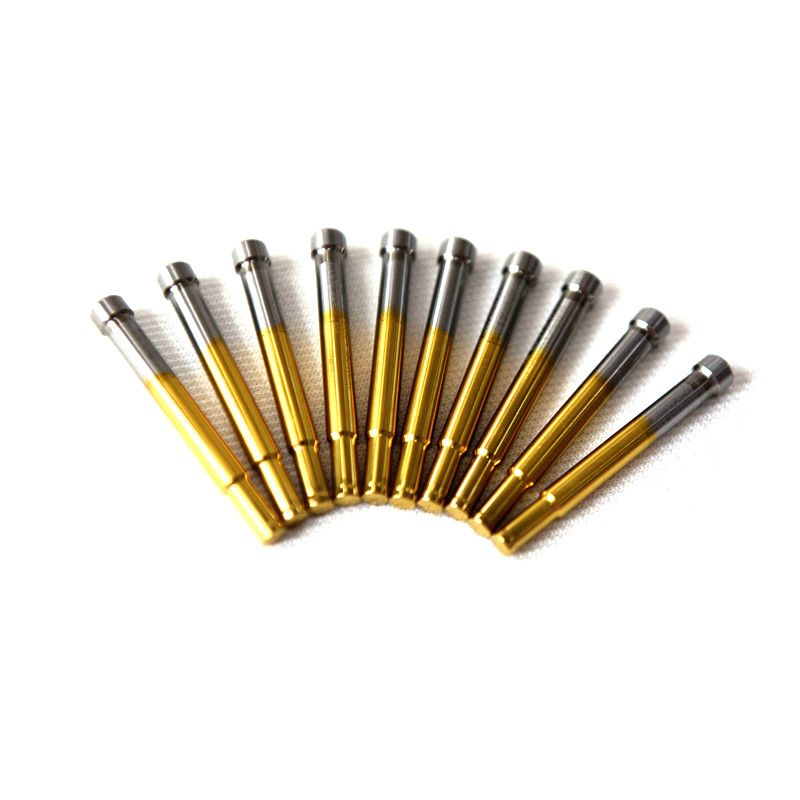

Ejector Punch Pin HSS M2 M35 M42 Reliable Quality DIN Hex Head Punch 0Ejector Punch Pin HSS M2 M35 M42 Reliable Quality DIN Hex Head Punch 1



The material selection of the punch pin is mainly high-speed steel. The commonly used materials are SKH9, SKH55, SKH59 in Japan, M2, M35 and M42 in the United States. The main feature of the material is that the high-speed punching material can maintain good red hardness and wear resistance. There are also some powder high speed steel materials, commonly used are ASP23, ASP30, ASP60. The performance of the material is superior to that of high-speed steel, but the price is high and the range of use is relatively small. Tungsten carbide punch pins are new products that can be produced by a few companies this year. They are mainly made of tungsten carbide. They have high toughness requirements for materials, and the technical requirements and production costs during production are also high. They are commonly used in the stainless steel cold heading industry.



Material: Carbide>M42(H59)>M35(H55)>M2(H9)

H9(M2)
Chemical Composition C Si Mn P S Cr Mo V W
Content (%) 0.85 0.33 0.34 0.027 0.005 4.12 4.73 1.78 5.74
  Cu Ni
  0.12 0.24





M42(SKH59)
Chemical Composition C Si Mn P S Cr Mo V W
Content (%) 1.06 0.3 0.31 0.018 0.002 3.74 9.29 1.1 1.34
  Cu Ni Co
  0.07 0.29 7.79




Product Name: HSS Punch Pin
Material: M2/M42/M35/Carbide
Profile tolerance: +/-0.006MM~ +/-0.008MM.
Surface treatment: Polishing,coating Treatment,Nitriding treatment,measuring,ETC..
Hardness HRA60-68
Measuring instruments: VMS,profile projector,pressure gauge,hardness tester,magnifying glass.etc...
Usage For making bolts or nuts
Design: Standard or un-standard parts,according to customer's requirement.
Processing machinery: Wire EDM, CNC milling and turning, laser cutting, drilling, grinding, bending, stamping, welding, etc.
Drawing software: AUTOCAD,pro-engineer,UG,moldflow,etc..
Application: machinery equipment,Heavy industries parts&tools,medicine,chemical,etc...
Quality control: 100% inspection before shipping.
Customization: OEM ODM service





About Us:

Chongqing Henghui Precision Mold Co., Ltd located in Chongqing, which is specialized in developing, production and sales of various tungsten carbide dies manufacturer. All our products are made from high-precision manufacturing equipment and testing equipment. Using advanced processing technology to ensure products’ precision. At the same time, we also have technical engineers with many years of professional design experience, a group of experienced technical and quality inspection personnel, implemented the ISO 9001 quality management system and ERP system management.

Our products and services cover the Asian market in China and are exported to Europe, America and Southeast Asia. Our carbide die have a reputation for precision, efficiency, stability and durability. We have a customer service experienced sales staff to provide customers with more attentive service and create more value.


Advantages:

1.High quality
2.Reasonable price
3.On time delivery
4.In-time sending pictures for the mold machining progress and mold finishing
schedule
5.In-time mold test and sample delivery

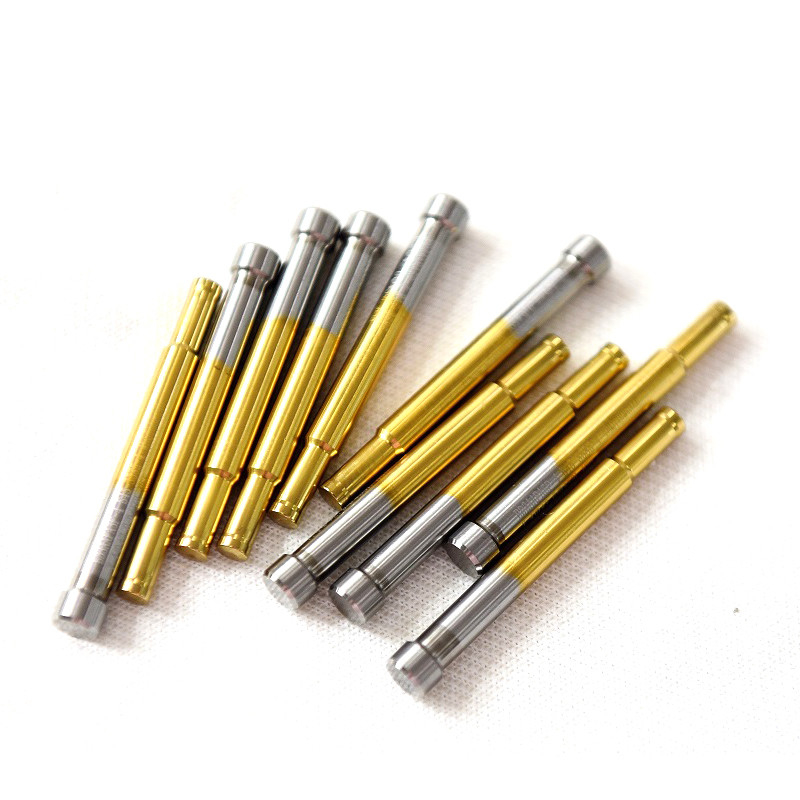

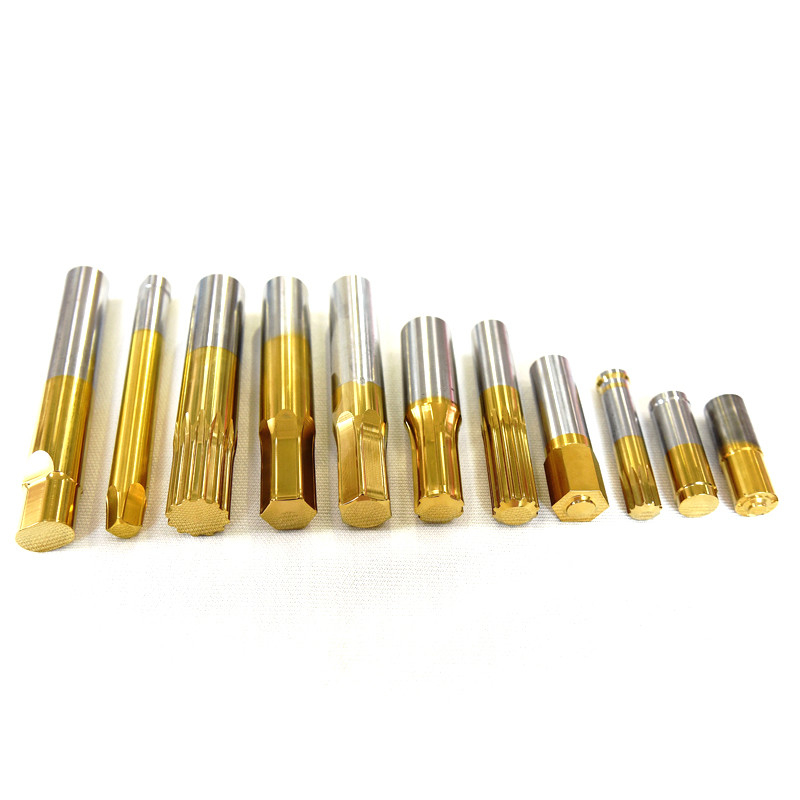

Ejector Punch Pin HSS M2 M35 M42 Reliable Quality DIN Hex Head Punch 2Ejector Punch Pin HSS M2 M35 M42 Reliable Quality DIN Hex Head Punch 3


Packing and Delivering:

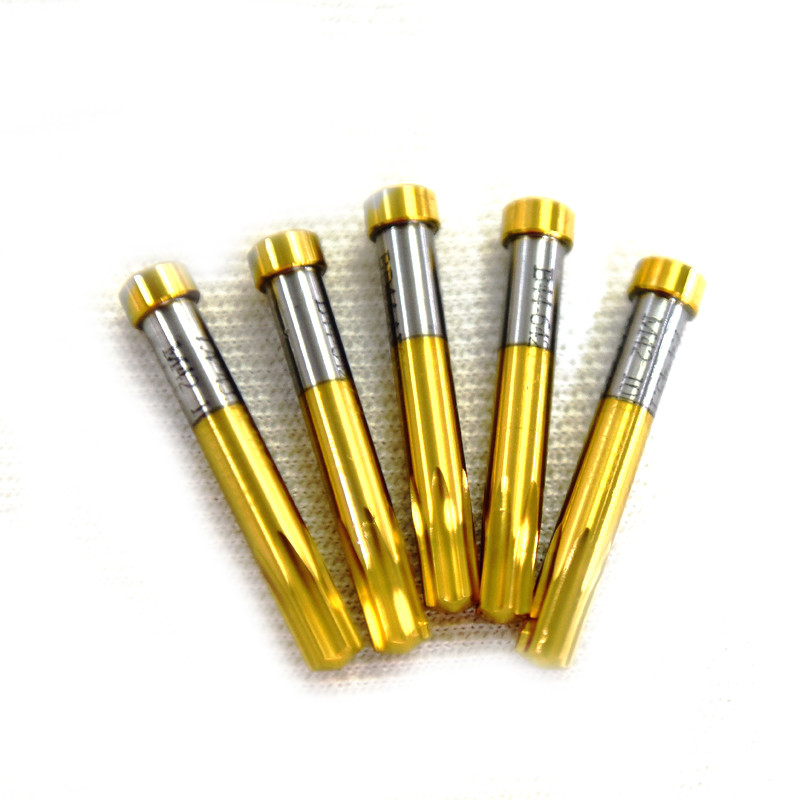

Ejector Punch Pin HSS M2 M35 M42 Reliable Quality DIN Hex Head Punch 4

F&Q:

Q1::Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants
and R&D bases

Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District,
Chongqing City, China.
All our clients, from home or abroad, are warmly welcome to visit us at anytime!

Q3:What is the material of your products?
A3:The materials are DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.

Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines

Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui people always attach great
importance to quality controlling from the very beginning to
the very end. All the molds, the QC measure with three-D
measuring equipments regularly.
