Professional Screw Cold Forging Die With Tin Coating Tungsten Die

Professional Screw Cold Forging Die With Tin Coating Tungsten Die

Tungsten Cold Forging Die

Professional Cold Forging Die

Tin Coating Cold Forging Die

Place of Origin:

Chongqing, China

Brand Name:

HH

Certification:

ISO9001:2015

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Shaping Mode:
Cold Forging Die
Product:
Fastener
Product Name:
Reliable Quality Of CHINA Extrusion Dies
Material:
VA80,ST6,ST7,KG5,KG6
Surface Treatment:
Polishing
Design Software:
CAD
Service:
ODM OEM
Delivery Time:
7-10 Working Days
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD+Negotioned+Pieces
Packaging Details
Cartons, wooden boxes, pallets, packaged according to weight and customer requirements
Delivery Time
12-15 working days
Payment Terms
T/T, Western Union, Credit Card
Supply Ability
100000 Piece/Pieces per Month
Product Description

Professional Screw Cold Forging Die With Tin Coating Tungsten Die



Products Description

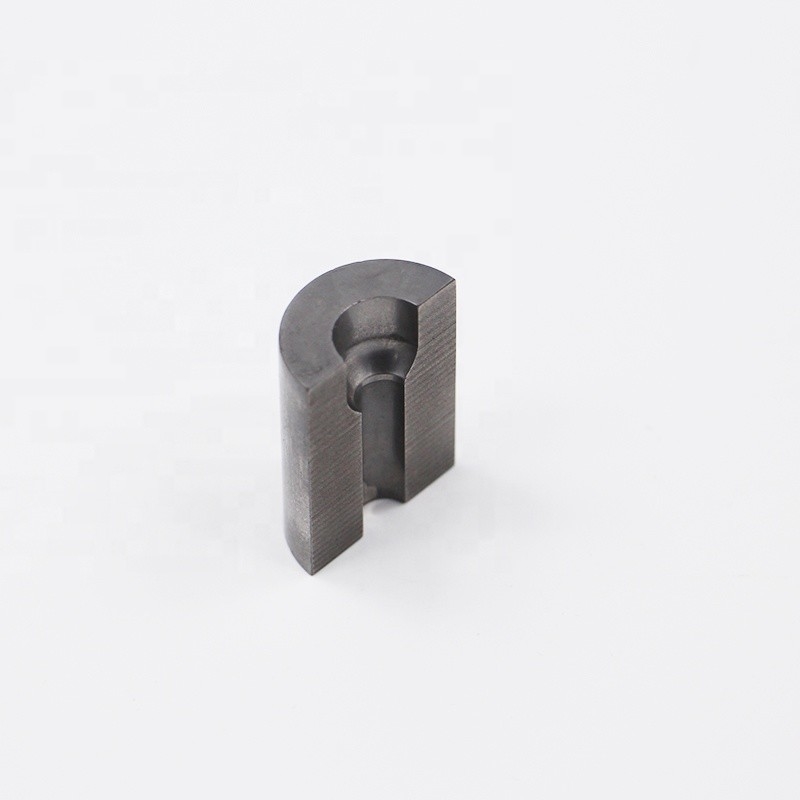

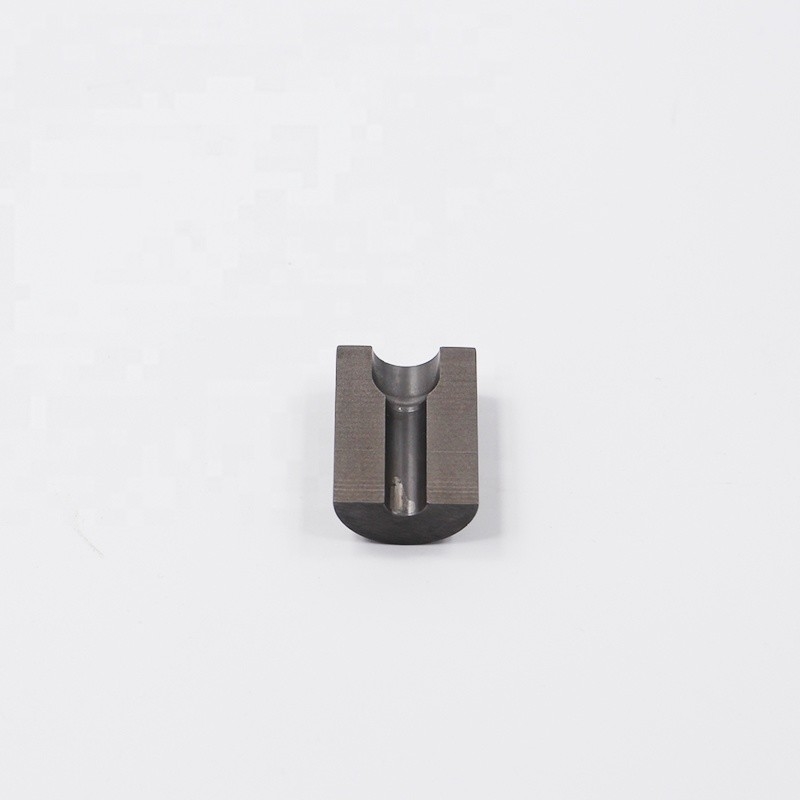

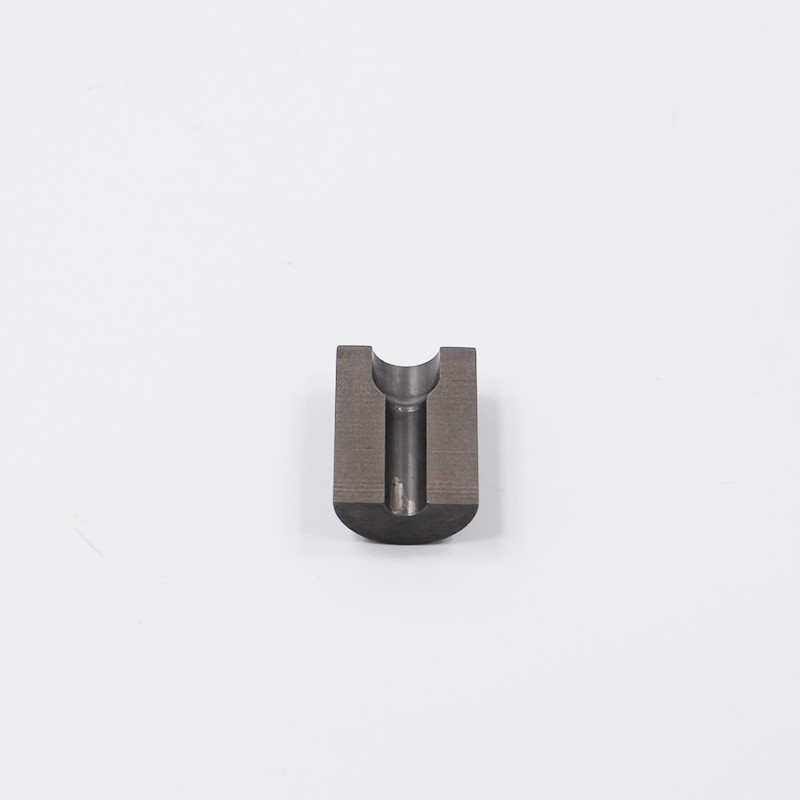

Professional Screw Cold Forging Die With Tin Coating Tungsten Die 0Professional Screw Cold Forging Die With Tin Coating Tungsten Die 1Professional Screw Cold Forging Die With Tin Coating Tungsten Die 2







The material selection of the punch pin is mainly high-speed steel. The commonly used materials are SKH9, SKH55, SKH59 in Japan, M2, M35 and M42 in the United States. The main feature of the material is that the high-speed punching material can maintain good red hardness and wear resistance. There are also some powder high speed steel materials, commonly used are ASP23, ASP30, ASP60. The performance of the material is superior to that of high-speed steel, but the price is high and the range of use is relatively small. Tungsten carbide punch pins are new products that can be produced by a few companies this year. They are mainly made of tungsten carbide. They have high toughness requirements for materials, and the technical requirements and production costs during production are also high. They are commonly used in the stainless steel cold heading industry.







Item



Co



Grain Size



Density



Hardness



TRS



Impact Strength



Application



Mediun-Grained







Co%



μm



g/cm²



HRA



Kgf/mm²



Kgf/m-cm²







KG2



6.50%



2~3



14.90



90.5



320



0.28



Drawing die



KG3



9%



2~3



14.61



89.3



340



0.52



Extrusion die



KG5



12%



2~3



14.31



88.3



340



0.58



Extrusion die



KG6



14%



2~3



14.12



87.3



320



0.65



Extrusion die



Coarse-Grained



ST6



15%



3~6



13.80



86.0



270



0.78



Stainless steel



ST7



20%



2~6



13.40



85.3



270



0.80



Stainless steel



EA65



18%



2~6



13.73



85.0



300



0.80



Carbon steel screw/cutting die



VA80



20%



3~6



13.58



84.0



280



0.85



Impact resistance



VA90



22%



6~9



13.39



82.5



240



0.90



Impact resistance



EA90



24%



2~6



13.22



82.8



270



0.90



Impact resistance





Material: Carbide>M42(H59)>M35(H55)>M2(H9)

H9(M2)
Chemical Composition C Si Mn P S Cr Mo V W
Content (%) 0.85 0.33 0.34 0.027 0.005 4.12 4.73 1.78 5.74
  Cu Ni
  0.12 0.24





M42(SKH59)
Chemical Composition C Si Mn P S Cr Mo V W
Content (%) 1.06 0.3 0.31 0.018 0.002 3.74 9.29 1.1 1.34
  Cu Ni Co
  0.07 0.29 7.79






About Us:

Chongqing Henghui Precision Mold Co., Ltd located in Chongqing, which is specialized in developing, production and sales of various tungsten carbide dies manufacturer. All our products are made from high-precision manufacturing equipment and testing equipment. Using advanced processing technology to ensure products’ precision. At the same time, we also have technical engineers with many years of professional design experience, a group of experienced technical and quality inspection personnel, implemented the ISO 9001 quality management system and ERP system management.

Our products and services cover the Asian market in China and are exported to Europe, America and Southeast Asia. Our carbide die have a reputation for precision, efficiency, stability and durability. We have a customer service experienced sales staff to provide customers with more attentive service and create more value.


Advantages:

1.High quality
2.Reasonable price
3.On time delivery
4.In-time sending pictures for the mold machining progress and mold finishing
schedule
5.In-time mold test and sample delivery


Professional Screw Cold Forging Die With Tin Coating Tungsten Die 3Professional Screw Cold Forging Die With Tin Coating Tungsten Die 4


Packing and Delivering:
Professional Screw Cold Forging Die With Tin Coating Tungsten Die 5

F&Q:

Q1::Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants
and R&D bases

Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District,
Chongqing City, China.
All our clients, from home or abroad, are warmly welcome to visit us at anytime!

Q3:What is the material of your products?
A3:The materials are DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.

Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines

Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui people always attach great
importance to quality controlling from the very beginning to
the very end. All the molds, the QC measure with three-D
measuring equipments regularly.
