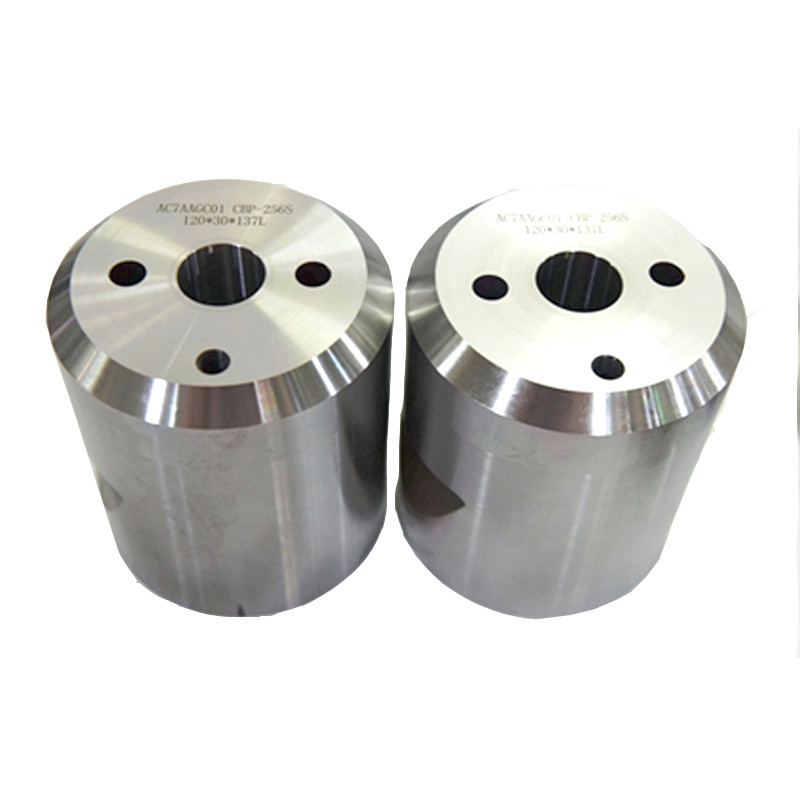

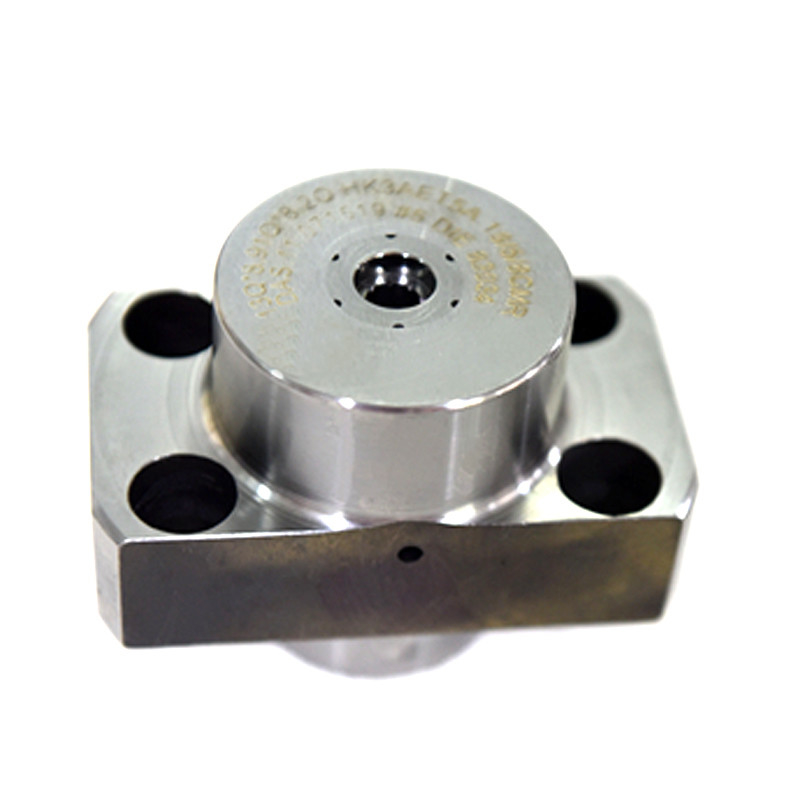

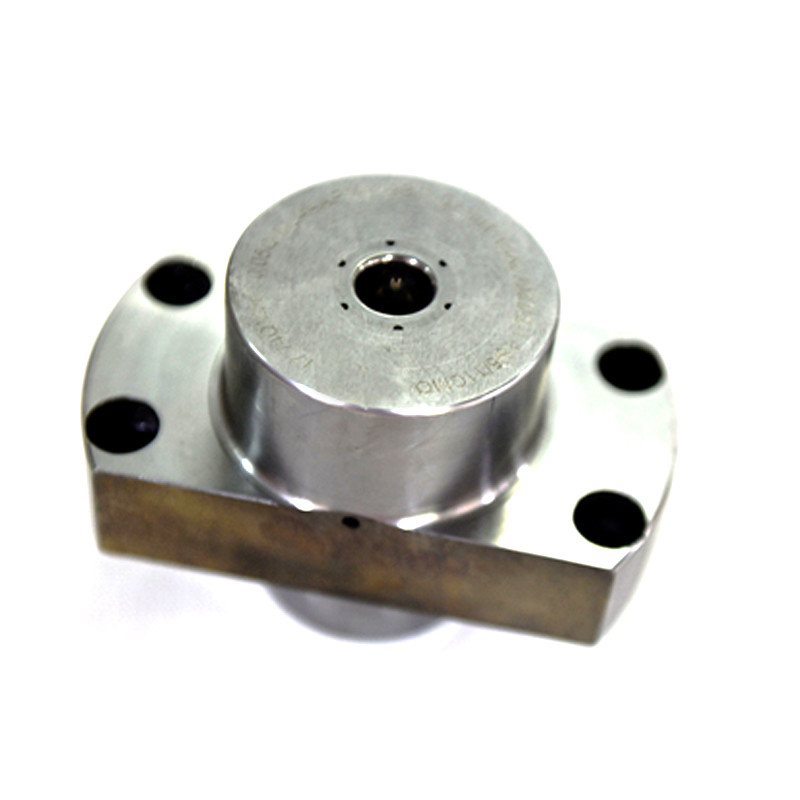

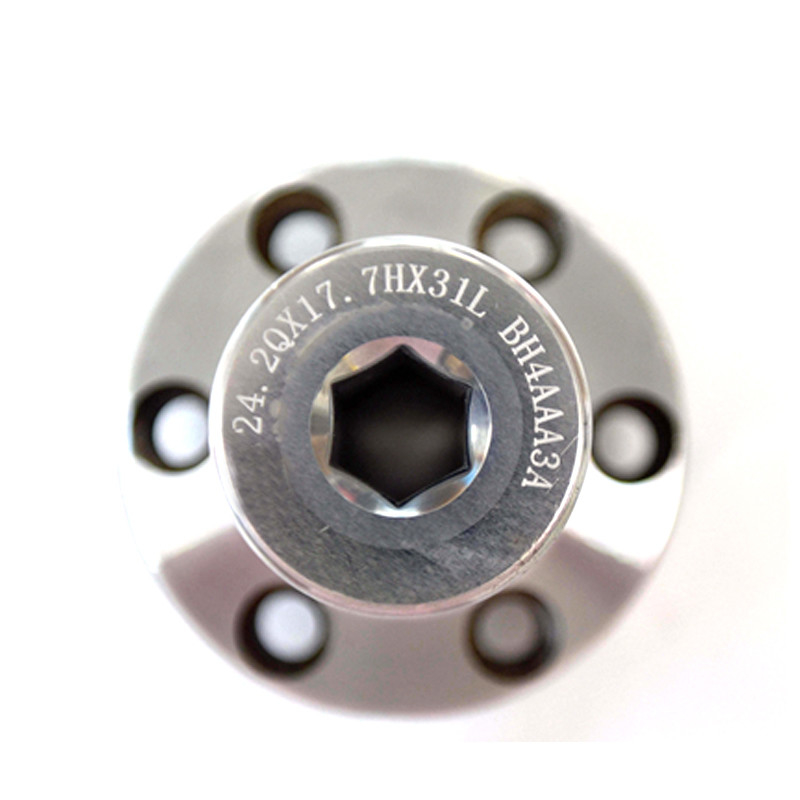

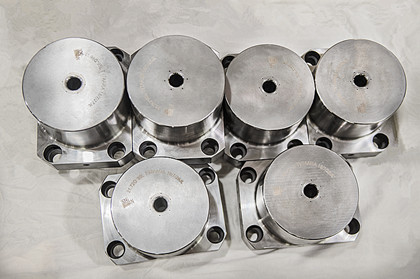

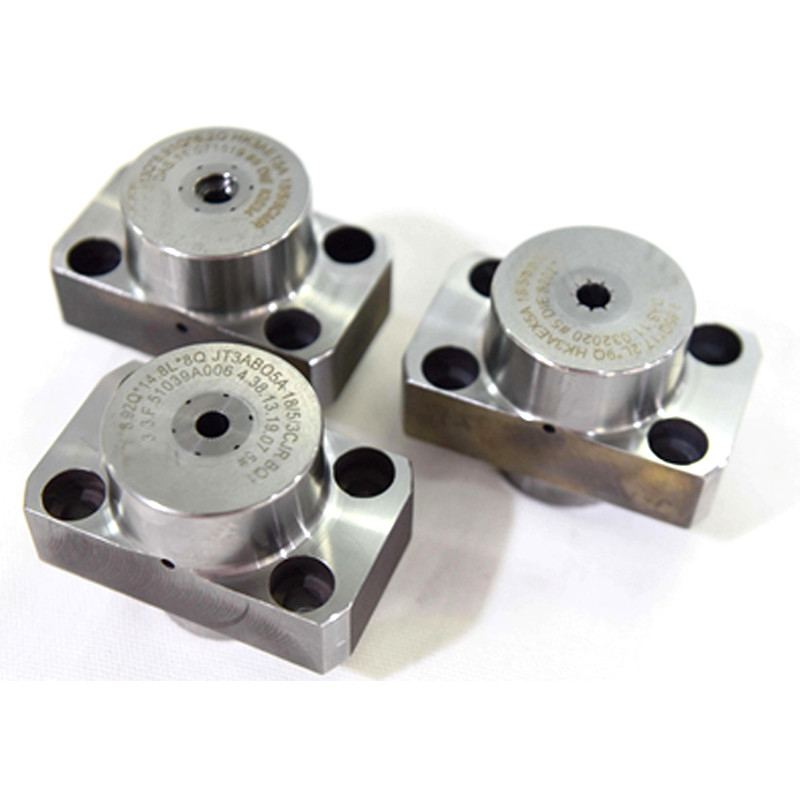

Name: Carbide Die Nut-Forming Die Precision Engineered For High-Volume Fastener Production
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Home > products > Nut Forming Dies >

Carbide Die Nut-Forming Die Precision Engineered For High-Volume Fastener Production

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Request A Quote

Carbide Die Nut-Forming Die Precision Engineered For High-Volume Fastener Production

Product Details

Product Name:

Nut Forming Die

Mold Life:

250000~300000 Shots

Advantage:

Strong Strength

Design Software:

2D/3D/CAD/DWG//STEP/PDF/UG

Size:

Customized

Runner:

Hot Runner/Cold Runner

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD+1.5-1 PCS

Packaging Details

Carton Box

Delivery Time

10-20 Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

Tungsten Carbide Cold Heading Nut Forming Dies - HRA 88-92 Hardness for High-Volume Production Long Service Life

Get Best Price

Nut Forming Dies - High-Strength Casting Long-Lifetime Stamping Durable Automotive Fasteners

Get Best Price

Video

Cold Heading Nut Forming Dies Meterial M2 Carbide High Performance Drawing And Extrusion Die

Get Best Price

Video

High Strength Die Cold Heading Die Cemented Carbide Nut Forming Die Surface Polishing CVD Coating

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain	Density	Hardness	TRS	Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Advantages

1. Extended Service Life with Ultra-High Wear Resistance
Utilizes multi-layered tungsten carbide (e.g., gradient WC-Co alloys) or surface-hardened tool steel (e.g., H13 with PVD
coating)
Reduces die replacement frequency by 40-60% vs. conventional dies, even under high-tonnage cold forging.

2. Zero Defect Output via Precision Tolerance Control
Maintains ±0.01mm dimensional accuracy across 100K+ production cycles.

Ensures consistent thread profile (e.g., ISO metric/UNF), eliminating secondary machining.
3. Cost-Efficient High-Speed Production
Cycle time reduced by 30% through optimized flow simulation (e.g., DEFORM™-validated cavity design)
Enables multi-station progressive forming (e.g., 6-in-1 dies) for complex nuts (flanged, slotted, etc.).

Factory

Inspection equipment

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.
