Name: High-Precision Tungsten Carbide Master Die with Steel Material for Industry Applications
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Home > Products > Tungsten Carbide Die >

High-Precision Tungsten Carbide Master Die with Steel Material for Industry Applications

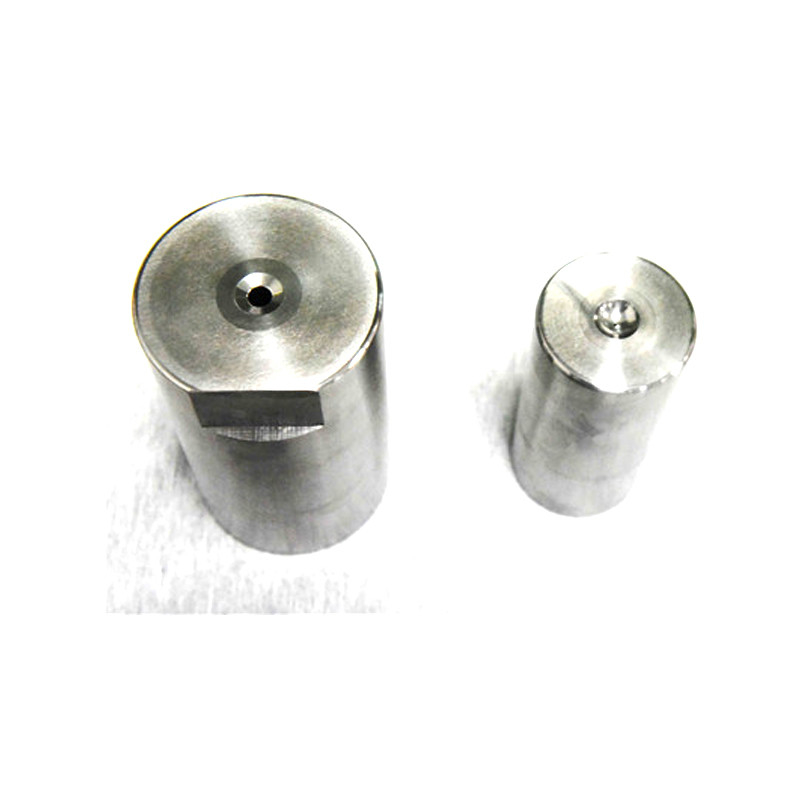

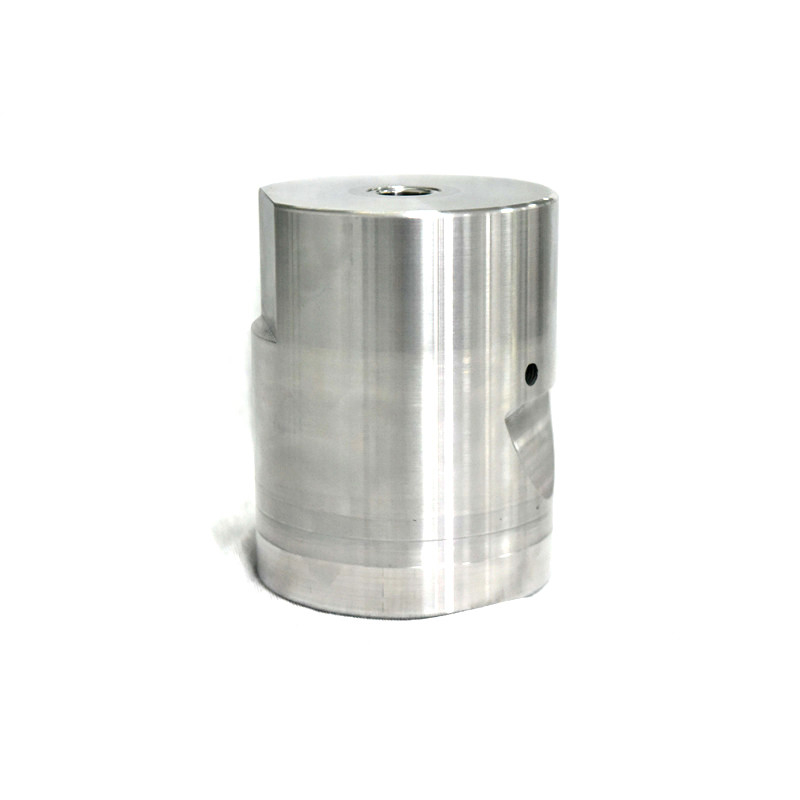

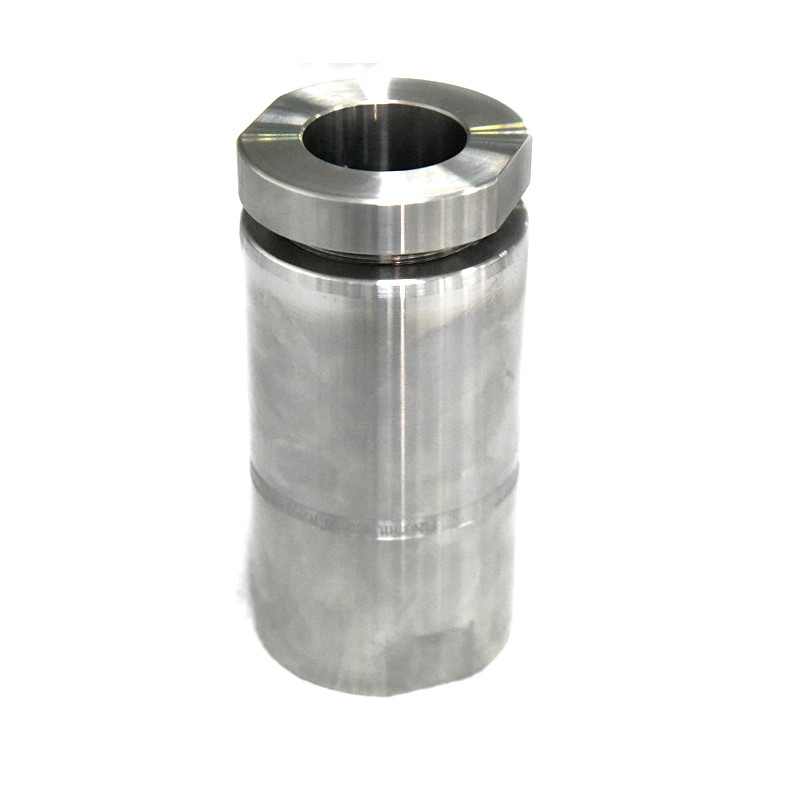

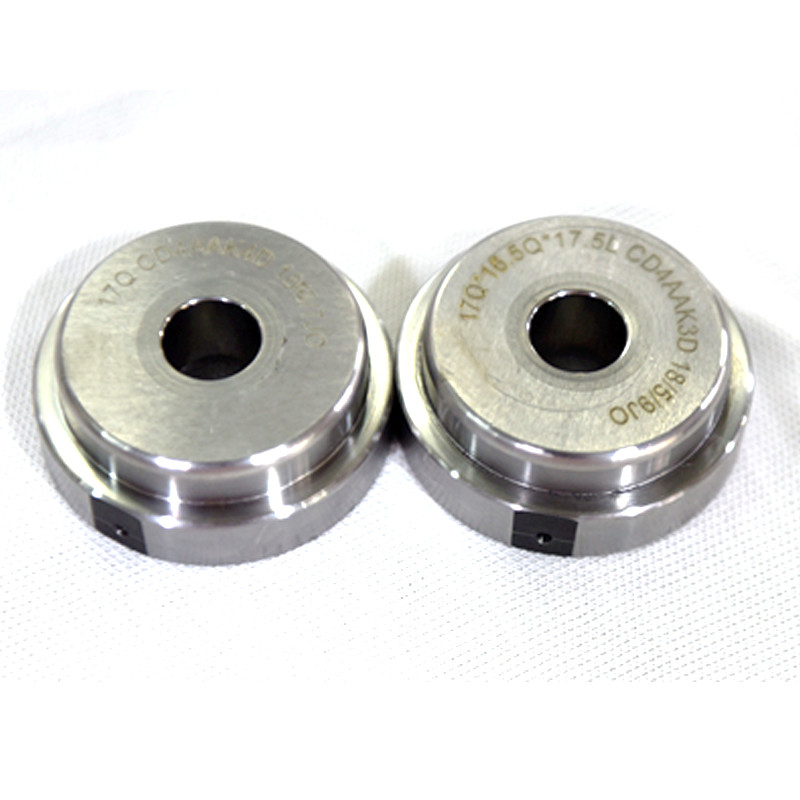

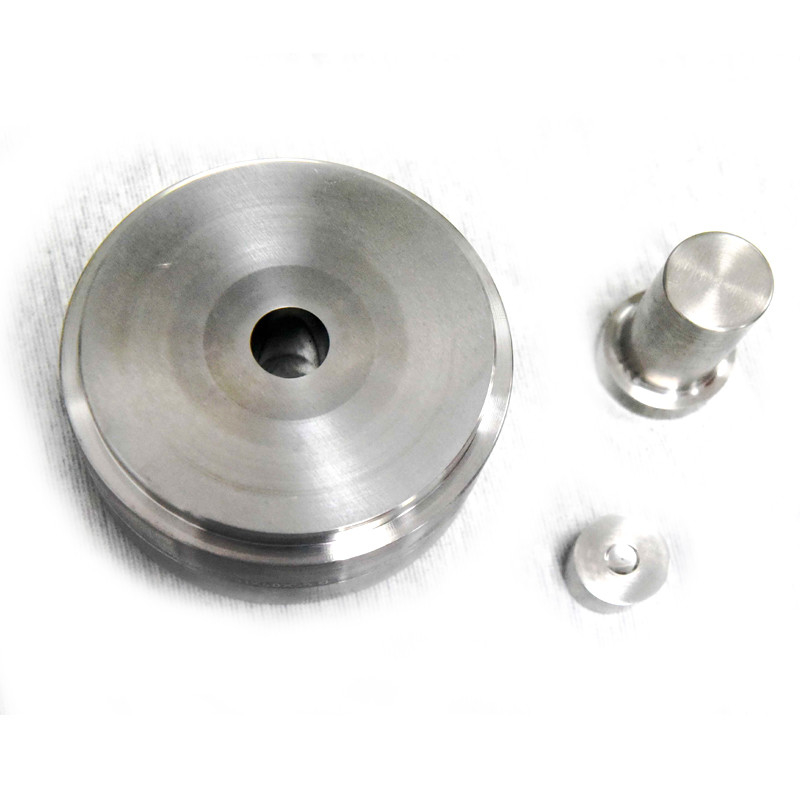

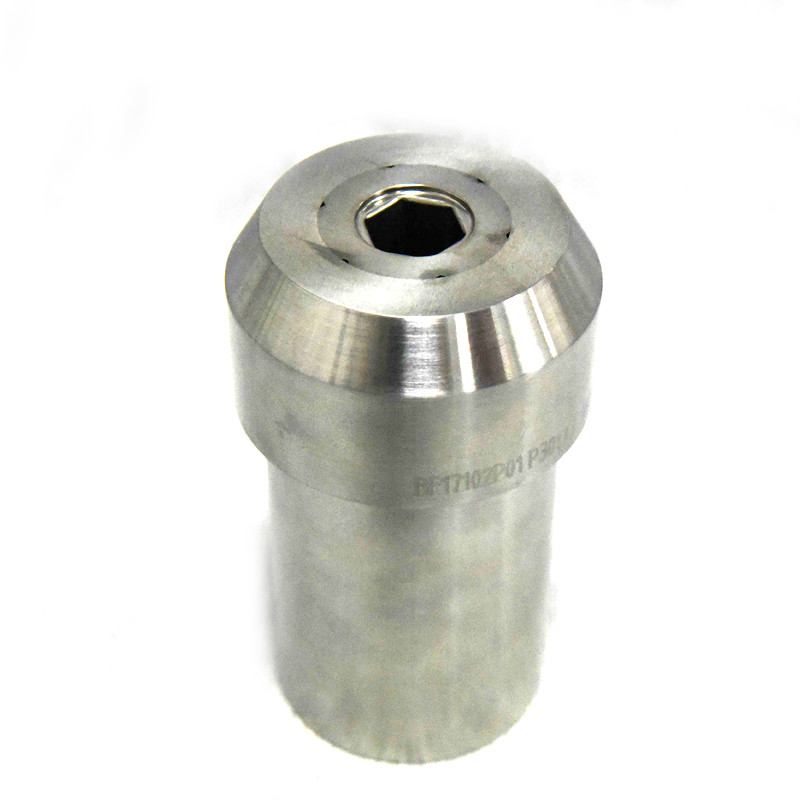

Tungsten carbide master die

High-precision production tooling

Manufacturing tungsten carbide die

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Request A Quote

High-Precision Tungsten Carbide Master Die with Steel Material for Industry Applications

Product Details

Material:

Steel

Application:

Industry

Surface Treatment:

Customer's Request

Keyword:

Mould Maker

Mould Life:

250000-300000shots

Runner:

Hot Runner/ Cold Runner

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20 Days

Payment Terms

T/T,L/C

Supply Ability

1000 PCS Month

Industrial Screw Punch Tool Hardened Steel Quick-Change Punch High Precision CNC Machined

Get Best Price

Customized Cold Heading Nut Mold with Alloy Material and Square Shape for Industrial Applications

Get Best Price

Precision Thread Rolling Die with +/-0.01mm Tolerance High Accuracy and Long Life for Screw Making

Get Best Price

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

High-Precision Master Die - Precision Tooling for Demanding Manufacturing Applications

Insert Material Options

We offer various carbide materials tailored to specific applications:

Item	Co	Size	Density	HRA	TRS	Strength	Application
Medium-Grained
KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained
ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel Cutting die
VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material

Primary case material: H13 (SKD61) HRC46-48

SKD61 (H13) Chemical Composition
C	Si	Mn	P	S	Cr	Mo	V	W
0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
Cu: 0.05		Ni: 0.06

Surface Treatment

Available treatments: TiN / TiAlN

Manufacturing Process
