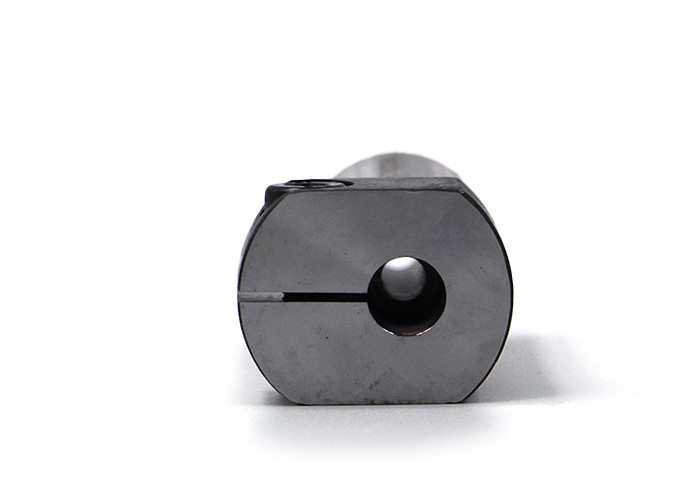

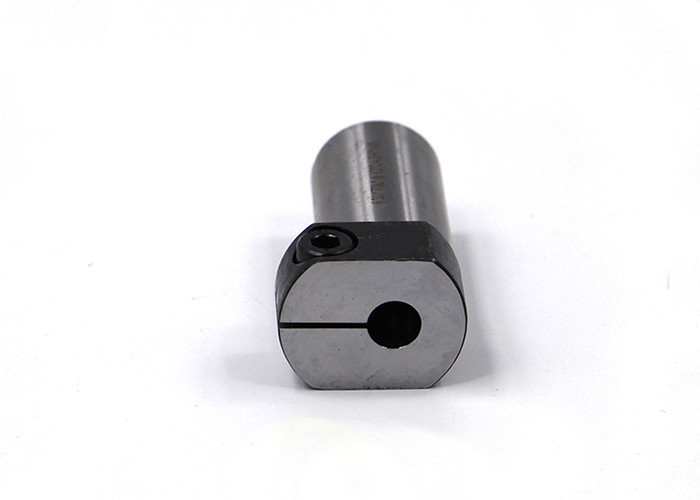

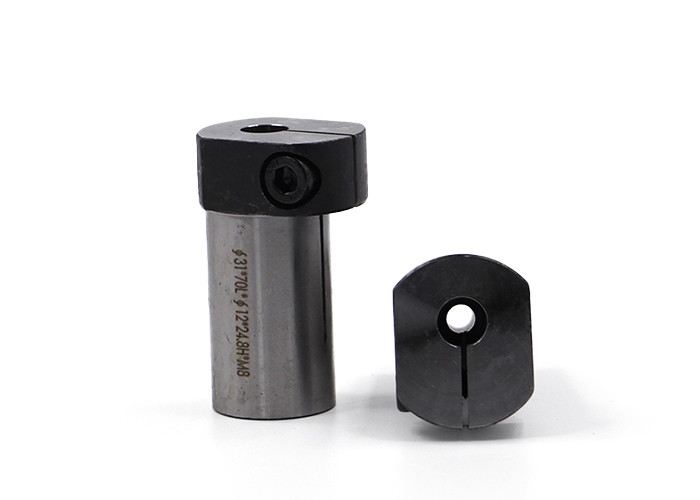

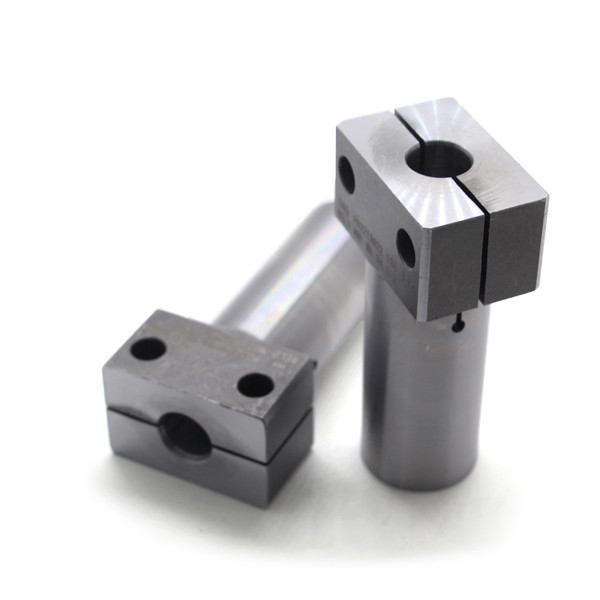

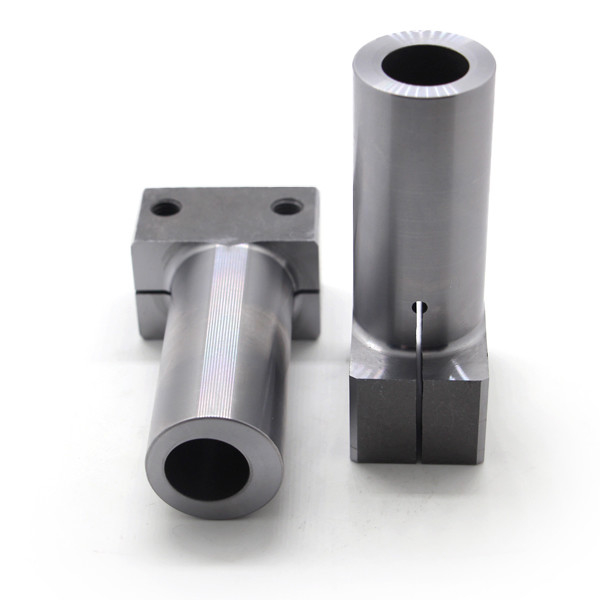

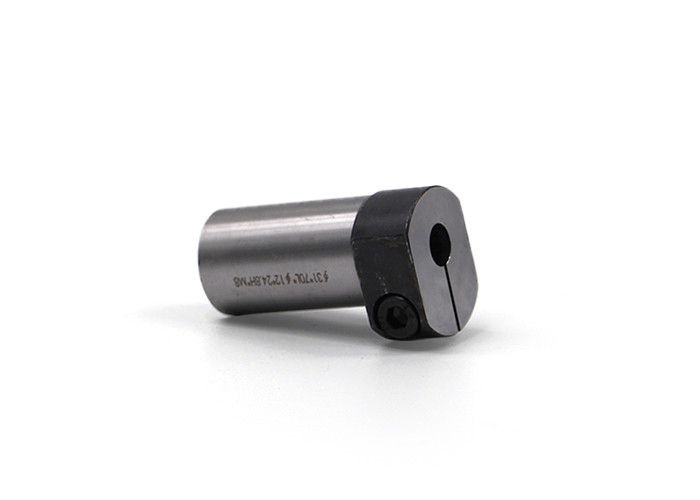

Name: Shock-Resistant Alloy Steel Punch Collet Chuck - Wearproof Design Multi-Press Fit 50,000+ Cycles
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Home > products > Tungsten Carbide Die >

Shock-Resistant Alloy Steel Punch Collet Chuck - Wearproof Design Multi-Press Fit 50,000+ Cycles

Heavy Machinery Rivet Screws

High Torque Rivet Screws

Anti Loosening Rivet Screws

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Request A Quote

Shock-Resistant Alloy Steel Punch Collet Chuck - Wearproof Design Multi-Press Fit 50,000+ Cycles

Product Details

Material:

Steel

Size:

Customized

Design Software:

2D/3D/CAD/DWG//STEP/PDF/UG

Application:

Industry

Feature:

High Precision

Runner:

Hot/Cold

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

Shock-Resistant Alloy Steel Punch Collet Chuck - Wearproof Design Multi-Press Fit 50,000+ Cycles

Get Best Price

Tungsten Carbide Drill Tail Die - High Wear-Resistant Tough Material Precision-Shaped Cavity For Efficient Self-Drilling Screw Production

Get Best Price

Hard Alloy Punches HRC 60-65 Hardness Precision Consistency High-Temp Stability With TiAlN/DLC Coatings For Demanding Production

Get Best Price

Carbide Shear Dies Heat-Treated Coated for Extended Lifespan Compatible with Stainless Steel Copper Aluminum Processes 0.1-8mm Metal Sheets

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Insert Material:We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Advantages

1. Zero-Slip Grip Technology
Precision tapered self-locking design with radial grooves, eliminating tool slippage even under 200+ ton impacts (tested at 100,000+ strokes).
2. Ultra-Wear Resistance
Core: SCM440 alloy steel hardened to HRC60-63 with 0.1mm nitride coating; optionally tungsten carbide-lined for abrasive materials.(3x lifespan vs. standard collets).
3. Universal Press Compatibility
ISO-standardized taper angles (1°-5°) + adaptive shank range (5-30mm), reducing setup time by 40% across CNC punching/compound dies.
