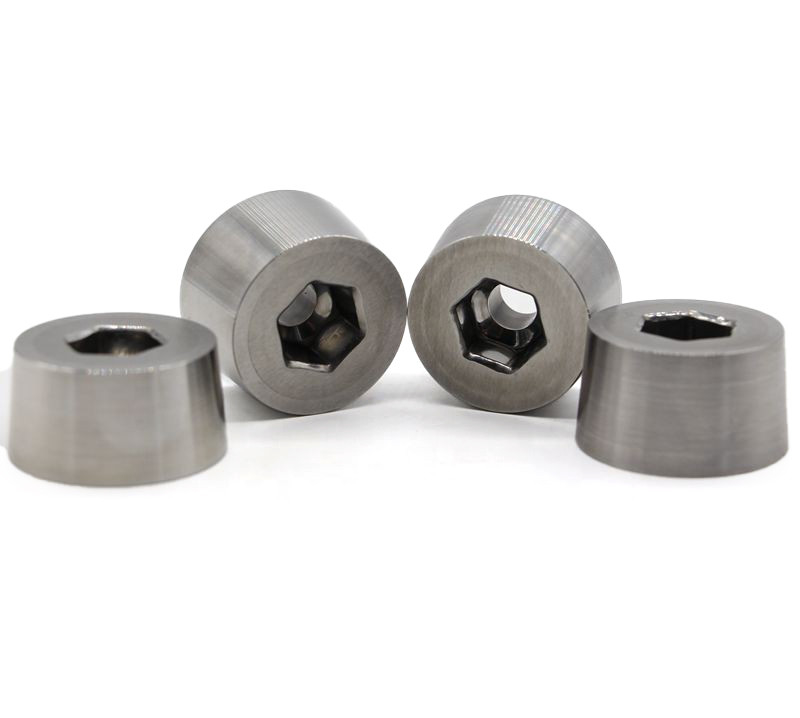

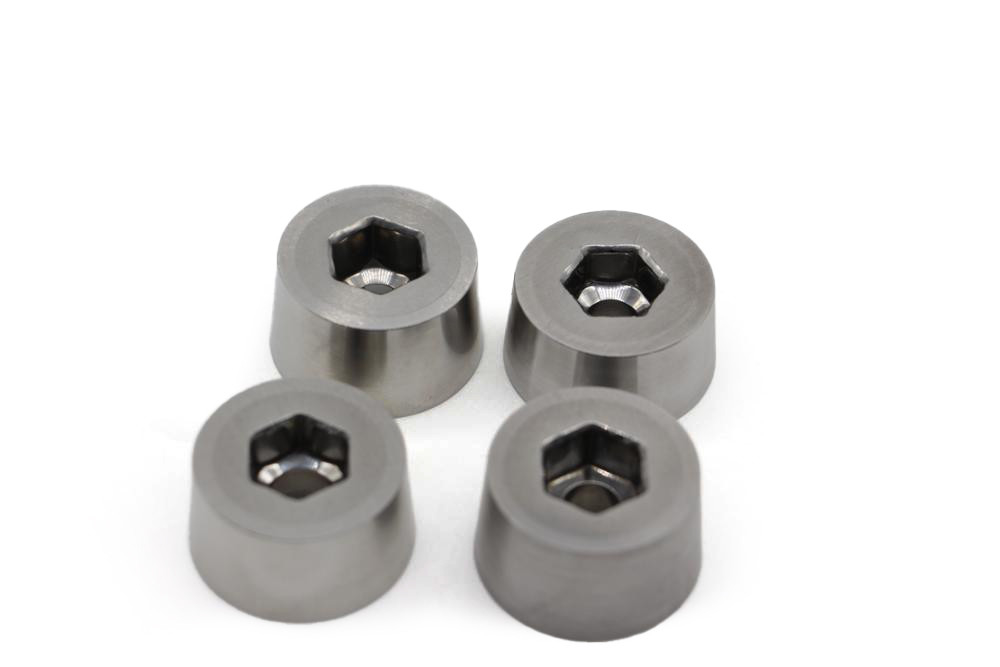

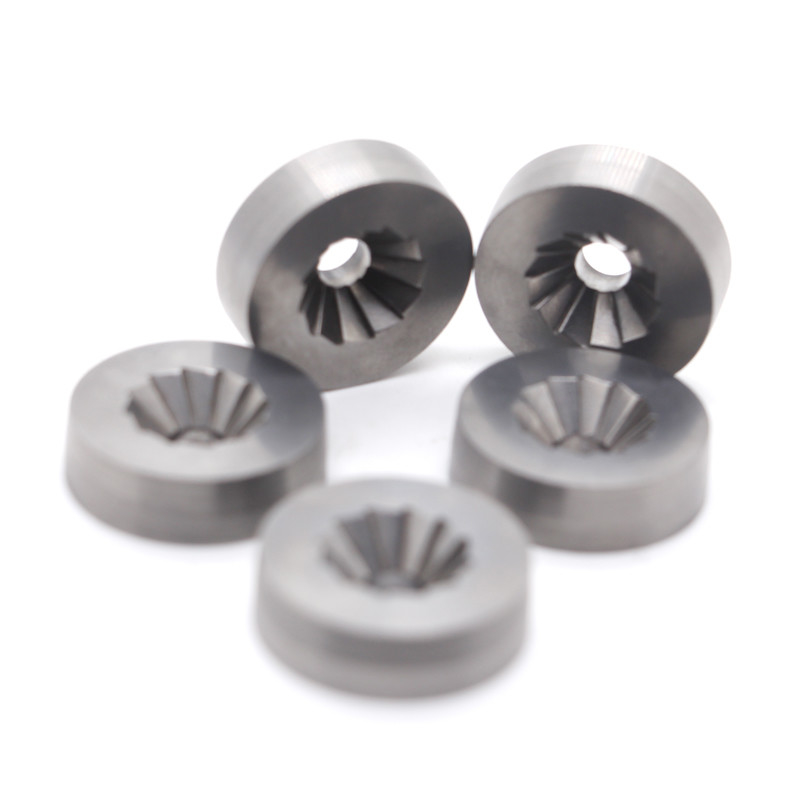

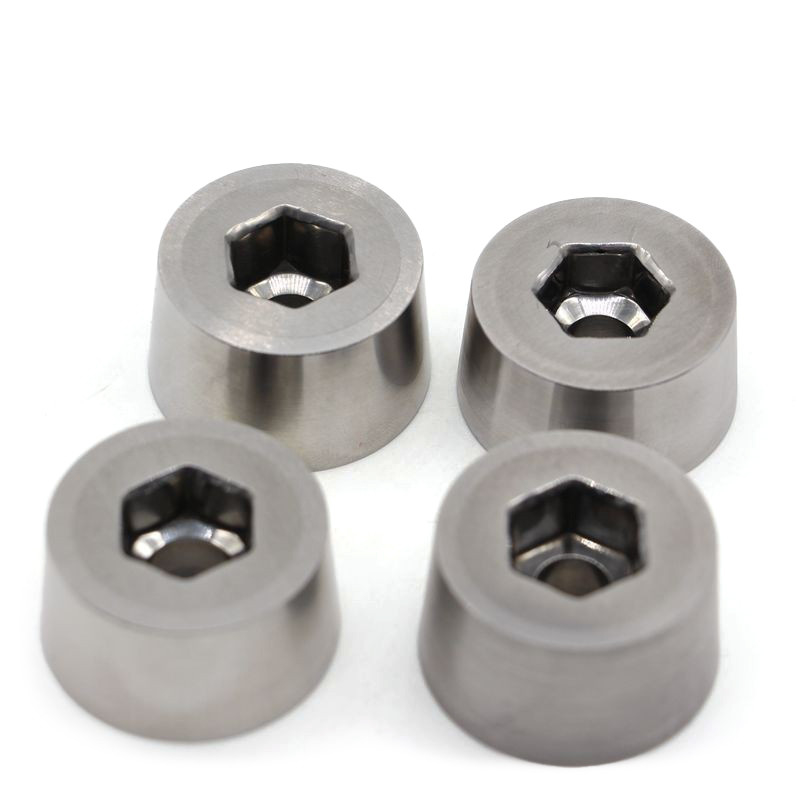

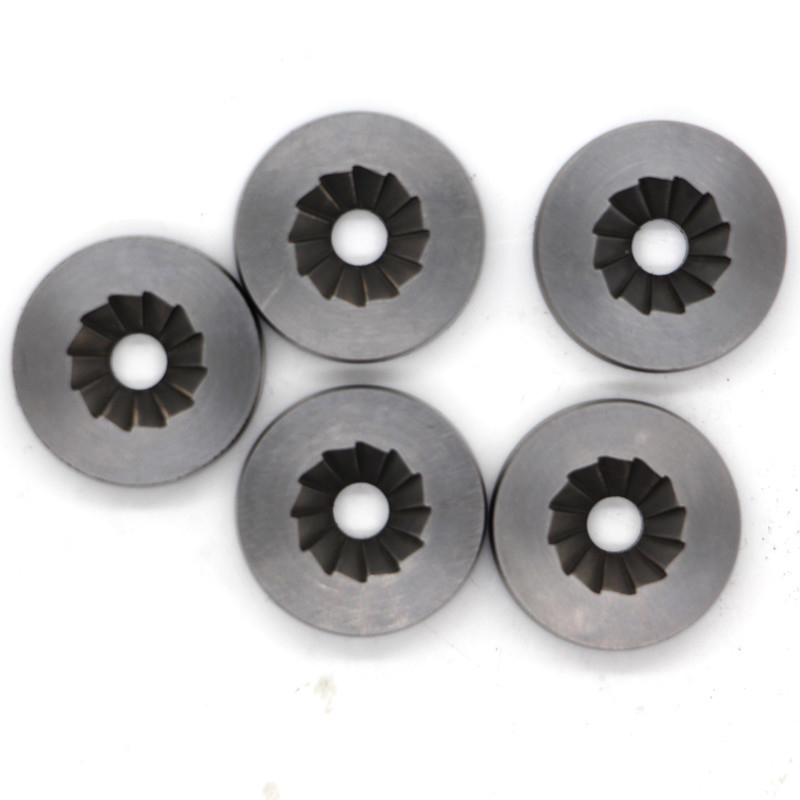

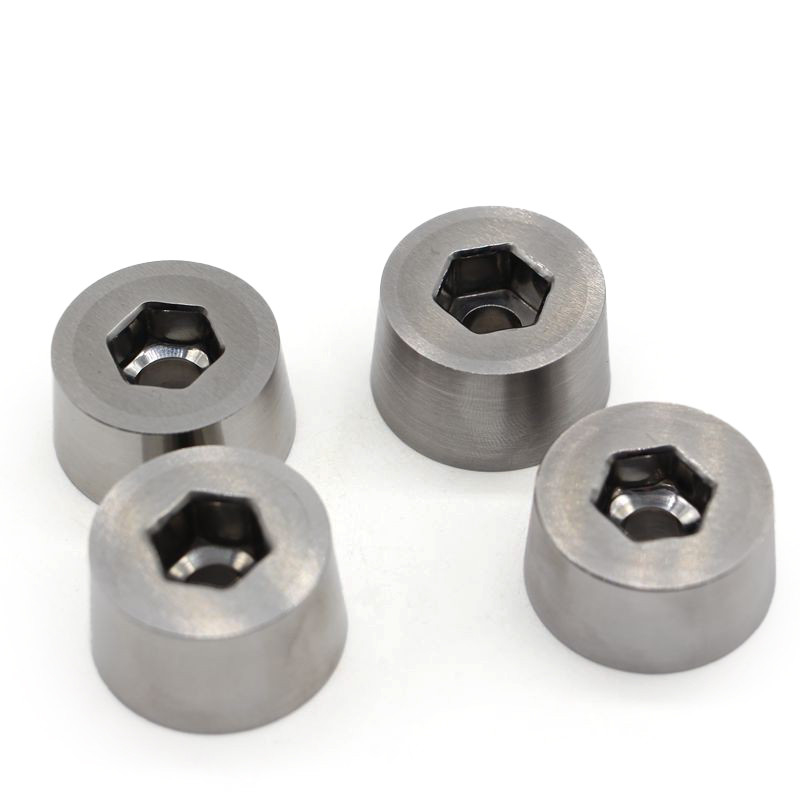

Precision Forging Dies For Metal Components Highlights Applications Automotive Aerospace Metal Forming

Product Details

Advantage:

Strong Strength

Feature:

High Precision

Runner:

Hot Runner/Cold Runner

Drawing Format:

2D/(PDF/CAD)3D(IGES/STEP)

Surface Treatment:

Customer's Request

Mould Life:

250000-300000shots

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20 Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

Precision Forging Dies For Metal Components Highlights Applications Automotive Aerospace Metal Forming

Get Best Price

Guide Pin Punch For Stamping Die SKD-11 Hardened Steel 60-62 HRC ±0.01mm Tolerance

Get Best Price

Drill Piont Dies For Precision Stamping High Wear Resistance Drill Point Punching

Get Best Price

Industrial Screw Punch Tool Hardened Steel Quick-Change Punch High Precision CNC Machined

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Insert Material:We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	HRA	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Advantages

Superior Dimensional Accuracy
Produces near-net-shape components with tight tolerances (±0.1-0.5mm)
Minimizes secondary machining requirements
Enhanced Material Strength & Durability
Refines grain structure through controlled deformation
Eliminates internal voids/porosity (superior to casting)
Achieves 15-30% higher fatigue resistance vs. machined parts
Optimal Material Utilization
Achieves 90-95% material yield (vs. 40-60% in machining)
Reduces raw material waste and costs
High Production Efficiency
Enables rapid mass production (up to 1,200 parts/hour)
Consistent output quality across production runs

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN
