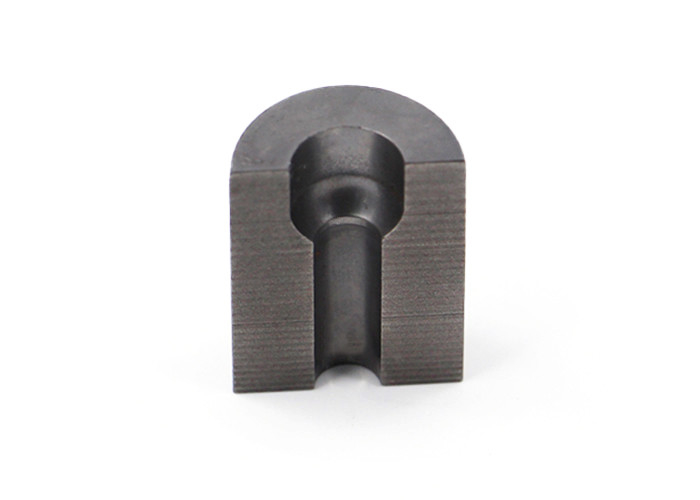

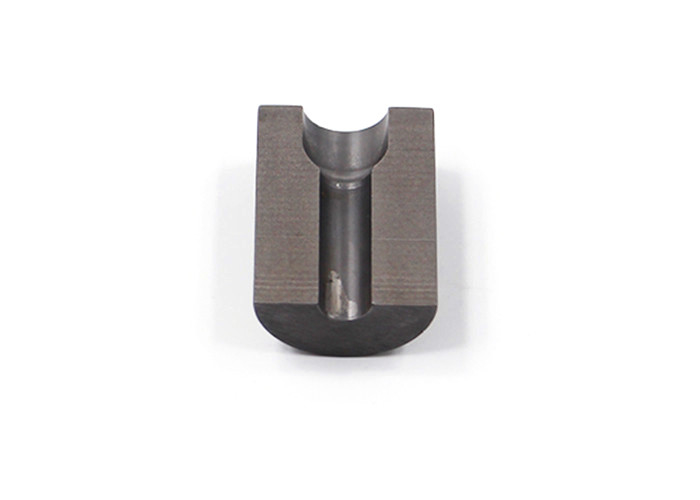

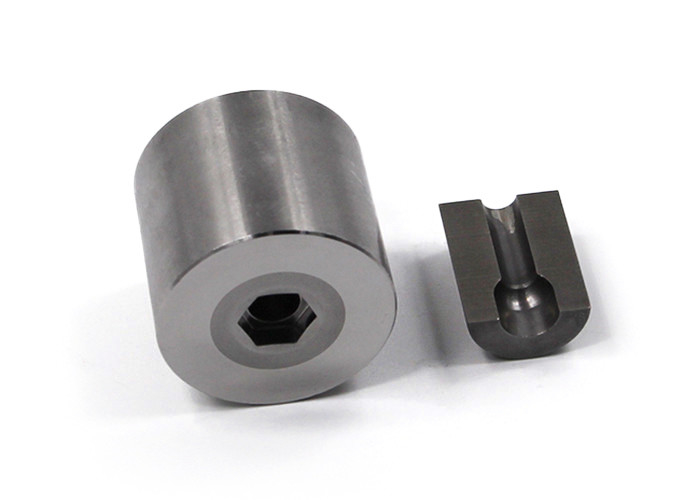

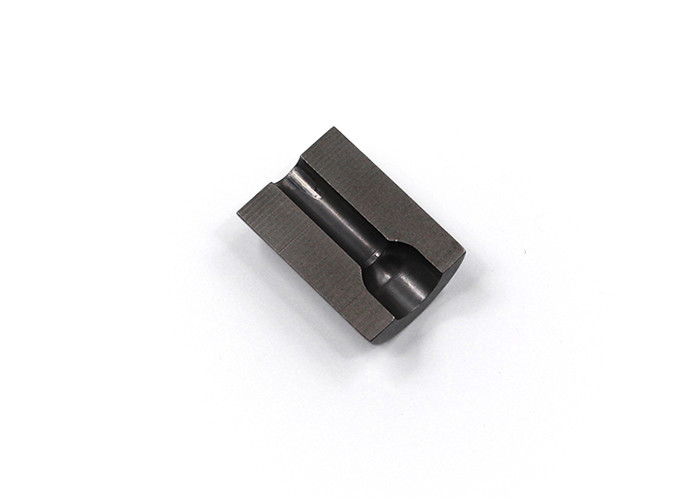

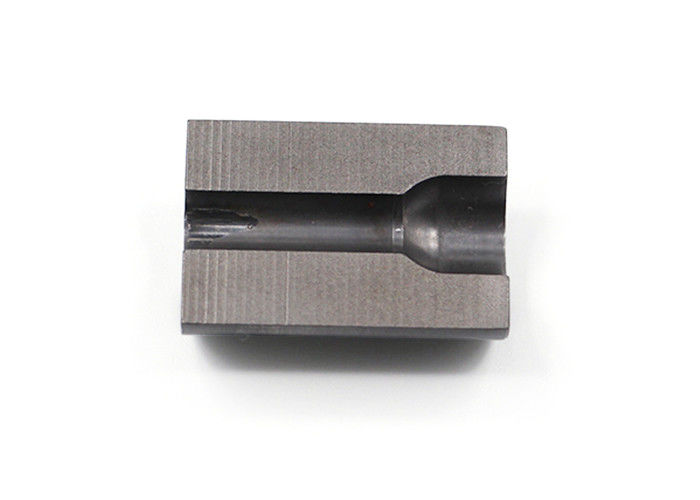

Restraining Die For Auto/Aerospace Metal Forming - 500K Shots Lifespan ±0.05mm Tolerance 2500T Prestressed

Product Details

Product Name:

Restraining Die

Size:

Customized

Feature:

High Precision

Runner:

Hot/ Cold

Type:

Mold Tool

Design Software:

2D/3D/CAD/DWG//STEP/PDF/UG

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

Shock-Resistant Alloy Steel Punch Collet Chuck - Wearproof Design Multi-Press Fit 50,000+ Cycles

Get Best Price

Tungsten Carbide Drill Tail Die - High Wear-Resistant Tough Material Precision-Shaped Cavity For Efficient Self-Drilling Screw Production

Get Best Price

Hard Alloy Punches HRC 60-65 Hardness Precision Consistency High-Temp Stability With TiAlN/DLC Coatings For Demanding Production

Get Best Price

Carbide Shear Dies Heat-Treated Coated for Extended Lifespan Compatible with Stainless Steel Copper Aluminum Processes 0.1-8mm Metal Sheets

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Insert Material:We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Advantages

1. Zero-Springback Precision
Multi-layer prestressed rings generate 2000-3000T binding force, eliminating material rebound to achieve ±0.05mm tolerance(validated per ASTM E290 bend tests).
2. Extreme Longevity Under Thermal Shock
H13 steel core with TD coating (HV≥1800) resists heat checking/cracking, delivering 500,000+ shots lifespan in high-temp forming(e.g., titanium aerospace parts).
3. Intelligent Quick-Change Integration
Standardized hydraulic locking system enables 15-minute die changeovers – 75% faster than bolt-fastened dies, minimizing press downtime.

Factory

Exhibition

Inspection Equipment

Packing and Delivering
