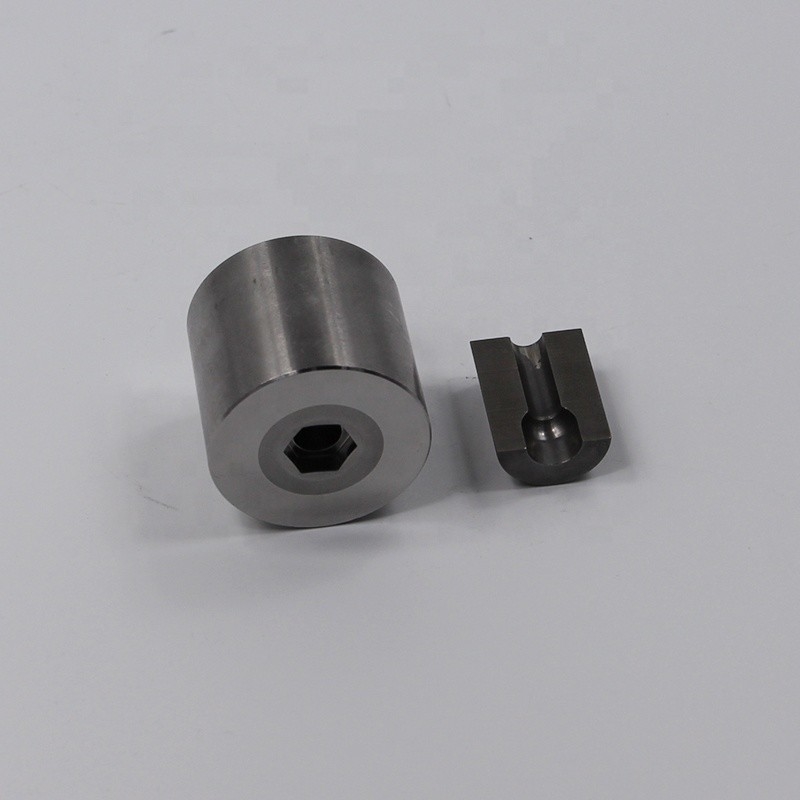

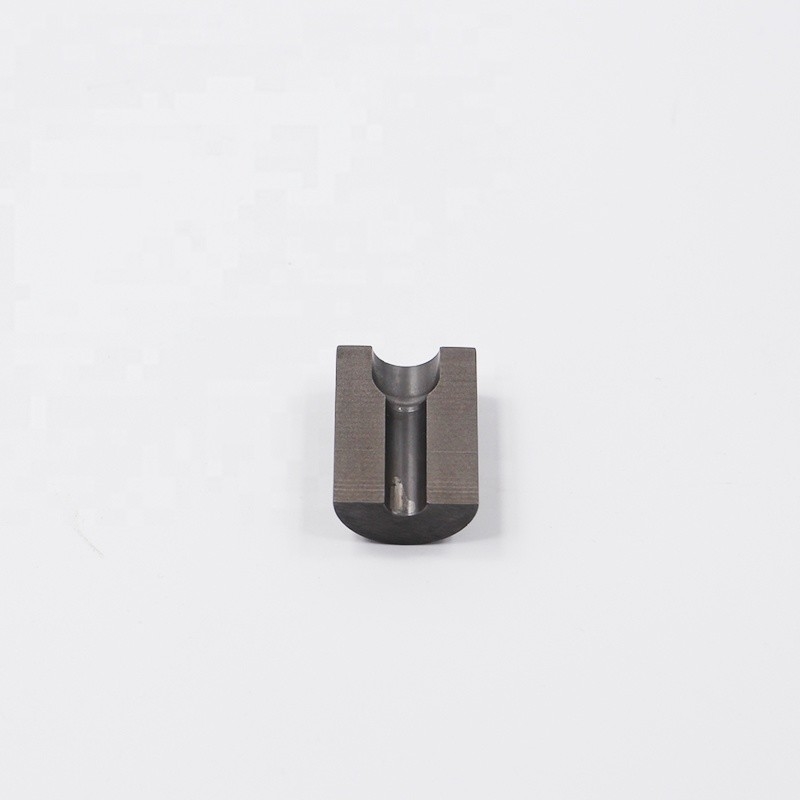

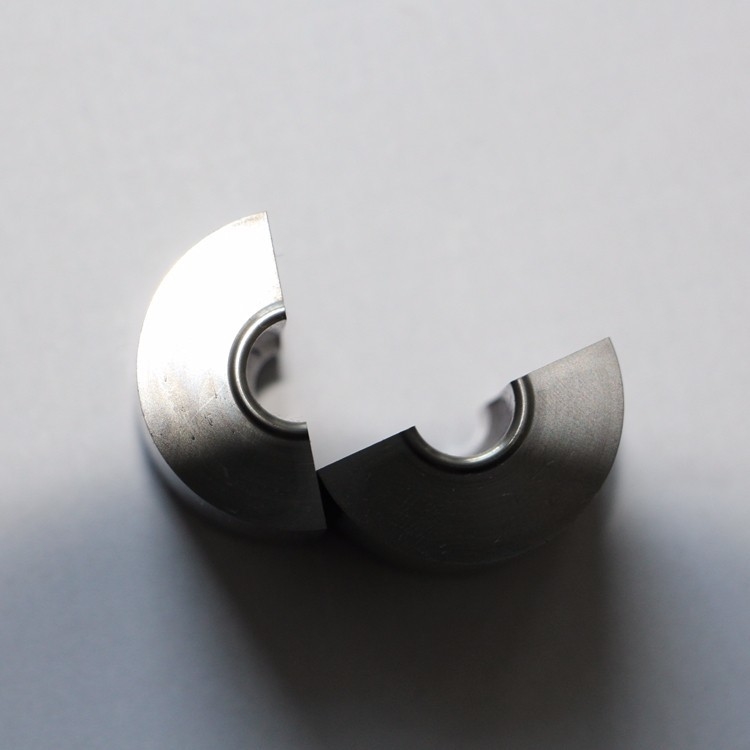

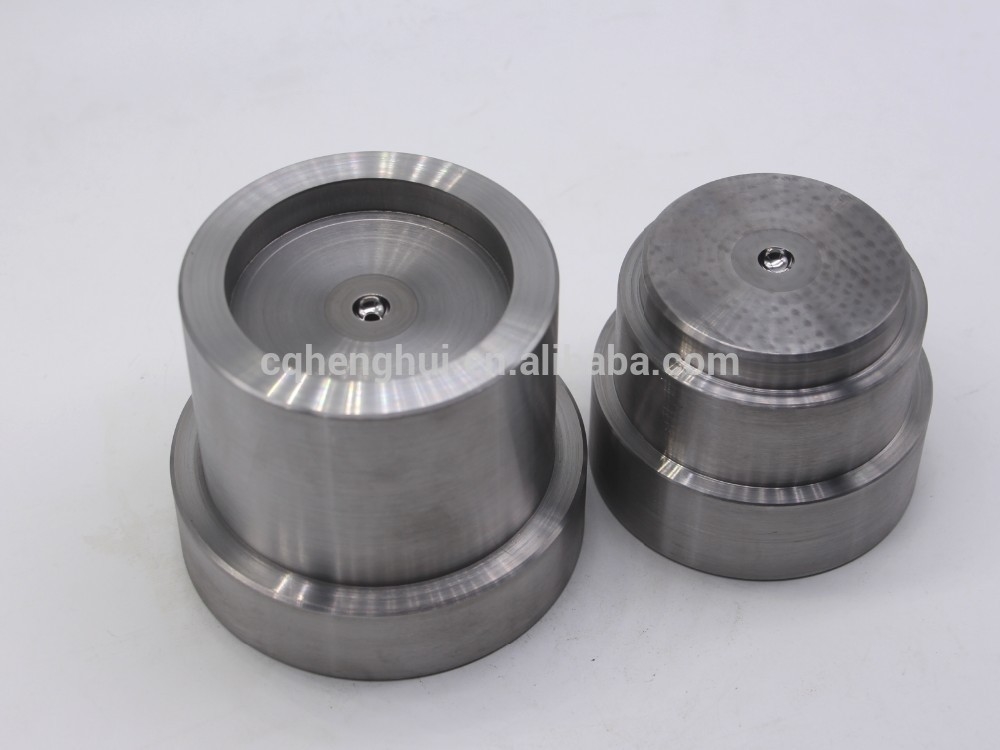

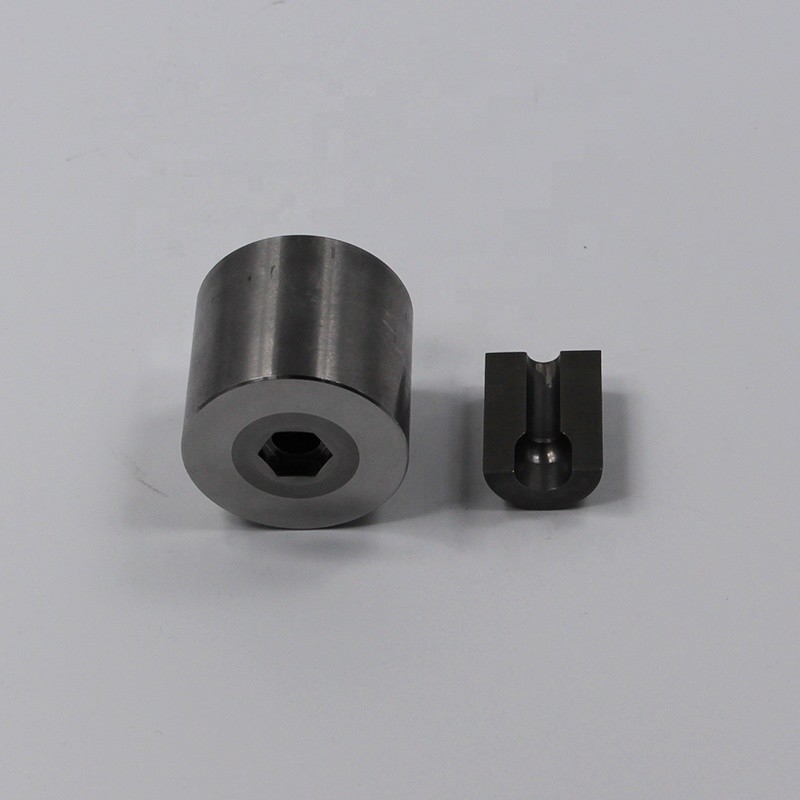

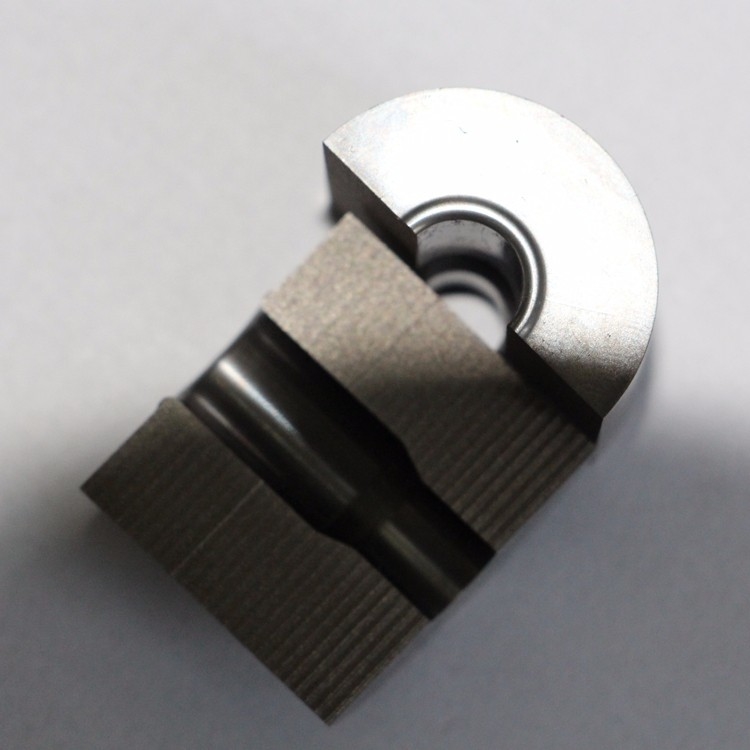

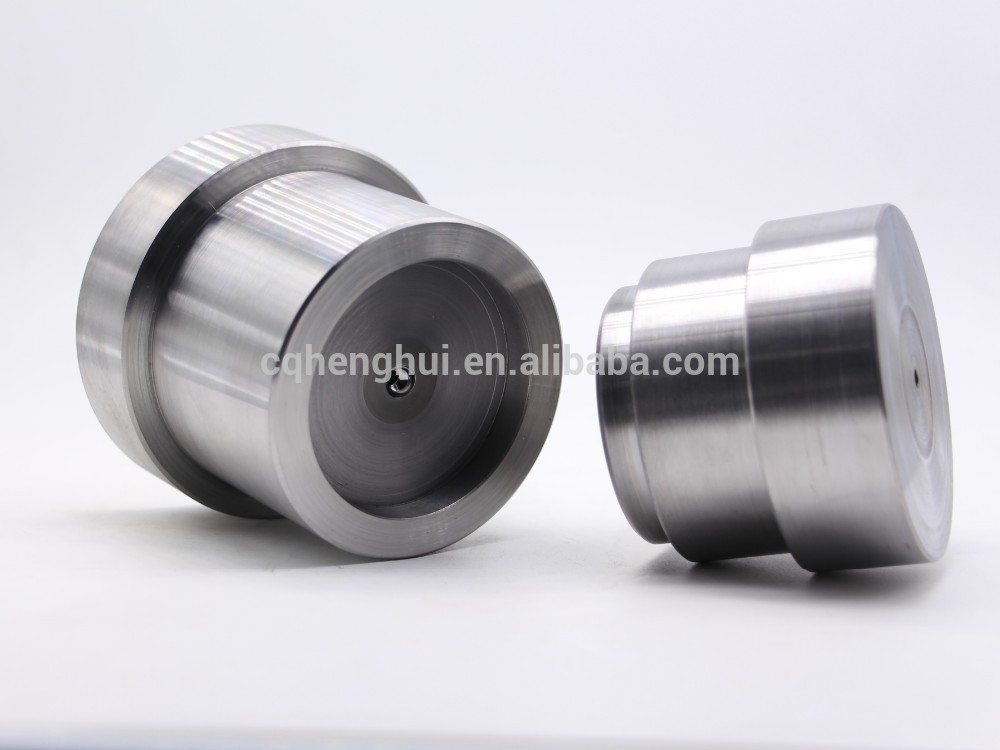

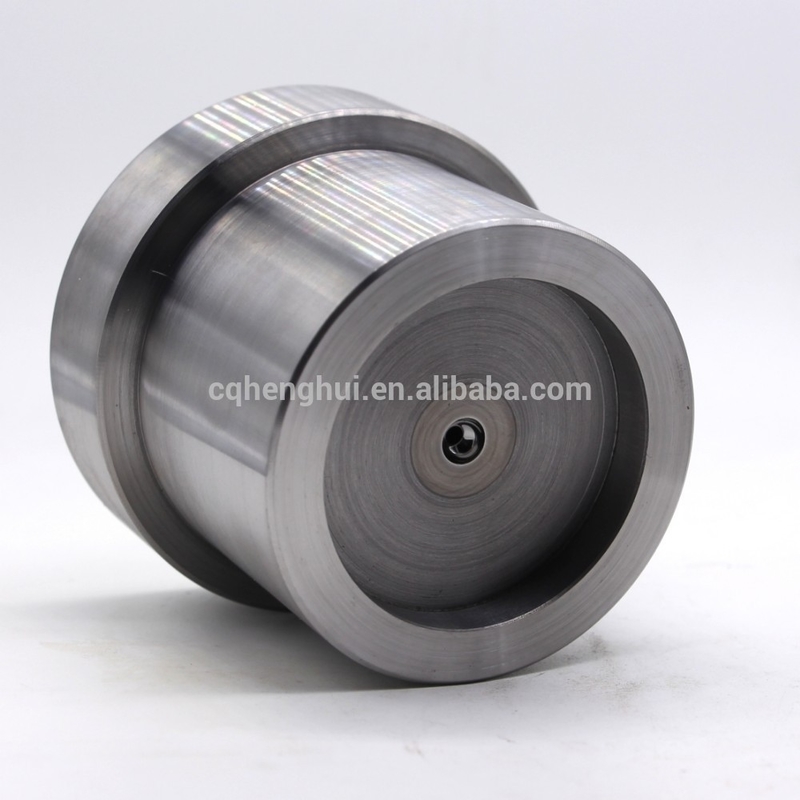

Name: Tungsten Carbide Cold Heading Dies High-Precision Performance For Mass Production Demand Applications Fasteners Bearings Automotive Components Long Service Life
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Home > products > Cold Forging Die >

Tungsten Carbide Cold Heading Dies High-Precision Performance For Mass Production Demand Applications Fasteners Bearings Automotive Components Long Service Life

Self-Tapping Stainless Steel Screws

Flat Head Stainless Steel Screws

Customized Stainless Steel Screws

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Request A Quote

Tungsten Carbide Cold Heading Dies High-Precision Performance For Mass Production Demand Applications Fasteners Bearings Automotive Components Long Service Life

Product Details

Product Name:

Cold Heading Die

Size:

Customized

Material:

Carbide Die

Surface Treatment:

Polishing

Mould Life:

250000-300000shots

Feature:

High Precision

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

2025 New Design CNC Machining Cold Forging Die HSS Material Long Life

Get Best Price

Video

Factory Outlet New Design Customized Cold / Hot Forging Tungsten Carbide Cold Heading Dies

Get Best Price

High Quality Strong Beam Die Carbide Shaped Forming Dies Corrosion Resistance

Get Best Price

Video

China Factory Customized Cold / Hot Forging Tungsten Carbide Cold Heading Dies

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Insert Material:

We can suggest different carbide material according to different usage

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Product advantages

1. Extended Tool Life Wear Resistance
Utilizes premium tungsten carbide substrates with TiAlN coatings, extending service life by 200-300% vs conventional dies.
Maintains ≤0.005mm dimensional drift over 1M+ cycles for sustained precision.
2. High-Speed Production Capability
Enables 300-500 parts/minute output with integrated cooling channels minimizing thermal deformation.
Quick-change die systems reduce setup downtime by 70% for flexible batch production.
3. Material Efficiency Cost Savings
Achieves 99% material utilization via optimized grain flow design, reducing scrap costs by 40%.
Compatible with low-to-high carbon steels, stainless alloys, and non-ferrous metals (Cu, Al).
