Name: Carbide Shear Dies Heat-Treated Coated for Extended Lifespan Compatible with Stainless Steel Copper Aluminum Processes 0.1-8mm Metal Sheets
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Home > products > Tungsten Carbide Die >

Carbide Shear Dies Heat-Treated Coated for Extended Lifespan Compatible with Stainless Steel Copper Aluminum Processes 0.1-8mm Metal Sheets

Cross Recess Self Tapping Screw

Stainless Steel 304 Self Tapping Screw

Round Head Self Tapping Screw

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Request A Quote

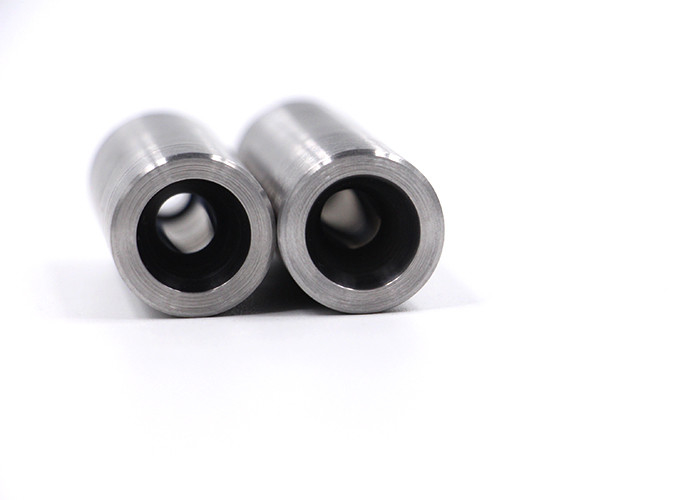

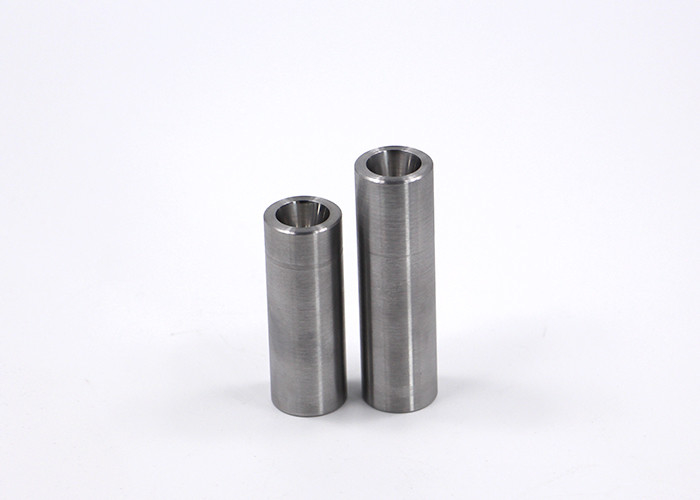

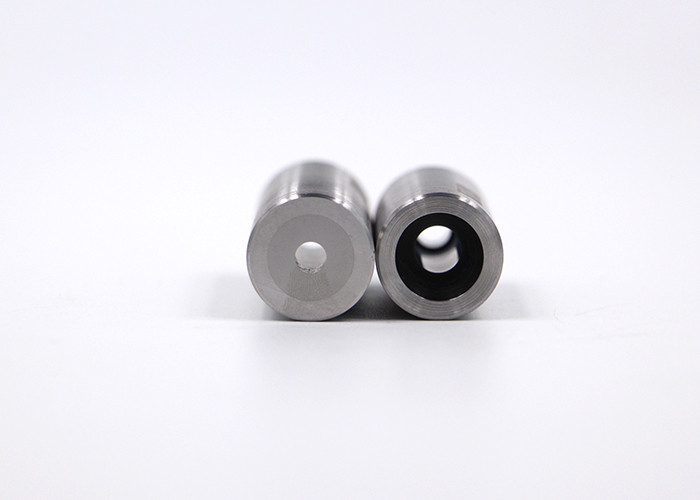

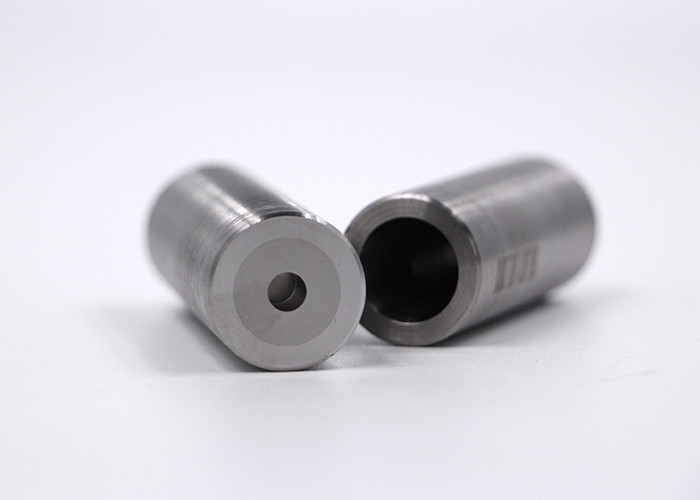

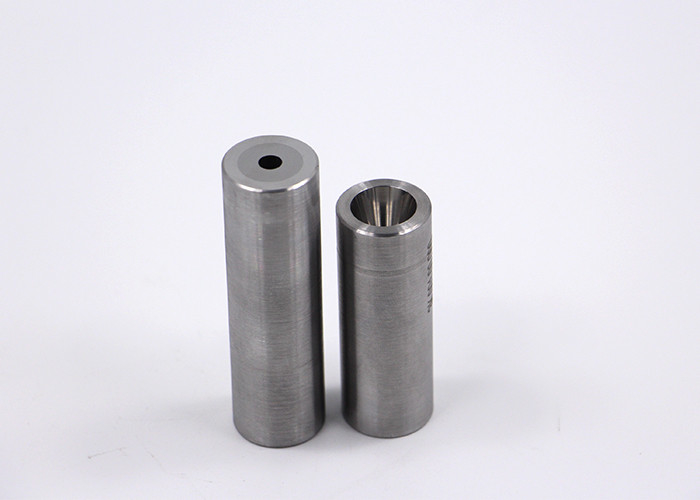

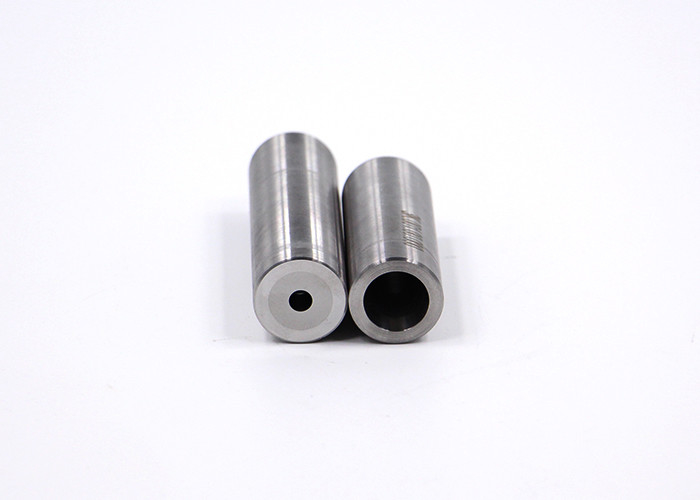

Carbide Shear Dies Heat-Treated Coated for Extended Lifespan Compatible with Stainless Steel Copper Aluminum Processes 0.1-8mm Metal Sheets

Product Details

Product Name:

Carbide Shear Dies

Size:

Customized

Mould Life:

250000-300000shots

Application:

Car

Runner:

Hot Runner/Cold Runner

Advantage:

Strong Strength

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T, L/C, D/A

Supply Ability

1000 PCS Month

Tungsten Carbide Cold Heading Die High-Temperature Resistant for Metal Fastener Shaft Parts Forming Replaceable Segmented Modules Low Maintenance Cost Wear Impact Resistant

Get Best Price

Segmented Hex Die Wear Thermal Fatigue Resistant for Stainless Carbon Steel Cold Hot Forging Replaceable Modules Easy Maintenance

Get Best Price

Tungsten Carbide Molds High-Strength High-Temperature Corrosion Resistant for Complex Environments Long-Lasting Durability

Get Best Price

High-Strength Tungsten Carbide Molds Wear Heat Resistant Long-Lasting for Precision Electronics Automotive Components

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Insert Material:We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Products Advantages

1. Exceptional Wear Resistance & Extended Lifespan
Tungsten Carbide Base + TiAlN Coating: 300% longer service life vs. conventional steel dies.
Maintains cutting-edge sharpness for over 500,000 cycles with ≤0.003mm dimensional tolerance drift.
2. Precision Cutting & Material Versatility
Achieves burr-free edges (±0.01mm accuracy) for sheet thicknesses from 0.1mm to 8mm.
Compatible with stainless steel, copper, aluminum alloys, and high-strength steels (HRC ≤55).
3. High-Speed Production Efficiency
Supports continuous operation at 800+ strokes/minute with integrated cooling channels to reduce thermal stress.
Modular design enables tool changes in ≤3 minutes, slashing downtime by 60%.
