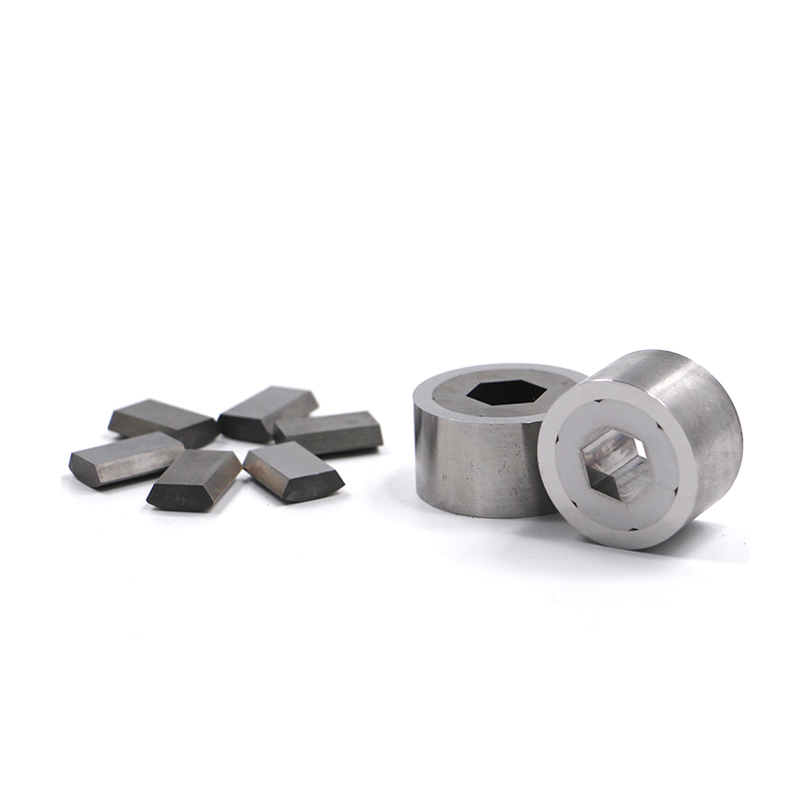

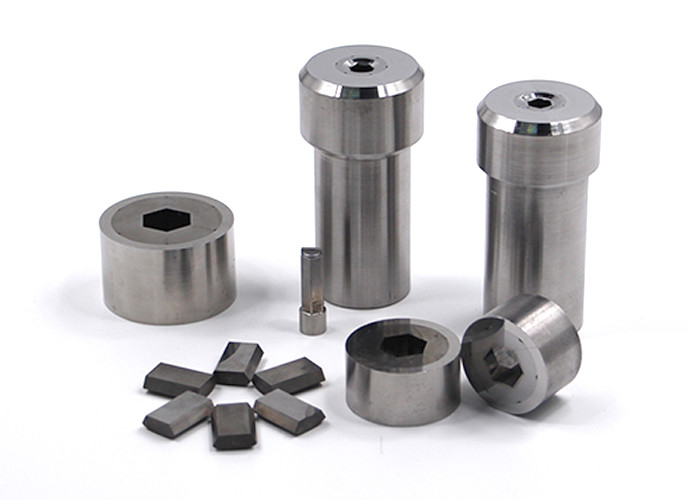

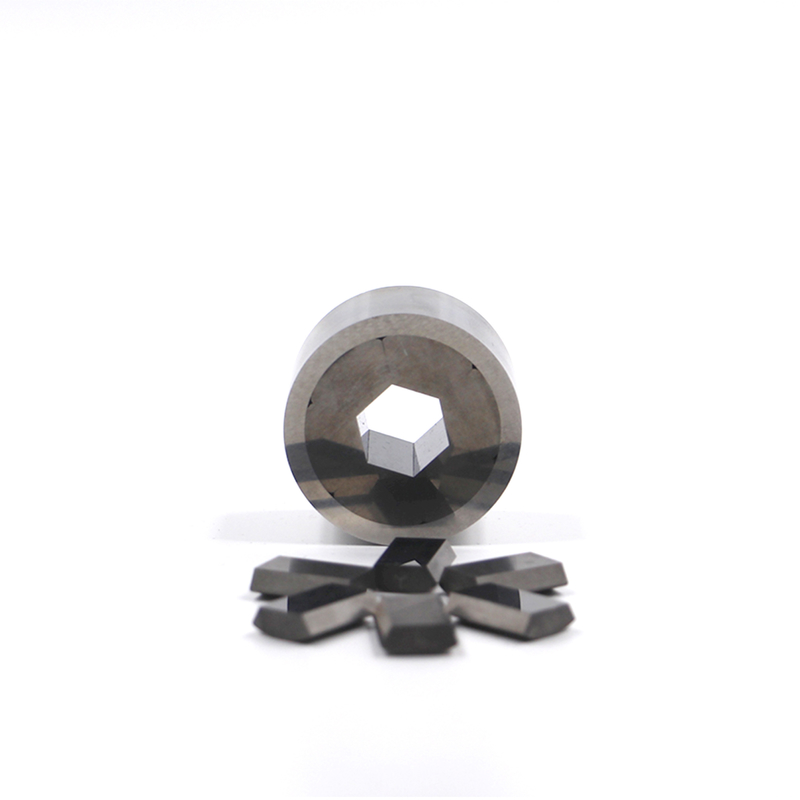

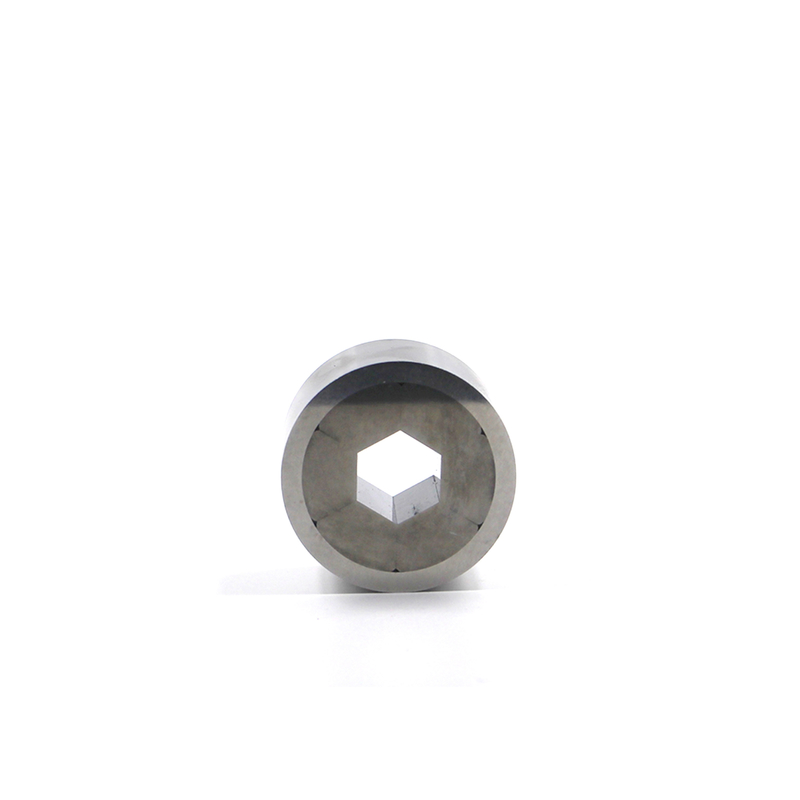

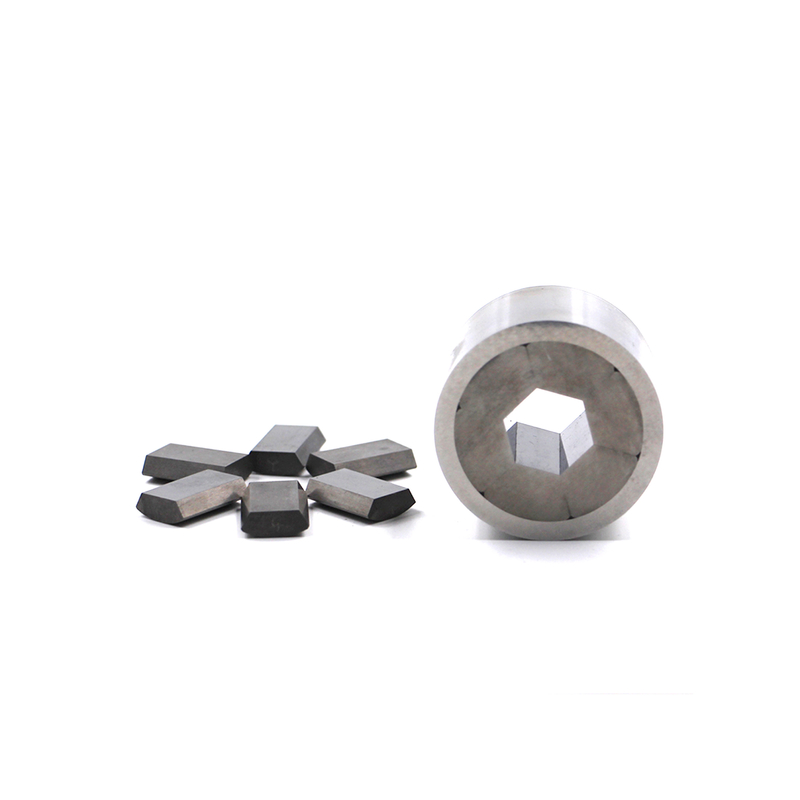

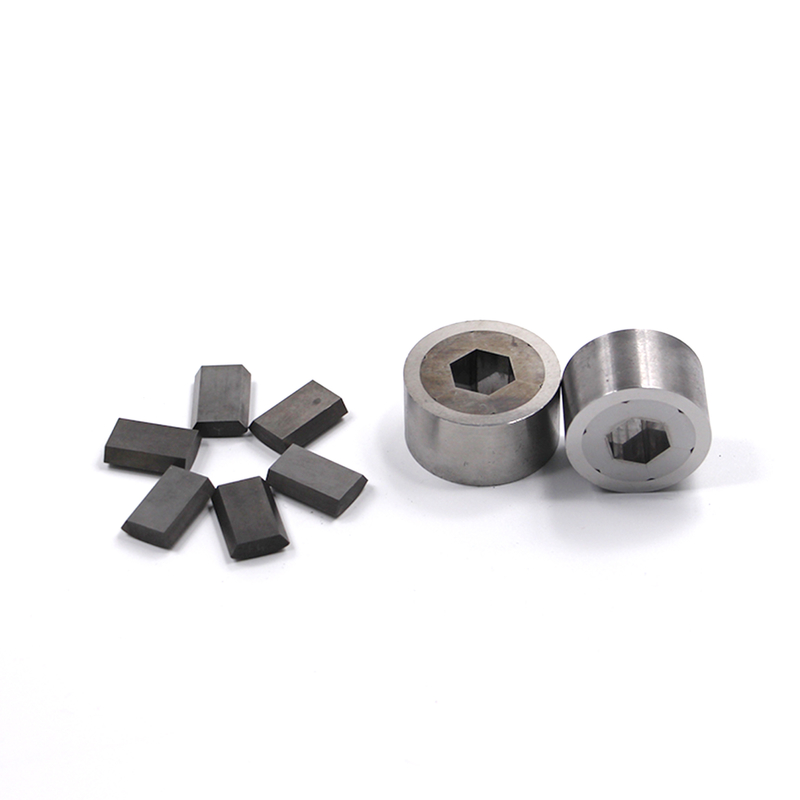

Segmented Hex Die Wear Thermal Fatigue Resistant for Stainless Carbon Steel Cold Hot Forging Replaceable Modules Easy Maintenance

Segmented Hex Die Wear Thermal Fatigue Resistant for Stainless Carbon Steel Cold Hot Forging Replaceable Modules Easy Maintenance

Precision Devices Micro Screws

Watches Micro Screws

Electronics Micro Screws

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Product Name:
Segmented Hex Die
Size:
Customized
Material:
Carbide Die
Surface Treatment:
Customer's Request
Application:
Household Product Mold
Mould Life:
250000-300000shots
Drawing Format:
2D/(PDF/CAD)3D(IGES/STEP)
Type:
Hardware Mold
Usage:
Screw Producing
Hardness:
45-68 HRC
Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
USD+2-1PCS
Packaging Details
Carton Box
Delivery Time
10-20Days
Payment Terms
T/T
Supply Ability
1000PCS+Month
Product Description
Products Description
Insert Material:We can suggest different carbide material according to different usage.


Item

Co

Grain Size

Density

Hardness

TRS

Impact Strength

Application

Mediun-Grained



Co%

μm

g/cm²

HRA

Kgf/mm²

Kgf/m-cm²



KG2

6.50%

2~3

14.90

90.5

320

0.28

Drawing die

KG3

9%

2~3

14.61

89.3

340

0.52

Extrusion die

KG5

12%

2~3

14.31

88.3

340

0.58

Extrusion die

KG6

14%

2~3

14.12

87.3

320

0.65

Extrusion die

Coarse-Grained

ST6

15%

3~6

13.80

86.0

270

0.78

Stainless steel

ST7

20%

2~6

13.40

85.3

270

0.80

Stainless steel

EA65

18%

2~6

13.73

85.0

300

0.80

Carbon steel screw/cutting die

VA80

20%

3~6

13.58

84.0

280

0.85

Impact
resistance

VA90

22%

6~9

13.39

82.5

240

0.90

Impact
resistance

EA90

24%

2~6

13.22

82.8

270

0.90

Impact
resistance



Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)

















Chemical Composition

C

Si

Mn

P

S

Cr

Mo

V

W

Content (%)

0.39

1.15

0.44

0.021

0.007

5.12

1.3

0.94

0.06



Cu

Ni

















0.05

0.06
















Surface Treatment:TiN / TiAlN
Process

Segmented Hex Die Wear  Thermal Fatigue Resistant for Stainless Carbon Steel Cold Hot Forging Replaceable Modules Easy Maintenance 0
Factory


Segmented Hex Die Wear  Thermal Fatigue Resistant for Stainless Carbon Steel Cold Hot Forging Replaceable Modules Easy Maintenance 1
About Us





Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States "Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Exhibition


Segmented Hex Die Wear  Thermal Fatigue Resistant for Stainless Carbon Steel Cold Hot Forging Replaceable Modules Easy Maintenance 2
Inspection Equipment


Segmented Hex Die Wear  Thermal Fatigue Resistant for Stainless Carbon Steel Cold Hot Forging Replaceable Modules Easy Maintenance 3
Packing and Delivering





Segmented Hex Die Wear  Thermal Fatigue Resistant for Stainless Carbon Steel Cold Hot Forging Replaceable Modules Easy Maintenance 4
