Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking

Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking

M3 Micro Pan Head Screws

Carbon Steel Micro Pan Head Screws

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Contact Us

Request A Quote
Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking
Product Details
Product Name:
Screw Second Punch
Material:
Carbide Die
PackSurface Treatmenting:
Carton BCustomer's Requestox
Keyword:
OEM Assembly
Mould Life:
250000-300000shots
Application:
Industry
Function:
Multifunctional
Surface Finishing:
Custom Surface Texture
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
USD+2-1PCS
Packaging Details
Carton Box
Delivery Time
10-20Days
Payment Terms
T/T
Supply Ability
1000PCS+Month
RELATED PRODUCTS
Good price Customized Long Life Screw Second Punch Rockwell Hardness Tester For Products online Video

Customized Long Life Screw Second Punch Rockwell Hardness Tester For Products

Get Best Price
Good price New Design TiN Coating Screw Second Punch China Supplier online Video

New Design TiN Coating Screw Second Punch China Supplier

Get Best Price
Good price TiN Coating Second Punch Flat Head Header Punch 7981 M2 M42 12x25 online Video

TiN Coating Second Punch Flat Head Header Punch 7981 M2 M42 12x25

Get Best Price
Good price Main Design M42 Screw Die Header Second Punch TIN Coating Surface Polishing online Video

Main Design M42 Screw Die Header Second Punch TIN Coating Surface Polishing

Get Best Price
Contact Us
+8613983025528
sales1@citool.com
86-023-60338218-60338218
Contact Now
Product Description
Products Description

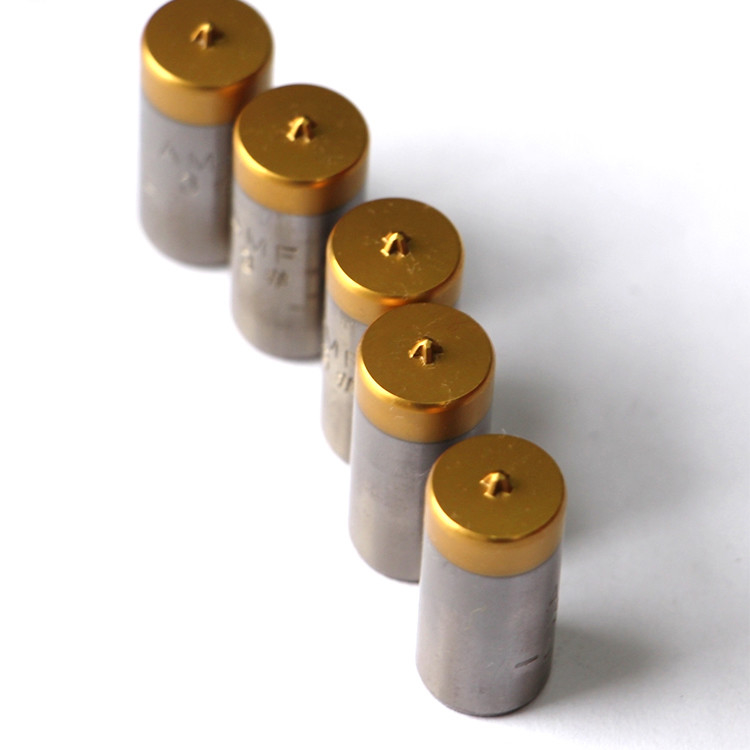

Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking 0

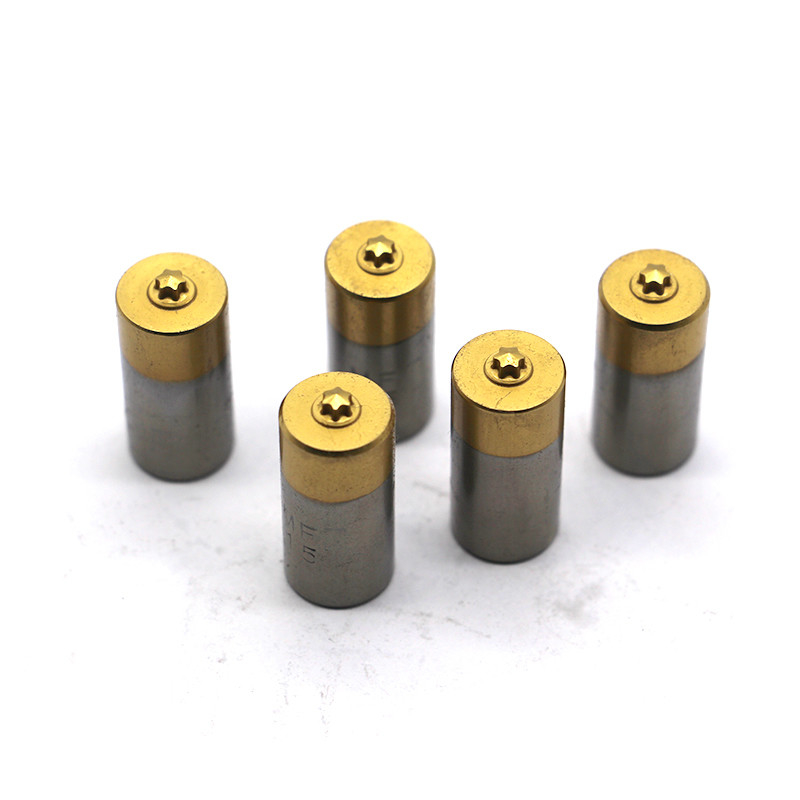

Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking 1

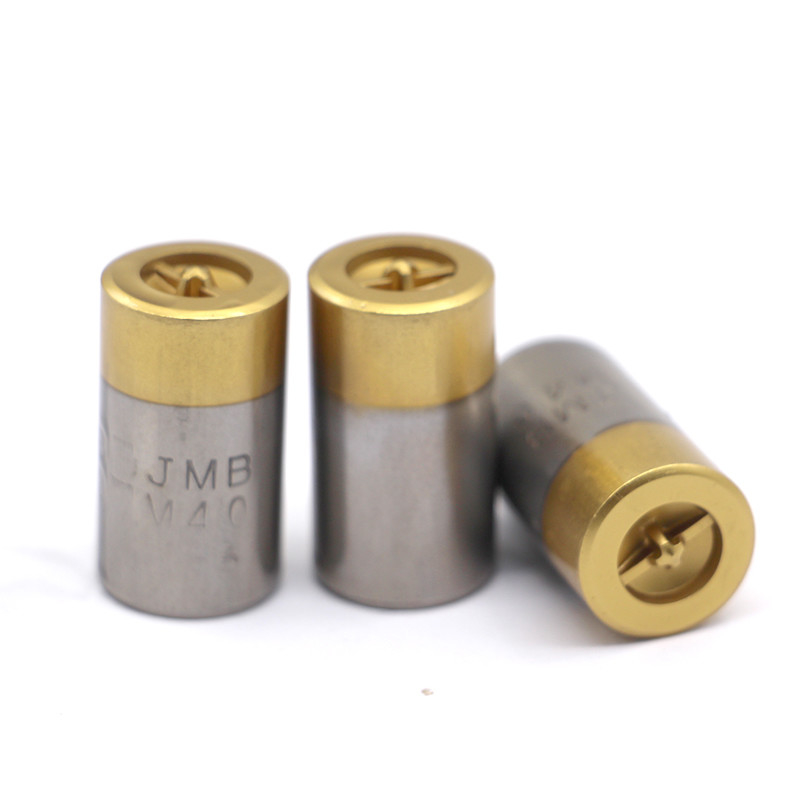

Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking 2
Material:M42(H59)＞M35(H55)＞M2(H9)

H9(M2)

















Chemical Composition

C

Si

Mn

P

S

Cr

Mo

V

W

Content (%)

0.85

0.33

0.34

0.027

0.005

4.12

4.73

1.78

5.74



Cu

Ni

















0.12

0.24
















M42(SKH59)

















Chemical Composition

C

Si

Mn

P

S

Cr

Mo

V

W

Content (%)

1.06

0.3

0.31

0.018

0.002

3.74

9.29

1.1

1.34



Cu

Ni

Co















0.07

0.29

7.97














Header punch standard:
JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .
Surface Treatment:
Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated
Standard size

Weight

12x25mm

25g/pc

14x25mm

30g/pc

18x25mm

50g/pc

23x25mm

80g/pc


Process

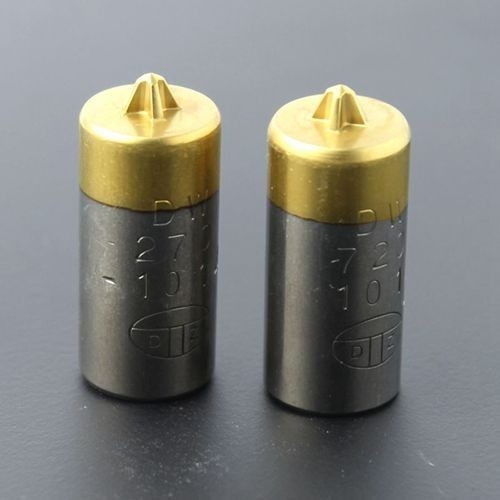

Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking 3
Factory

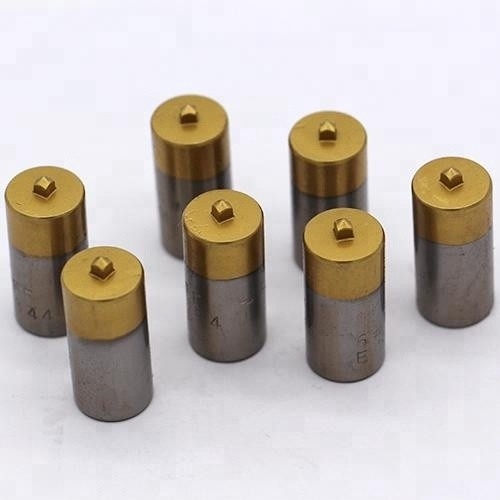

Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking 4
Exhibition

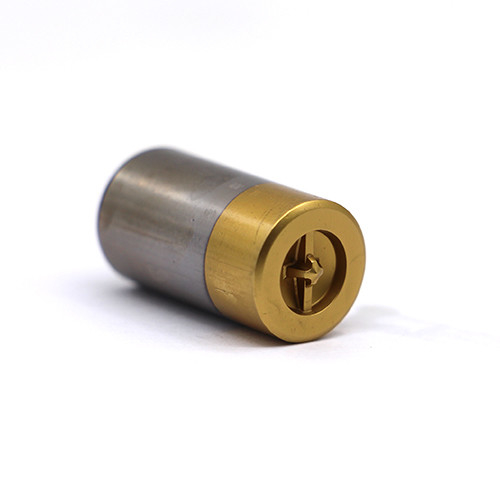

Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking 5
Inspection Equipment


Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking 6
Packing and Delivering


Hard Alloy Punches High-Density Heat-Resistant for Precision Electronic Connectors and Micro Motor Core Blanking 7
FAQ

Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity,Surface treatment.

Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.

Q3: What is your minimum order quantity (MOQ)?
A: Our MOQ varies depending on the product. Please contact our sales team for detailed information.

Q4: What payment methods do you accept?
A: We accept various payment methods, including wire transfer (T/T), letter of credit (L/C), and PayPal.

Q5: What is your after-sales service like?
A: We provide comprehensive after-sales service, including technical support, product repair, and replacement.

Q6: How can I get your product catalog and quotation?
A: Please contact our sales team through our official website or email, and we will send you the product catalog and quotation as soon as possible.
