Name: High Precision Carbide Die for Screw Extrusion Mould
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: customized
Price: 250.00 USD
Availability: InStock

Home > Products > Carbide Punches And Dies >

High Precision Carbide Die for Screw Extrusion Mould

high precision carbide die

screw extrusion mould die

carbide die for extrusion

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Model Number:

customized

Request A Quote

High Precision Carbide Die for Screw Extrusion Mould

Product Details

Shaping Mode:

Extrusion Mould

Product Material:

Steel

Surface Treatment:

Polishing

Case Material:

H13(SKD61) HRC46-48

Co Content:

6.50% - 24%

Grain Size:

2~3 μm - 6~9 μm

Density:

13.22 - 14.90 G/cm²

Hardness:

82.5 - 90.5 HRA

TRS:

240 - 340 Kgf/mm²

Impact Strength:

0.28 - 0.90 Kgf/m-cm²

C Content:

0.39%

Cr Content:

5.12%

Mo Content:

1.3%

V Content:

0.94%

Relative Deviation:

0.005mm

Payment & Shipping Terms

Minimum Order Quantity

High Precision Carbide Die for Screw Extrusion Mould

Get Best Price

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

Get Best Price

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

Get Best Price

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

Get Best Price

+8613983025528

hou@citool.com

86-023-60338218-60338218

Contact Now

Product Description

High Precision Polishing Forging Mould Shaping Mode Nut Fastener Forming Dies

Product Specifications

Shaping Mode	Extrusion Mould
Product Material	Steel
Product	Vehicle Mould
Surface Treatment	Polishing
Application	Screws Making
Size	Customer Size Accepted
Delivery Time	15-20 Days
Packing	Carton Case
Service	OEM ODM Customized

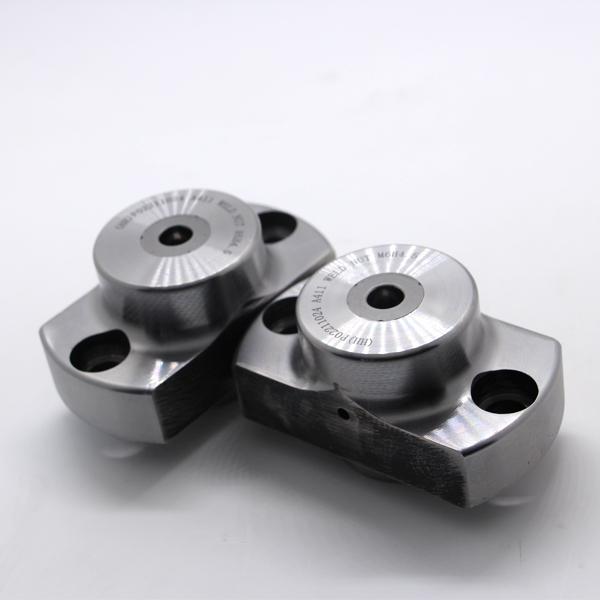

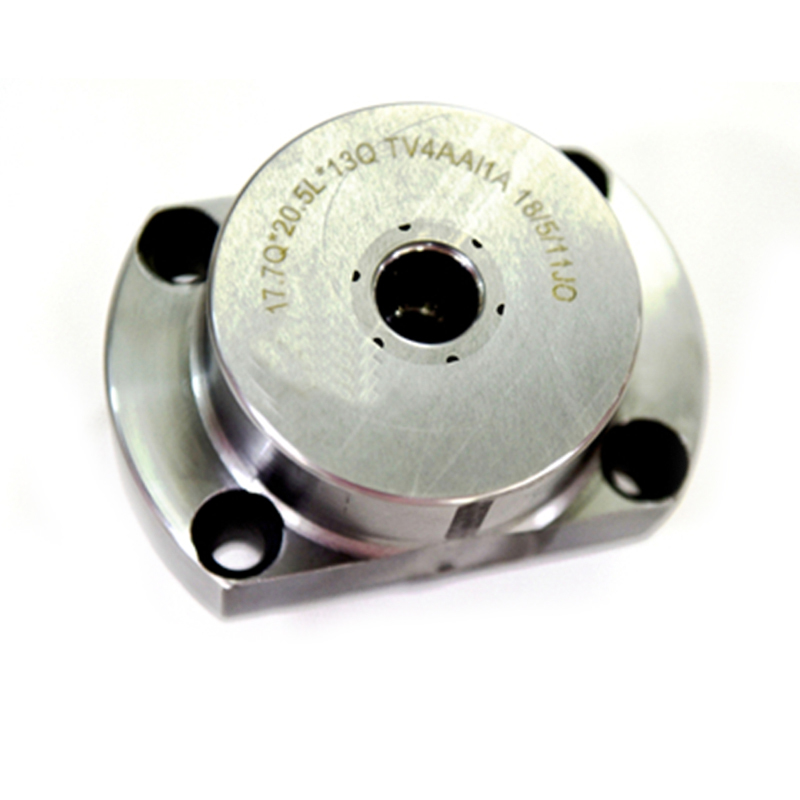

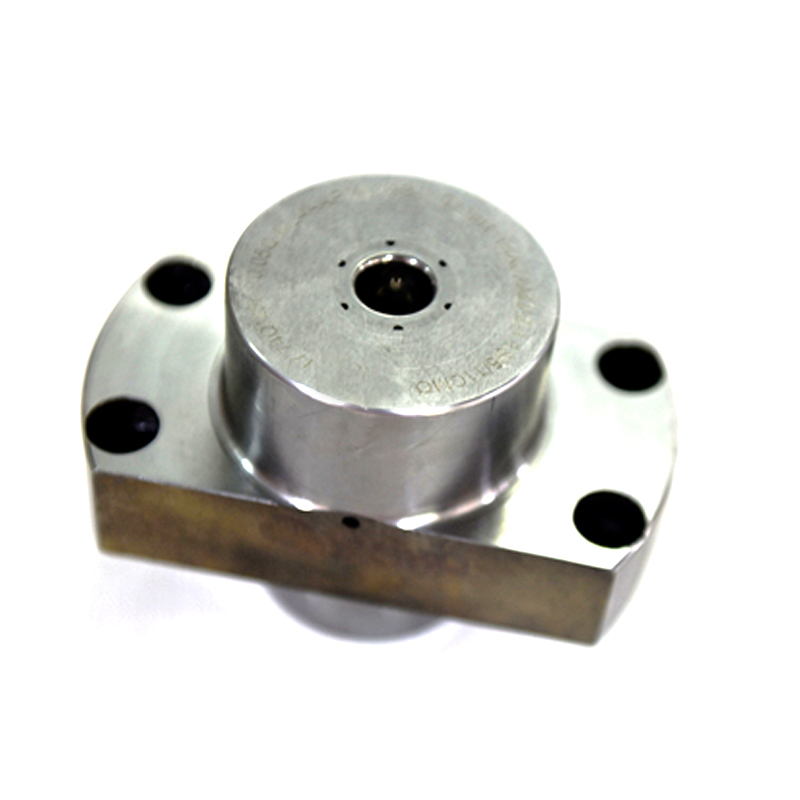

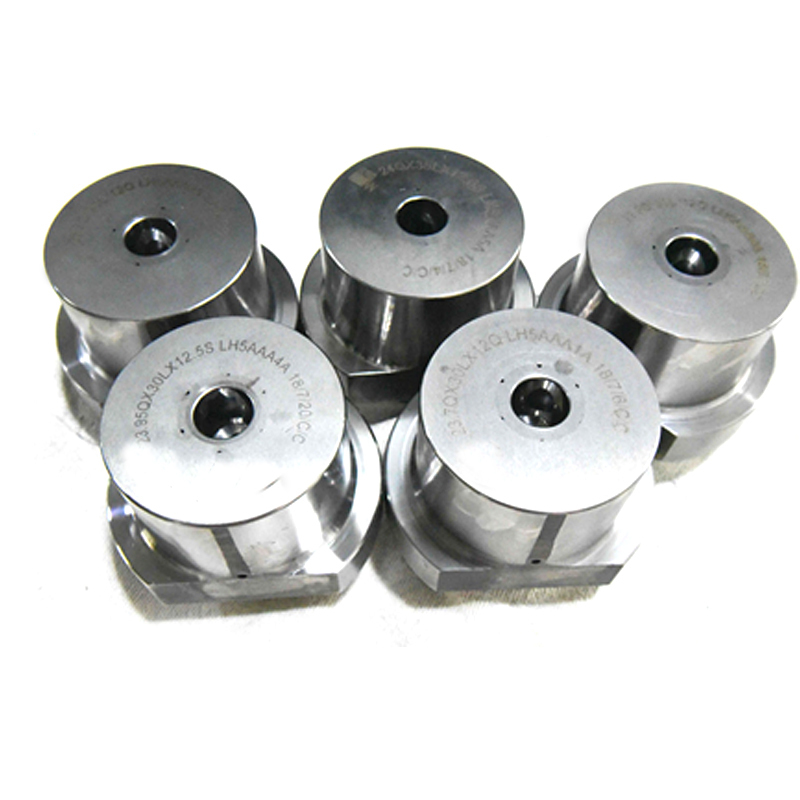

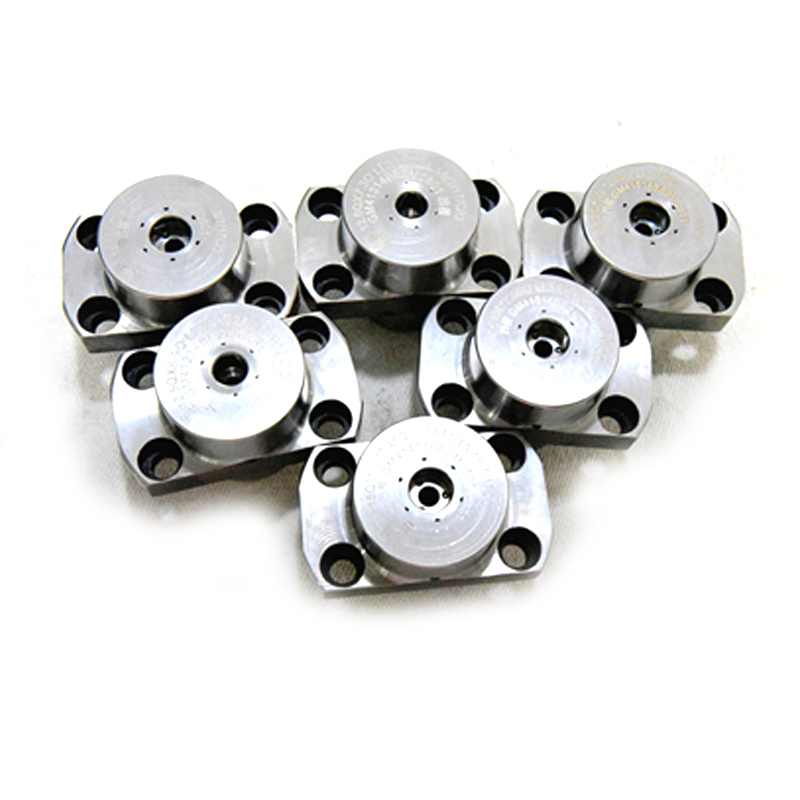

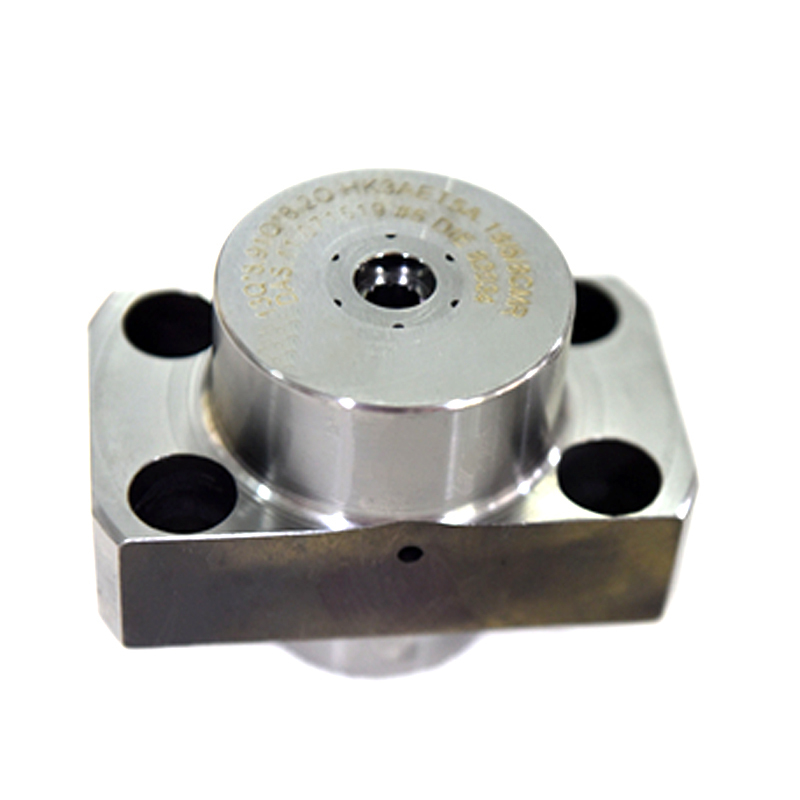

Product Images

Insert Material Options

We provide various carbide materials tailored for different applications:

Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
KG2	6.50%	2~3 μm	14.90 g/cm²	90.5 HRA	320 Kgf/mm²	0.28 Kgf/m-cm²	Drawing die
KG3	9%	2~3 μm	14.61 g/cm²	89.3 HRA	340 Kgf/mm²	0.52 Kgf/m-cm²	Extrusion die
KG5	12%	2~3 μm	14.31 g/cm²	88.3 HRA	340 Kgf/mm²	0.58 Kgf/m-cm²	Extrusion die
KG6	14%	2~3 μm	14.12 g/cm²	87.3 HRA	320 Kgf/mm²	0.65 Kgf/m-cm²	Extrusion die

Case Material

Primary case material: H13(SKD61) HRC46-48

Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94

Surface Treatment

Available treatments: TiN / TiAlN

Manufacturing Facility

About Our Company

Chongqing Henghui Precision Mold Co., Ltd. specializes in high-precision mold manufacturing with advanced CNC equipment including lathes, machining centers, and grinding machines. Our facility features comprehensive testing equipment like Rockwell Hardness Testers and 3D Measuring Instruments.

We utilize premium tungsten carbide materials and professional vacuum heat treatment to produce molds with exceptional precision (standard deviation ≤0.005mm, concentricity ≤0.01mm). Certified under ISO9001:2015, we serve global clients across Southeast Asia, Europe, and the United States with our commitment to quality, technology, and customer service.

Packaging & Delivery

Standard packaging: Carton Box (Export Standard) or customized per client requirements

Delivery time: 12-45 days depending on order quantity

Frequently Asked Questions

Q: How can I get a quotation?

A: Please provide product drawings, material specifications, quantity requirements, and desired surface treatment for prompt quotation.

Q: What is your production lead time?

A: Lead time varies based on order quantity and destination country. Typical delivery ranges from 15-45 days.
