Non Standard PUNCH And DIE SET For Rectangular Parts

Non Standard PUNCH And DIE SET For Rectangular Parts

stamping dies and punches

precision punches & dies

Rectangular Parts Punch and Die

Place of Origin:

Chongqing, China (Mainland)

Brand Name:

PUNCH and DIE SET

Model Number:

PUNCH and DIE SET

Contact Us

Request A Quote
Product Details
Shaping Mode:
Punching Mold
Product Material:
Steel
Product:
PUNCH And DIE SET
Product Name:
PUNCH And DIE SET
Material:
Die Steel And Cemented Carbide FOR PUNCH And DIE SET
Size:
Custimized
Business Type:
Manufacture
Usage:
Cold Heading Standard Parts
Case Material:
H13, SKD61, Or As Client's Requirements
Precision:
0.001mm
Service:
OEM/ODM
Sample:
Avaliable
Hardness:
According To The PUNCH And DIE SET Material
Port:
Chongqing, Shanghai, Shenzhen Or As Client's Need
Payment & Shipping Terms
Minimum Order Quantity
1 Set/Sets
Price
US $50-5,000 / Sets
Packaging Details
Wooden box for Screw Punch Die; export standard package for Screw Punch Die, or as client's requirement.
Delivery Time
15 days
Supply Ability
50000 Set/Sets per Month PUNCH and DIE SET
Product Description
Products Description

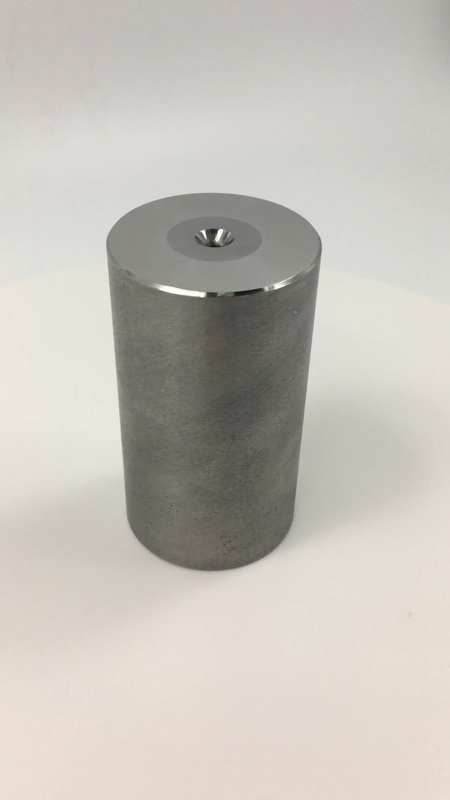

Non Standard PUNCH And DIE SET For Rectangular Parts 0

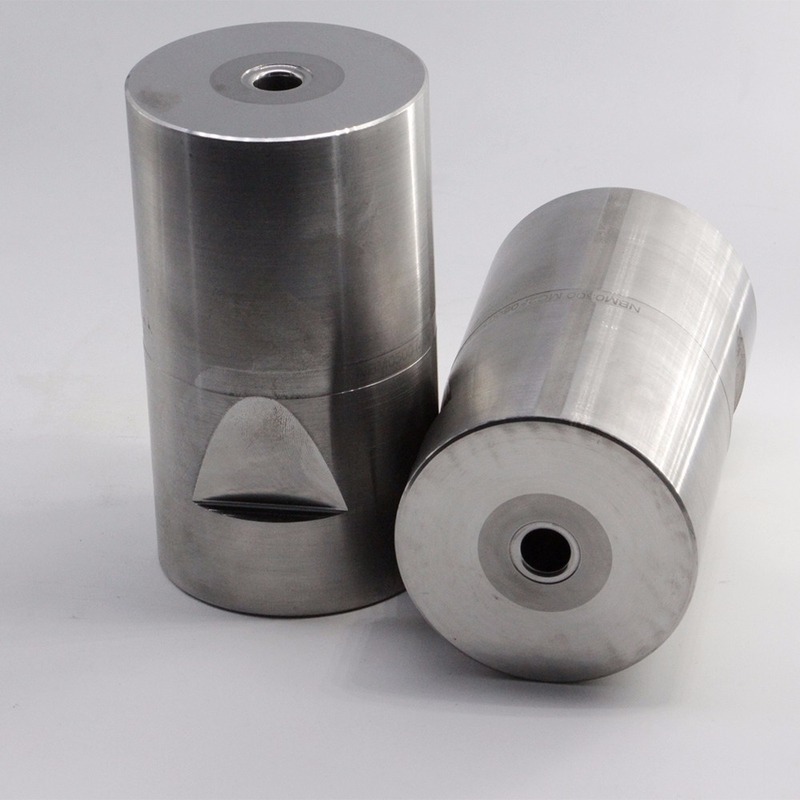

Non Standard PUNCH And DIE SET For Rectangular Parts 1

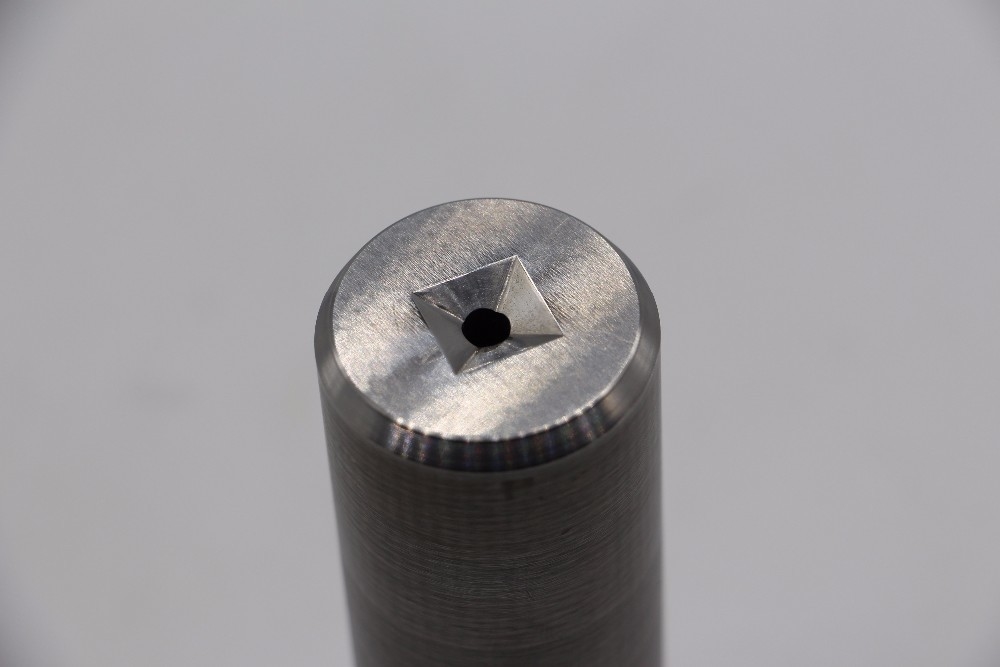

Non Standard PUNCH And DIE SET For Rectangular Parts 2
Main material: Reasonable choice of carbide material will greatly improve the service life of die

Item
Co
Grain Size
Density
Hardness
TRS
Impact Strength
application
Medium-Grained

Co%
μm
g/cm²
HRA
Kgf/mm²
Kgf/m-cm²

KG2
6.5%
2~3
14.90
90.5
320
0.28
Drawing die
KG3
9%
2~3
14.61
89.3
340
0.52
Extrusion die
KG5
12%
2~3
14.31
88.3
340
0.58
Extrusion die
KG6
14%
2~3
14.12
87.3
320
0.65
Extrusion die
Coarse
-Grained
ST6
15%
3~6
13.80
86.0
270
0.78
Stainless steel
ST7
20%
2~6
13.40
85.3
270
0.80
Stainless steel
EA65
18%
2~6
13.73
85.0
300
0.80
Carbon steel screw/cutting die
VA80
20%
3~6
13.58
84.0
280
0.85
impact resistance
VA90
22%
6~9
13.39
82.5
240
0.90
impact resistance
Inspection equipment
Non Standard PUNCH And DIE SET For Rectangular Parts 3
Factory
Non Standard PUNCH And DIE SET For Rectangular Parts 4
Non Standard PUNCH And DIE SET For Rectangular Parts 5
Non Standard PUNCH And DIE SET For Rectangular Parts 6
Non Standard PUNCH And DIE SET For Rectangular Parts 7

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Exhibition
Non Standard PUNCH And DIE SET For Rectangular Parts 8
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
