Home > products > Carbide Punches And Dies >
Carbide Punches And Dies For Rectangular Die Customized

Carbide Punches And Dies For Rectangular Die Customized

Rectangular Carbide Punches And Dies

Customized Carbide Punches And Dies

VA80 Rectangular Die

Place of Origin:

Chongqing, China (Mainland)

Brand Name:

PUNCH and DIE SET

Certification:

//

Model Number:

PUNCH and DIE SET

Contact Us

Request A Quote
Carbide Punches And Dies For Rectangular Die Customized
Carbide Punches And Dies For Rectangular Die Customized Carbide Punches And Dies For Rectangular Die Customized Carbide Punches And Dies For Rectangular Die Customized Carbide Punches And Dies For Rectangular Die Customized Carbide Punches And Dies For Rectangular Die Customized
Product Details
Shaping Mode:
Punching Mold
Product Material:
H13
Product:
Rectangular Die
Product Name:
Rectangular Die
Material:
VA80
Size:
Custimized
Business Type:
Manufacture
Usage:
Cold Heading Standard Parts
Case Material:
H13, SKD61, Or As Client's Requirements
Precision:
0.001mm
Service:
OEM/ODM
Sample:
Avaliable
Hardness:
According To The PUNCH And DIE SET Material
Port:
Chongqing, Shanghai, Shenzhen Or As Client's Need
Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
US $50-5,00 /PC
Packaging Details
Wooden box for Screw Punch Die; export standard package for Screw Punch Die, or as client's requirement.
Delivery Time
15 days
Payment Terms
T/T, Western Union
Supply Ability
50000 PCS per Month Rectangular Die
RELATED PRODUCTS
Good price Customized Tungsten Carbide Die For High-Speed Cutting Of Screw Torx Punches online

Customized Tungsten Carbide Die For High-Speed Cutting Of Screw Torx Punches

Get Best Price
Good price High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating online Video

High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating

Get Best Price
Good price H13 Material Carbide Punches And Dies , Screws Dies First Punch Case High Precision online

H13 Material Carbide Punches And Dies , Screws Dies First Punch Case High Precision

Get Best Price
Good price Hexagonal Cold Forming Dies , Stamping Dies And Punches Corrosion Resistance online

Hexagonal Cold Forming Dies , Stamping Dies And Punches Corrosion Resistance

Get Best Price
Contact Us
+8613272665780
sales2@citool.com
86-023-60338218-60338218
Contact Now
Product Description
Product description:
With High wear resistance and good impact toughness,made of 100% virgin cemented carbide raw materials,The Tungsten Carbide Cold Heading Stamping Dies are used for manufacturing punching dies for screws, screw caps, etc.The non-standard sizes of tungsten carbide dies can also be produced as per customer requests.

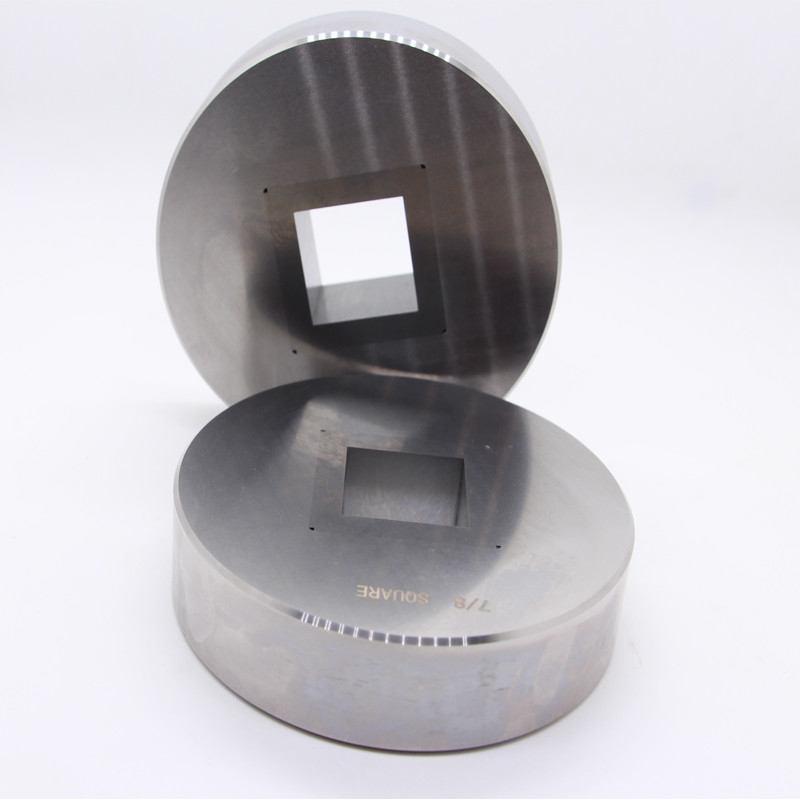

Carbide Punches And Dies For Rectangular Die Customized 0

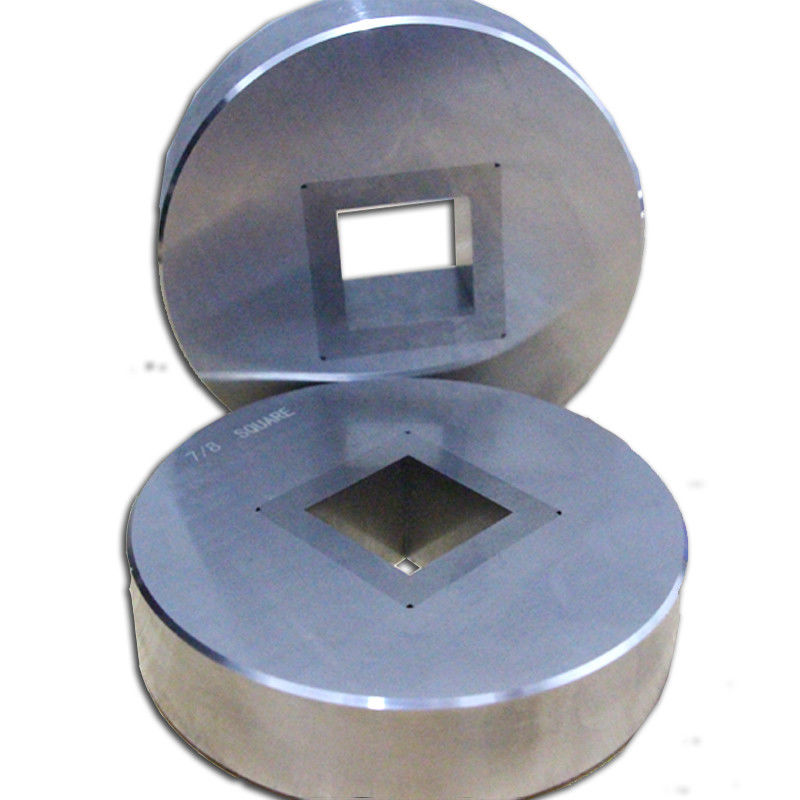

Carbide Punches And Dies For Rectangular Die Customized 1Carbide Punches And Dies For Rectangular Die Customized 2

Insert Material:

We can suggest different carbide material according to different usage.

Item
Co
Grain Size
Density
Hardness
TRS
Impact Strength
Application
Mediun-Grained

Co%
μm
g/cm²
HRA
Kgf/mm²
Kgf/m-cm²

KG2
6.50%
2~3
14.90
90.5
320
0.28
Drawing die
KG3
9%
2~3
14.61
89.3
340
0.52
Extrusion die
KG5
12%
2~3
14.31
88.3
340
0.58
Extrusion die
KG6
14%
2~3
14.12
87.3
320
0.65
Extrusion die
Coarse-Grained
ST6
15%
3~6
13.80
86.0
270
0.78
Stainless steel
ST7
20%
2~6
13.40
85.3
270
0.80
Stainless steel
EA65
18%
2~6
13.73
85.0
300
0.80
Carbon steel screw/cutting die
VA80
20%
3~6
13.58
84.0
280
0.85
Impact resistance
VA90
22%
6~9
13.39
82.5
240
0.90
Impact resistance
EA90
24%
2~6
13.22
82.8
270
0.90
Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48
SKD61(H13)








Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.39
1.15
0.44
0.021
0.007
5.12
1.3
0.94
0.06

Cu
Ni








0.05
0.06







Carbide Punches And Dies For Rectangular Die Customized 3
Carbide Punches And Dies For Rectangular Die Customized 4
