High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating

High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating

Tungsten Carbide Punch Pins

TiN Coating Tungsten Carbide Punch

HSS Punch Pins

Place of Origin:

Chongqing

Brand Name:

Henghui

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Material:
Carbide,SKD11,HSS,A2,M2,D2,ASP23,ASP60
Type:
Punches And Dies
Surface Treatment:
TiCN,TiN, Aitain,Ticrn,Nitrided,
Tolerance:
0.003mm-0.01mm
Machine Type:
Punching Machine
Sample:
Available
Delivery Times:
3-15 Working Days
MOQ:
10 Pcs
Drawing Format:
2D/(PDF/CAD)3D(IGES/STEP)
Usage:
Industrial Field
Payment & Shipping Terms
Minimum Order Quantity
10
Price
10$
Packaging Details
carbon die
Delivery Time
10-30 days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000
Product Description

High Precision HSS/Tungsten Carbide Punch Pins Stamping Dies With TiN Coating

Material:

Carbide>M42(H59)>M35(H55)>M2(H9)

H9(M2)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.85
0.33
0.34
0.027
0.005
4.12
4.73
1.78
5.74

Cu
Ni








0.12
0.24







M42(SKH59)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
1.06
0.3
0.31
0.018
0.002
3.74
9.29
1.1
1.34

Cu
Ni
Co







0.07
0.29
7.97







Surface Treatment:

TILAN
Product Name:
Pin Punch
Material:
M2/M42/M35/Carbide
Profile tolerance:
+/-0.006MM~ +/-0.008MM.
surface treatment:
Polishing,coating Treatment,Nitriding treatment,measuring,ETC..
Hardness
HRA60-68
Measuring instruments:
VMS,profile projector,pressure gauge,hardness tester,magnifying glass.etc...
Usage
For making bolts or nuts
Design:
Standard or un-standard parts,according to customer's requirement.
Processing machinery:
Wire EDM, CNC milling and turning, laser cutting, drilling, grinding, bending, stamping, welding, etc.
Drawing software:
AUTOCAD,pro-engineer,UG,moldflow,etc..
Application:
machinery equipment,Heavy industries parts&tools,medicine,chemical,etc...
Quality control:
100% inspection before shipping.
Customization:
OEM ODM service



Factory

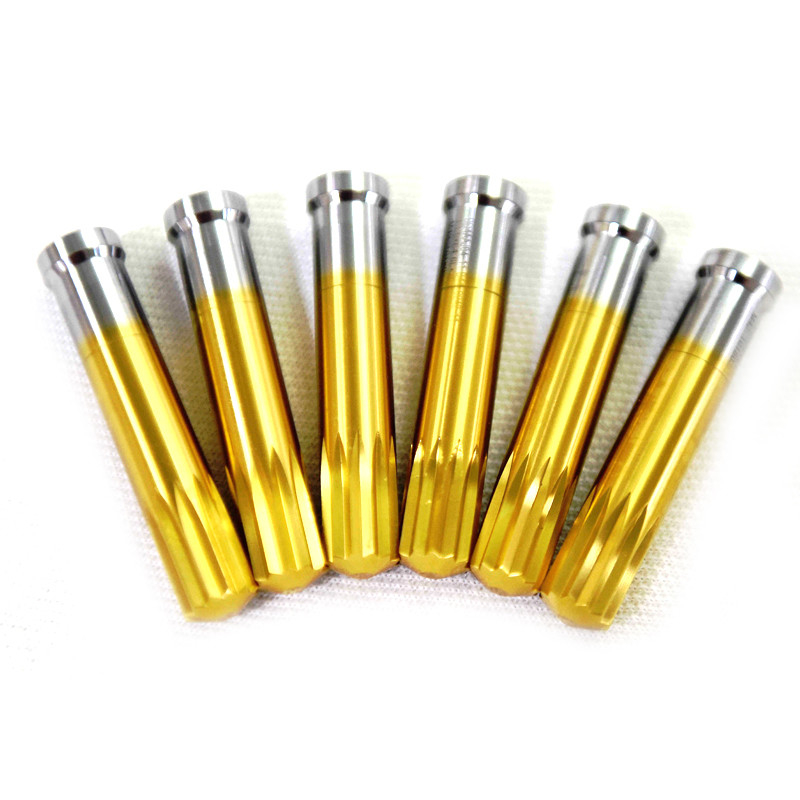

High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating 0

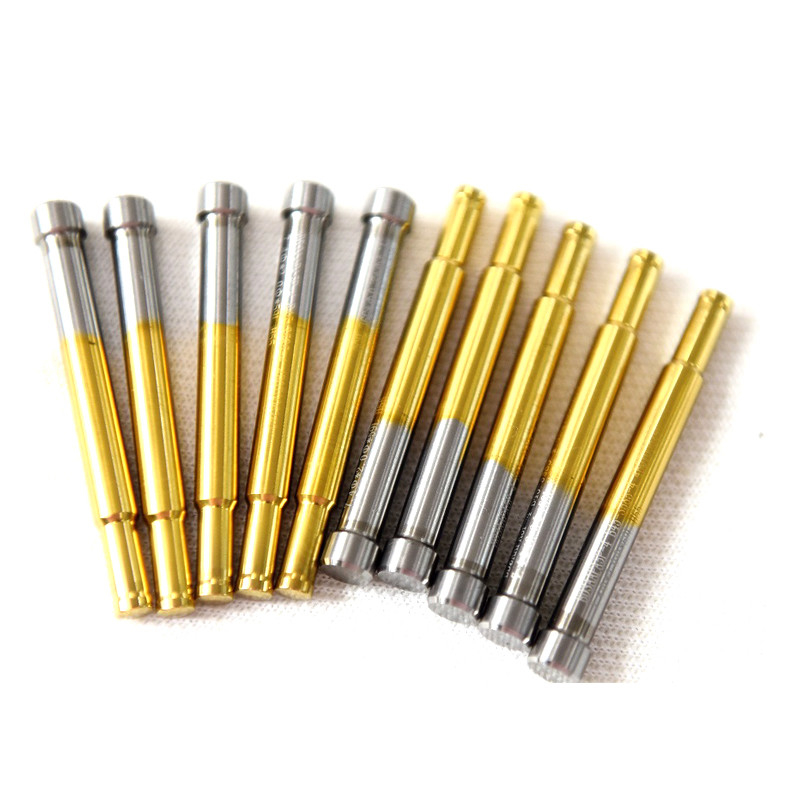

High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating 1

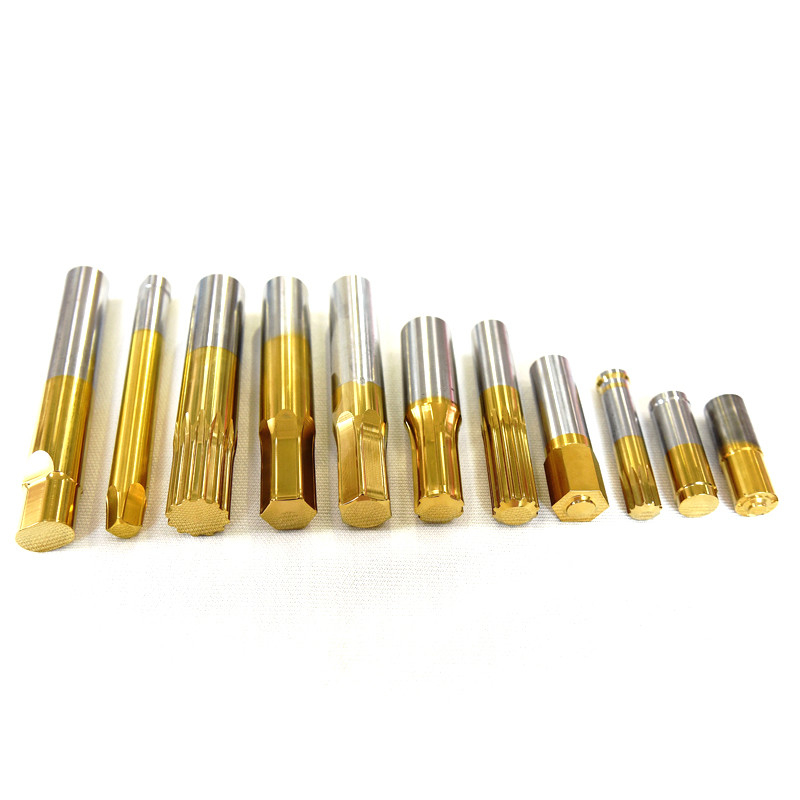

High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating 2

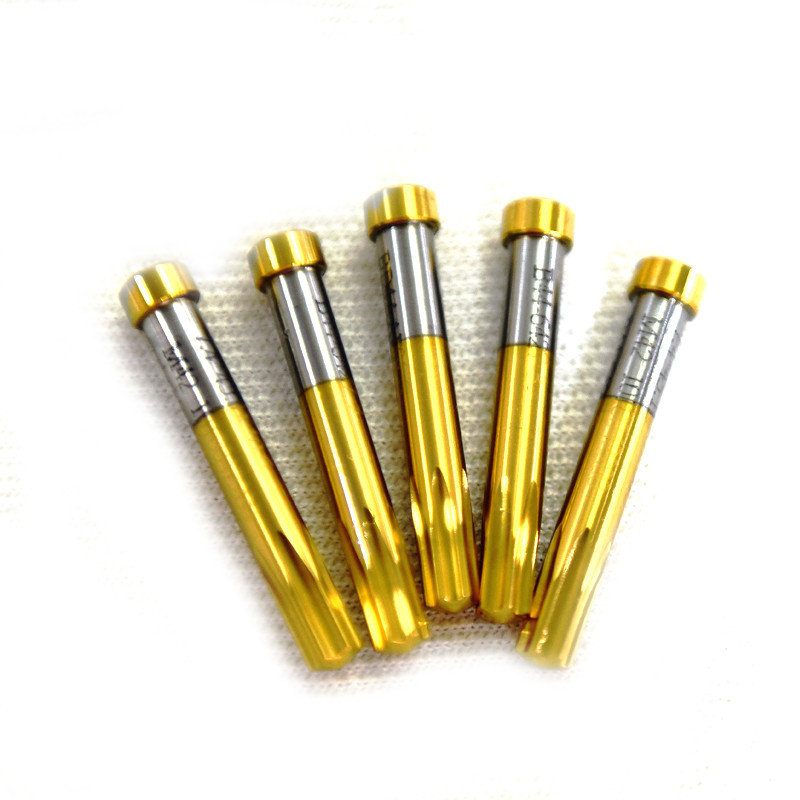

High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating 3

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Exhibition
High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating 4
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
Packing and Delivering
High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating 5
Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.
Inspection equipment
High Precision HSS / Tungsten Carbide Punch Pins Stamping Dies With TiN Coating 6
FAQ
Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.
