Name: DC53 Thread Rolling Dies for Self Tapping Screw Making Molds
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 250.00 USD
Availability: InStock

Home > products > Carbide Punches And Dies >

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

DC53 thread rolling dies

self tapping screw molds

carbide thread rolling dies

Place of Origin:

Chongqing, China

Brand Name:

Henghui

Model Number:

Customized

Request A Quote

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

Product Details

Shaping Mode:

Die Casting

Product Material:

DC53

Material Type:

HSS

Size Customization:

Customer's Drawing

Die Type:

A/B

Material Composition:

DC53+N Or H9+N

Chemical Composition:

C:0.95%, Si:0.89%, Mn:0.3%, P:0.018%, S:0.006%, Cr:7.7%, Mo:1.92%, V:0.75%, W:0.91%

Machine Type:

Various Sizes (e.g., 0, 3/16, 1/4, 5/16, 3/8, 1/2, 3/4)

Length Range:

15-230mm

Height Range:

20-150mm

Thickness Range:

25-265mm

Relative Deviation:

≤0.005mm

Concentricity:

≤0.01mm

Hardness Testing:

Rockwell Hardness Tester

Measurement Accuracy:

3D Image Measuring Instrument

Payment & Shipping Terms

Minimum Order Quantity

High Precision Carbide Die for Screw Extrusion Mould

Get Best Price

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

Get Best Price

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

Get Best Price

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

Get Best Price

+8613983025528

hou@citool.com

86-023-60338218-60338218

Contact Now

Product Description

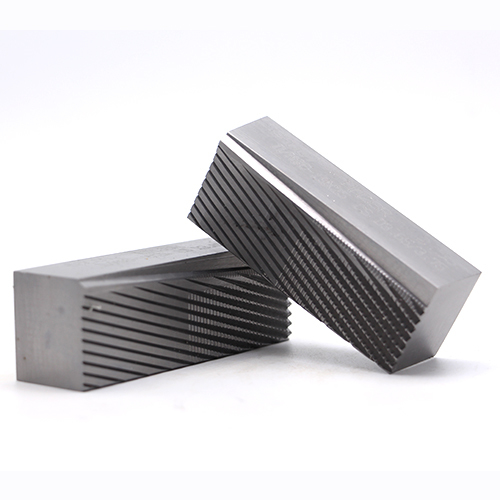

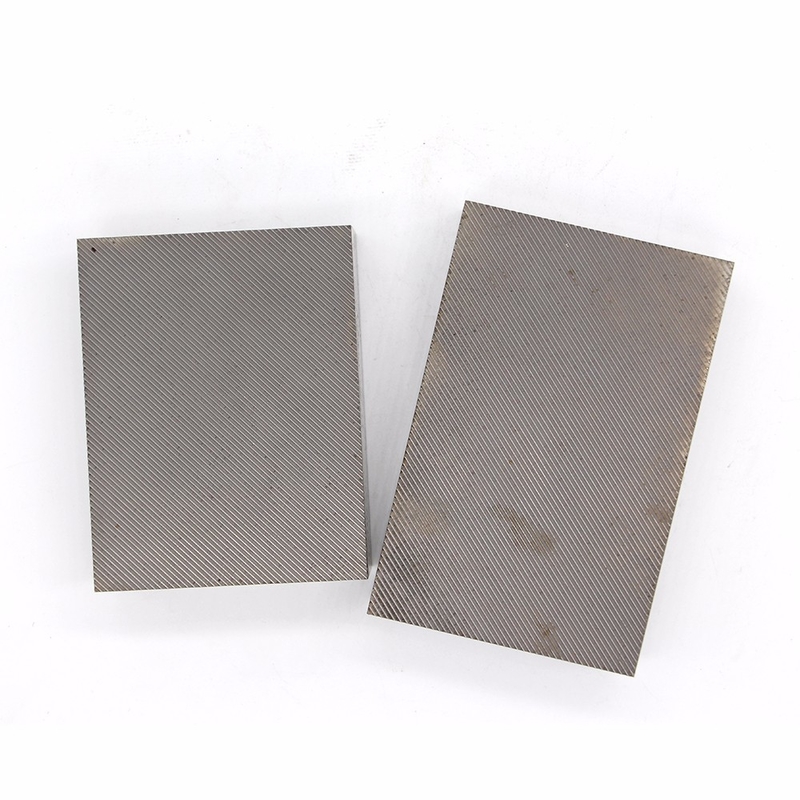

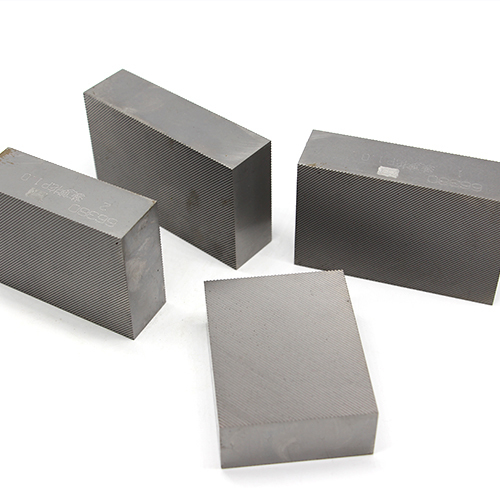

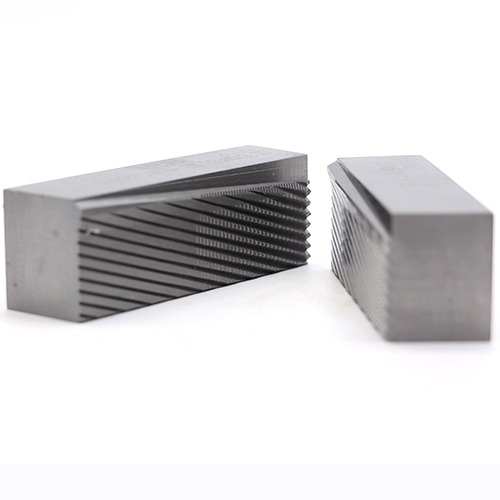

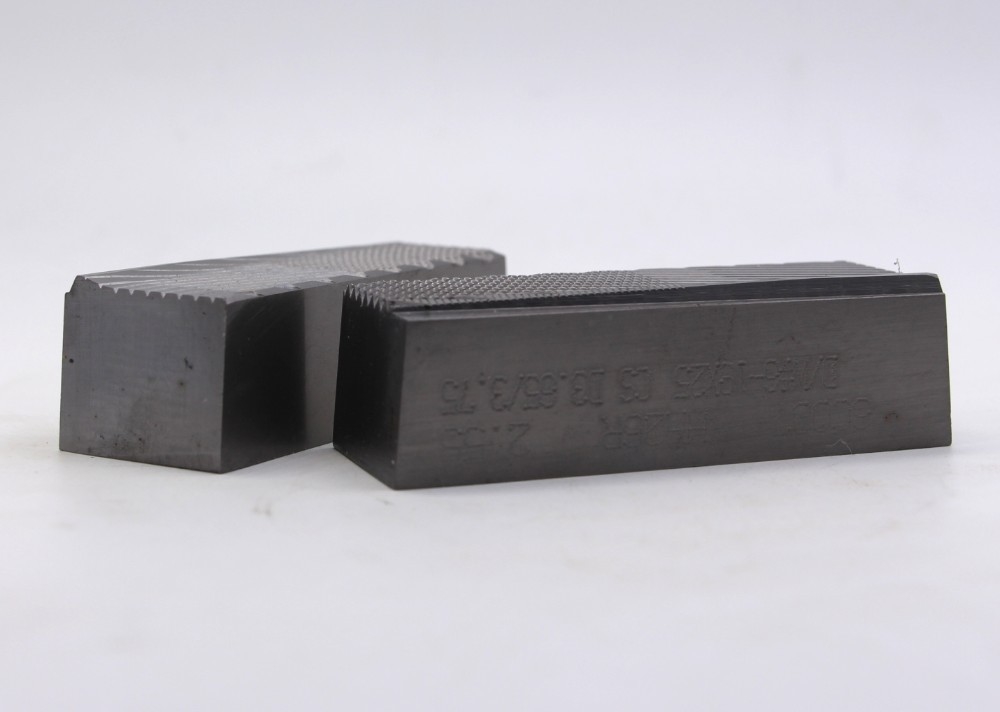

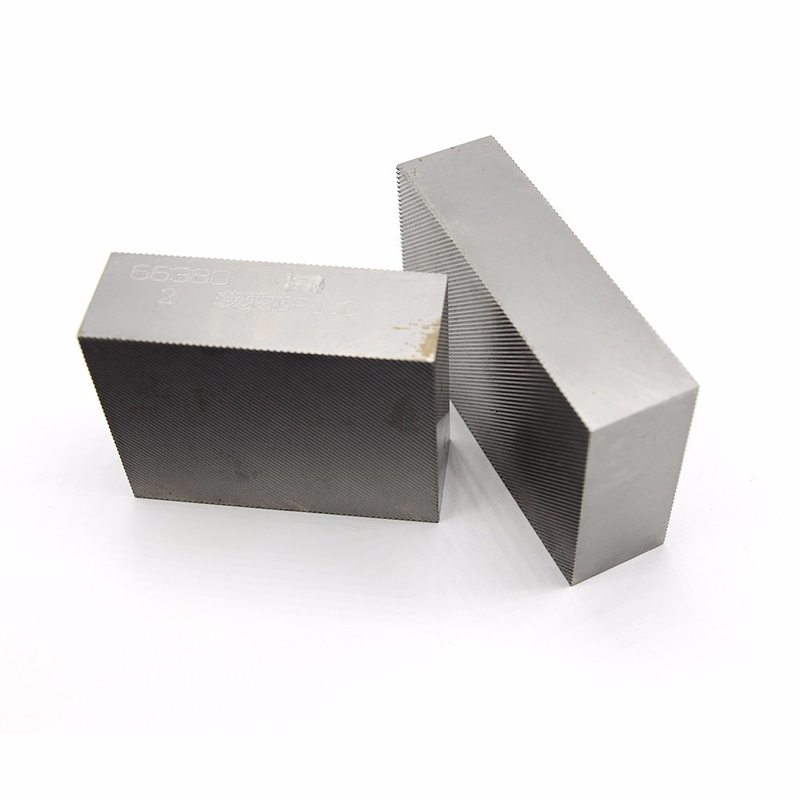

Henghui Self Tapping Screw Making Molds Thread Rolling Dies Plate DC53+N

Product Specifications

Attribute	Value
Shaping Mode	Die Casting
Product Material	DC53
Product	SCREW, Thread Rolling Dies
Product name	Screw Making Molds Thread Rolling Dies Plate HSS
Material	HSS
Size	Customer's Drawing
Certificate	ISO9001:2015
Type	A/B
Service	Customized OEM
Usage	For making screws
Packing	Carton

Product Description

Material Specifications

Our main case materials are DC53+N or H9+N

Size

Length*Height*thickness (for example, 90/105x25x25mm)

DC53 Chemical Composition

Element	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

Machine Type Specifications

MACHINE TYPE	S	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38,55	75	90
1/4	25	25,40,55,65,80	100	115
5/16	25	25,40,55,65,80,105	127	140
3/8	25	25,40,55,65,80,105	150	165
1/2	35	55,80,105,125,150	190	215
3/4	38	55,80,105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25,30,40,55	90	105
8R	25	25,30,40,55,65	108	127
250	25	25,40,55	110	125
DR125	20.8	25,40	73.3	86.2 (5。）
DR200	20.8	25,40,53	92.3	105.2 (53)
DR250	23.8	25,40,54	112	131.2 (Í)

Product Features

Henghui specializes in manufacturing high-quality screw thread rolling dies using premium raw materials. Our engineers professionally design each die according to customer specifications, ensuring:

High accuracy and dimensional stability
Exceptional strength and durability
Extended service life compared to competitors
Compatibility with most threading machines
Custom solutions for specialized applications

We offer comprehensive technical support and can advise on the optimal thread rolling die for your specific requirements. Contact us with your technical inquiries for a response within 24 hours.

Manufacturing Capabilities

Chongqing Henghui Precision Mold Co., Ltd. operates with advanced CNC equipment and strict quality control:

CNC lathes and machining centers
Precision grinding and EDM machines
Comprehensive testing equipment including hardness testers and 3D measuring instruments
ISO9001:2015 certified quality management
Dimensional accuracy within 0.005mm
Concentricity control within 0.01mm
