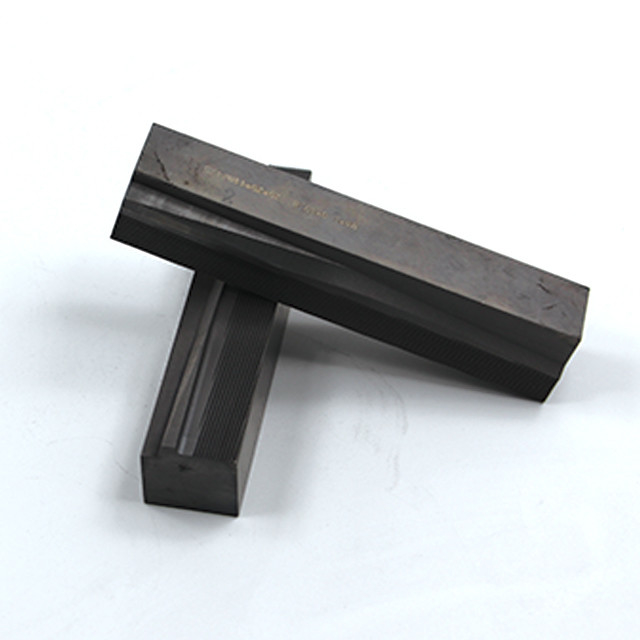

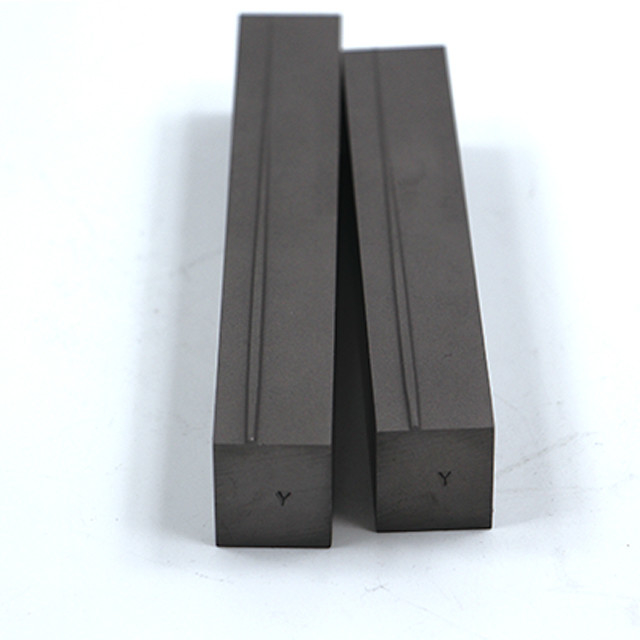

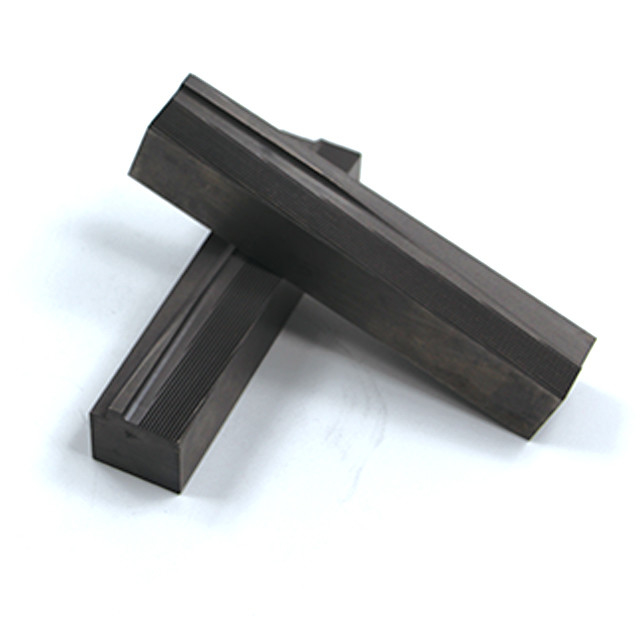

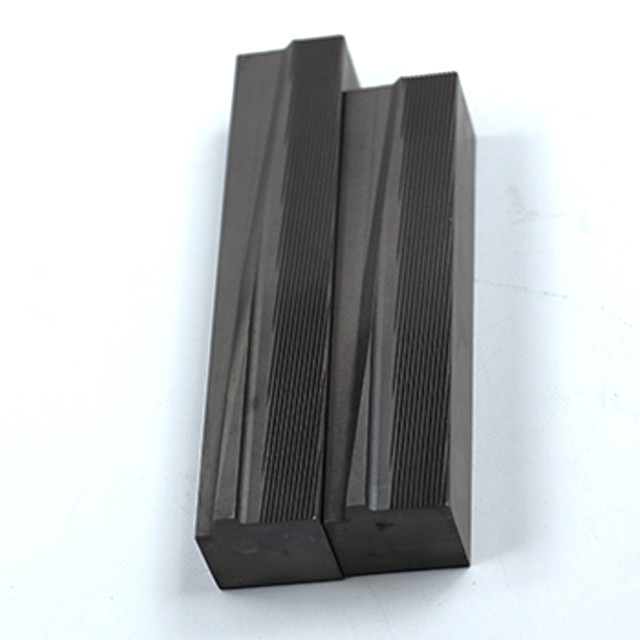

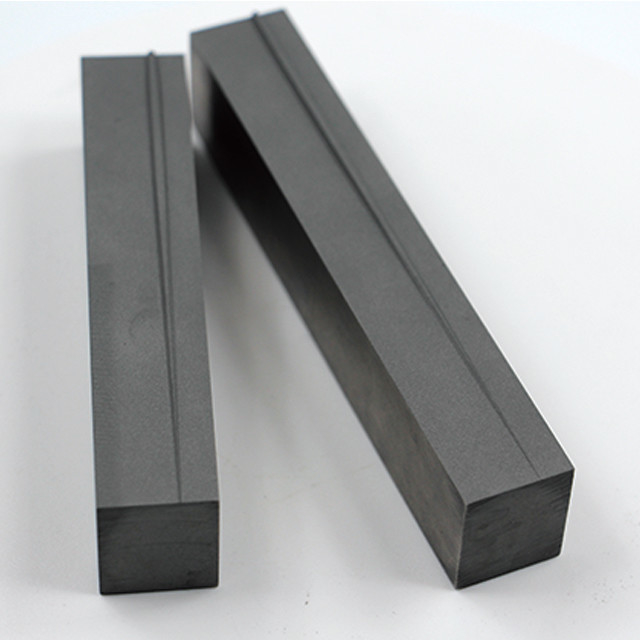

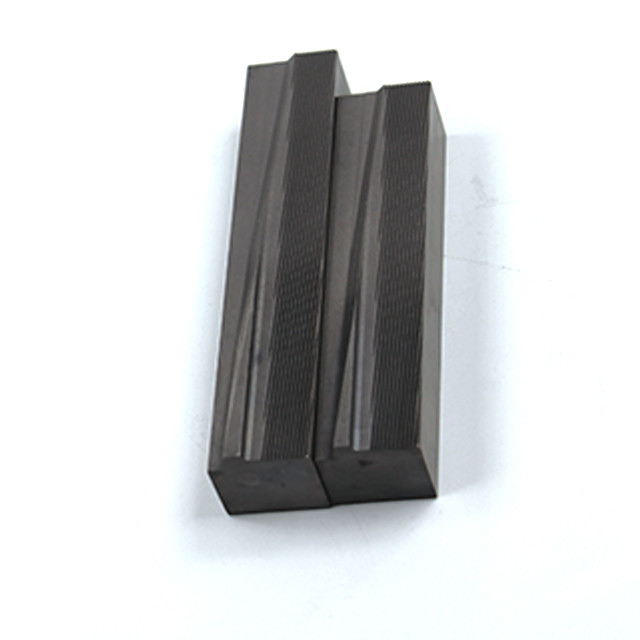

Name: Thread Rolling Dies - Chipless High-Efficiency Thread Forming Tools For High-Strength Threads In Fastener Manufacturing
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Home > products > Thread Rolling Die >

Thread Rolling Dies - Chipless High-Efficiency Thread Forming Tools For High-Strength Threads In Fastener Manufacturing

ISO10642 Micro Screw

Stainless Steel Micro Screw

Customized Micro Screw

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Request A Quote

Thread Rolling Dies - Chipless High-Efficiency Thread Forming Tools For High-Strength Threads In Fastener Manufacturing

Product Details

Product Name:

Thread Rolling Die

Size:

Customized

Surface Treatment:

Customer's Request

Mould Life:

250000-300000shots

Runner:

Hot Runner/Cold Runner

Application:

Industry

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20 Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

High-Performance Thread Rolling Dies Cemented Carbide Construction HRC 58-65 Hardness

Get Best Price

Tungsten Carbide Thread Rolling Die Precision Tooth Profile Wear Fatigue Resistant for M3-M30 Stainless Alloy Steel Threads High Hardness

Get Best Price

High-Strength High-Efficiency Thread Rolling Die - Metal Forming Tool For Mechanical Manufacturing Automotive Industry Applications

Get Best Price

Hard Alloy Thread Rolling Dies - High Strength, Long Service Life, High Hardness, Fatigue Resistance, Ideal for Mass Production of Automotive Fasteners

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Material:

Our main case material are DC53+N or H9+N

Size:

Length*Height*thickness(for example, 90/105x25x25mm)

DC53:

Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

MACHINE TYPE	S	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38, 55	75	90
1/4	25	25,40, 55, 65,80	100	115
5/16	25	25,40, 55, 65,80, 105	127	140
3/8	25	25,40, 55, 65,80, 105	150	165
1/2	35	55, 80, 105, 125,150	190	215
3/4	38	55, 80, 105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25, 30, 40, 55	90	105
8R	25	25, 30, 40, 55, 65	108	127
250	25	25, 40, 55	110	125
DR125	20.8	25, 40	73.3	86.2
DR200	20.8	25, 40, 53	92.3	105.2
DR250	23.8	25, 40, 54	112	131.2

Thread Rolling Dies - Chipless High-Efficiency Thread Forming Tools For High-Strength Threads In Fastener Manufacturing 0

Long life of the thread rolling die

Henghui is specialized in the making of screw thread rolling dies, made of best raw materials available in the market. These screw thread rolling dies are designed professionally by our engineers per customers’ specifications or work pieces. Each staff tries try his best to have screw thread rolling dies with high accuracy, high strength and high stability by high skills and strict quality control system.Therefore the screw thread rolling dies life is longer than dies produced by other companies based on the same materials and the same price or even lower price.

Henghui manufacture thread rolling dies taking the needs of our customers very much into account. The range of thread rolling dies covers most of threading machines on the market. Likewise, we cover all kinds of screw threads.

We also manufacture custom thread rolling dies to customer specifications. You can see examples of different designs and shapes in the product details page.

Furthermore, we advise our customers in choosing the type of thread rolling die that best suits their needs. You can send your technical inquiries to us, and we will be in touch within 24 hours to offer you the best solution.

Process

Advantages:

Produces Superior Strength Threads:

The rolling process cold-works the metal, realigning the grain structure along the thread profile. This significantly increases the tensile strength, fatigue strength, and surface hardness of the threads compared to cut threads.
Generates No Material Waste (Chips):

Since it's a forming process (displacing metal) rather than a cutting process (removing metal), thread rolling produces no swarf or chips. This is both economical and environmentally cleaner.
High Production Speed & Efficiency:

Thread rolling is a very fast process, often taking only seconds per part. This makes it ideal for high-volume manufacturing of bolts, screws, studs, and other threaded fasteners.
Excellent Surface Finish:

The rolling action creates a smooth, burnished surface finish on the threads. This reduces friction,improves wear resistance, and enhances corrosion resistance compared to the rougher surfaces left by cutting.
