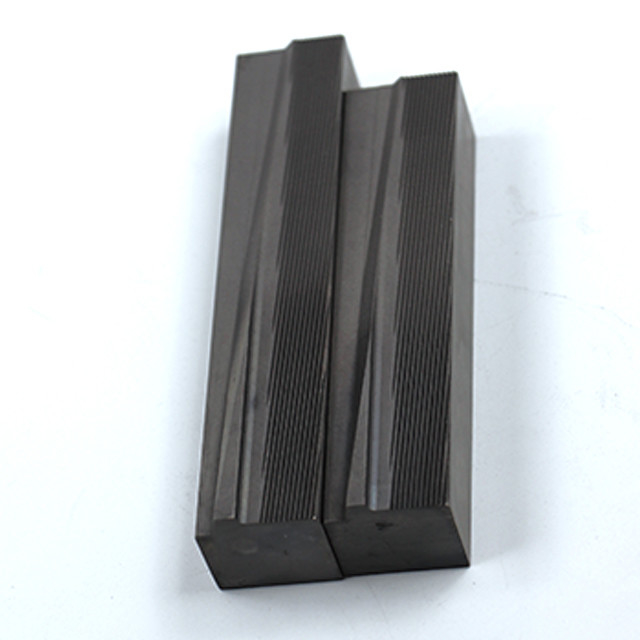

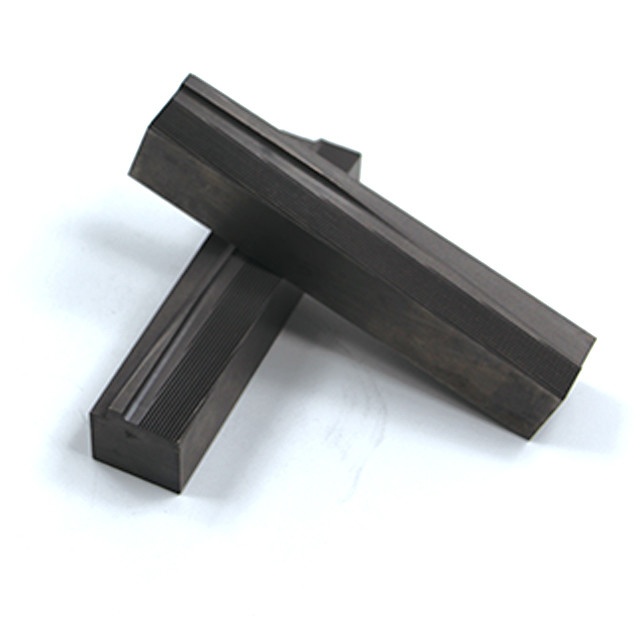

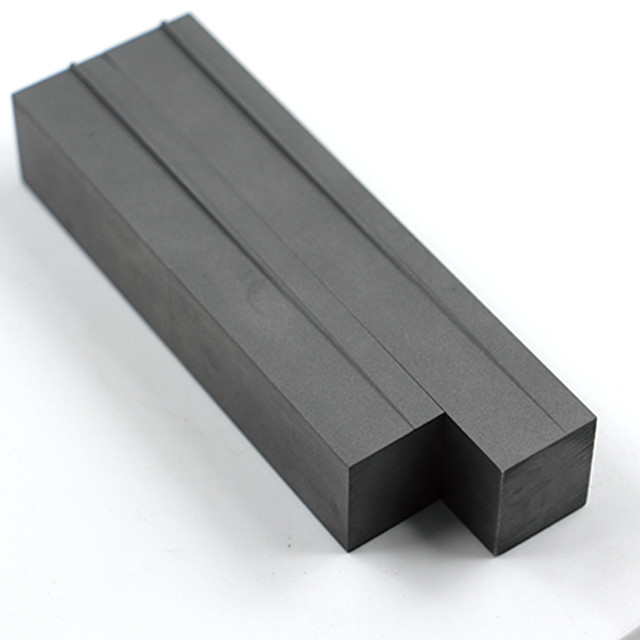

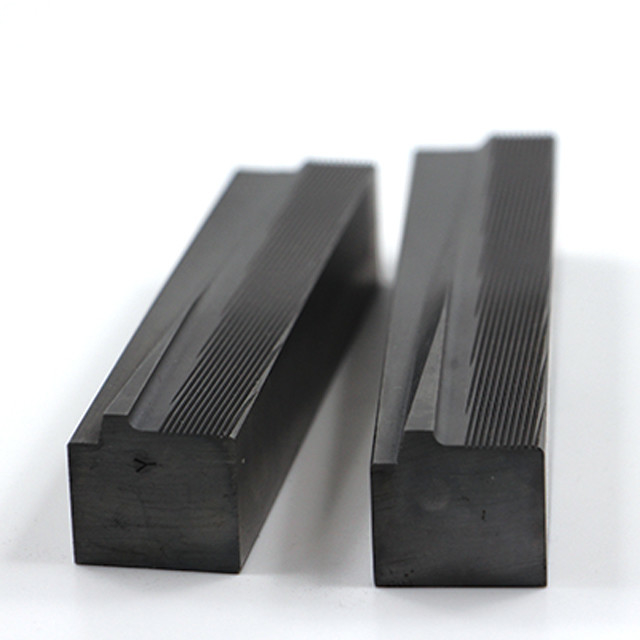

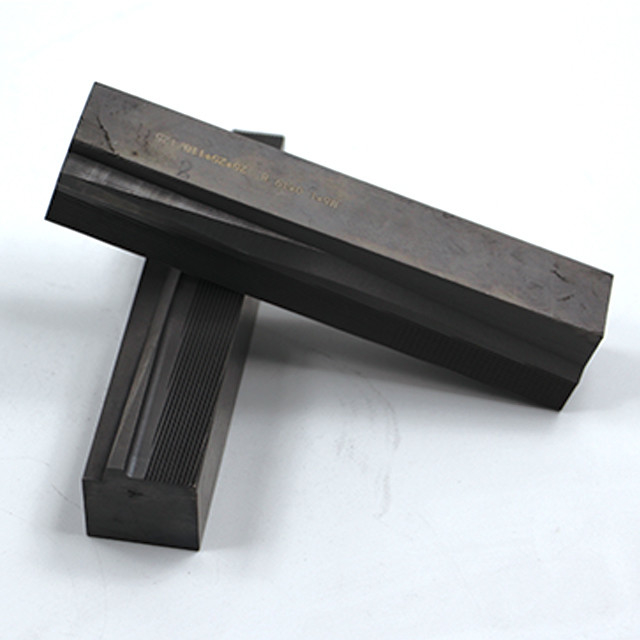

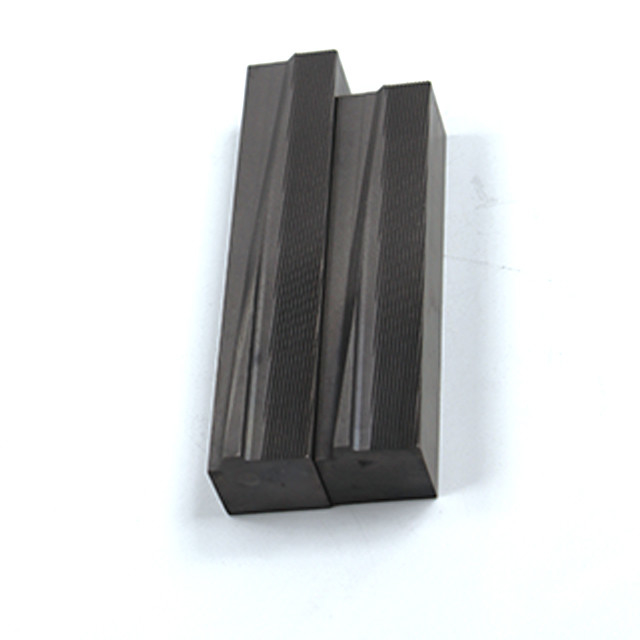

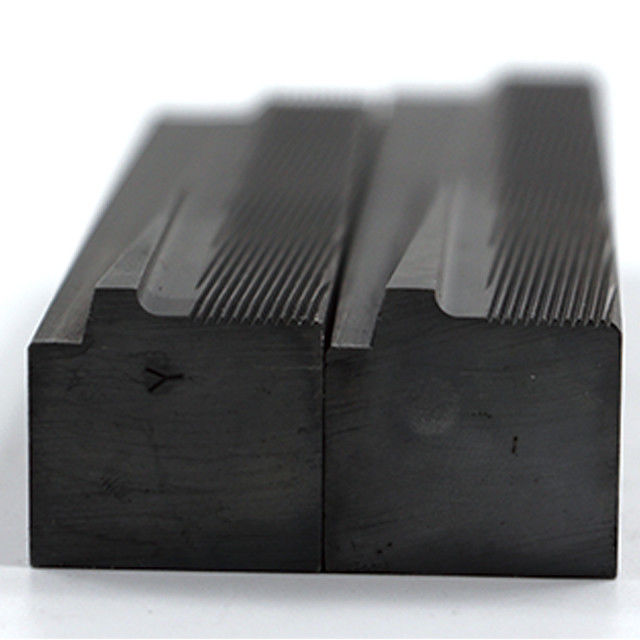

High-Strength High-Efficiency Thread Rolling Die - Metal Forming Tool For Mechanical Manufacturing Automotive Industry Applications

Product Details

Product Name:

Thread Rolling Die

Size:

Customized

Mould Material:

Carbide Die

Application:

Industry

Surface Treatment:

Customer's Request

Hardness:

45-68 HRC

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

USD+2-1PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T

Supply Ability

1000PCS+Month

High-Strength High-Efficiency Thread Rolling Die - Metal Forming Tool For Mechanical Manufacturing Automotive Industry Applications

Get Best Price

Hard Alloy Thread Rolling Dies - High Strength, Long Service Life, High Hardness, Fatigue Resistance, Ideal for Mass Production of Automotive Fasteners

Get Best Price

Thread Rolling Die Flat Thread Rolling Die China Supplier Customized Good Quality

Get Best Price

Customized High Speed Steel With 125-225 mm Center Distance Of Round Tail Screw Thread Rolling Die

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Material:

Our main case material are DC53+N or H9+N

Size:

Length*Height*thickness(for example, 90/105x25x25mm)

DC53:

Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

MACHINE TYPE	s	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38, 55	75	90
1/4	25	25,40, 55 65,80	100	115
5/16	25	25,40, 55 65,80, 105	127	140
3/8	25	25,40, 55 65,80, 105	150	165
1/2	35	55, 80 105, 125,150	190	215
3/4	38	55, 80 105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25, 30 40, 55	90	105
8R	25	25, 30 40, 55, 65	108	127
250	25	25, 40, 55	110	125
DR125	20.8	25, 40	73.3	86.2
DR200	20.8	25, 40, 53	92.3	105.2
DR250	23.8	25, 40, 54	112	131.2

Long life of the thread rolling die

Henghui is specialized in the making of screw thread rolling dies, made of best raw materials available in the market. These screw thread rolling dies are designed professionally by our engineers per customers’ specifications or work pieces. Each staff tries try his best to have screw thread rolling dies with high accuracy, high strength and high stability by high skills and strict quality control system.Therefore the screw thread rolling dies life is longer than dies produced by other companies based on the same materials and the same price or even lower price.

Henghui manufacture thread rolling dies taking the needs of our customers very much into account. The range of thread rolling dies covers most of threading machines on the market. Likewise, we cover all kinds of screw threads.

We also manufacture custom thread rolling dies to customer specifications. You can see examples of different designs and shapes in the product details page.

Furthermore, we advise our customers in choosing the type of thread rolling die that best suits their needs. You can send your technical inquiries to us, and we will be in touch within 24 hours to offer you the best solution.

Process
