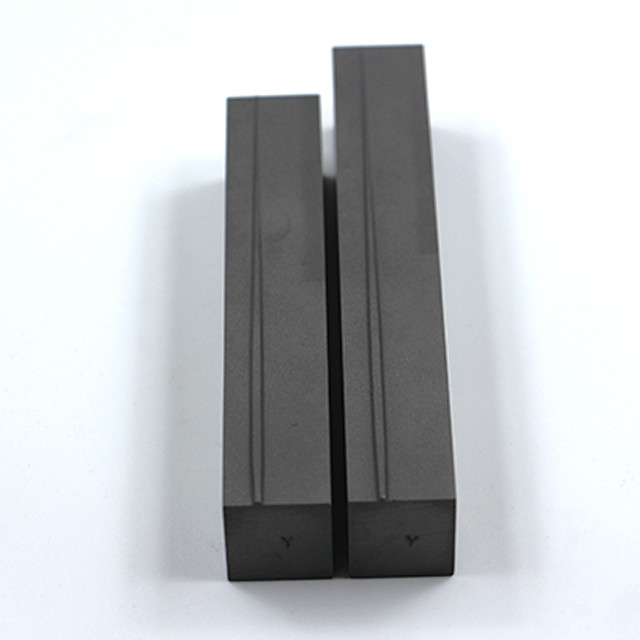

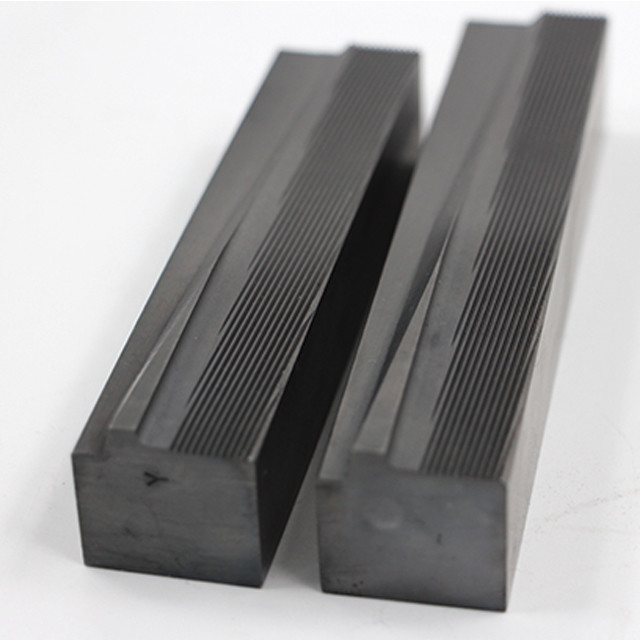

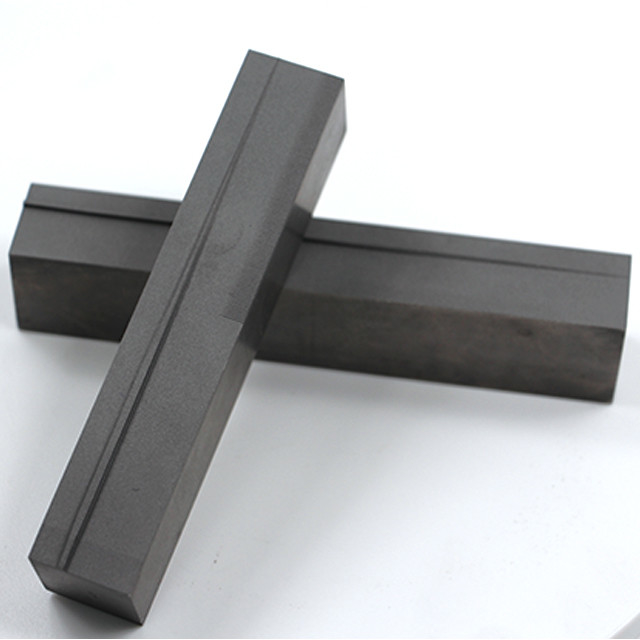

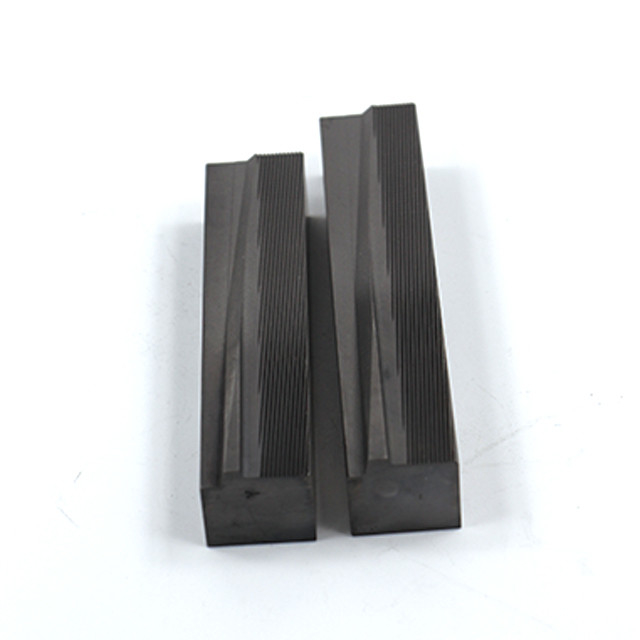

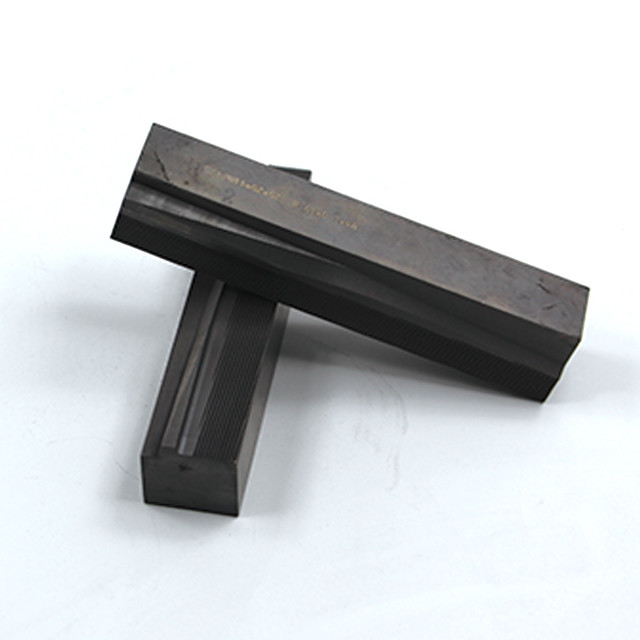

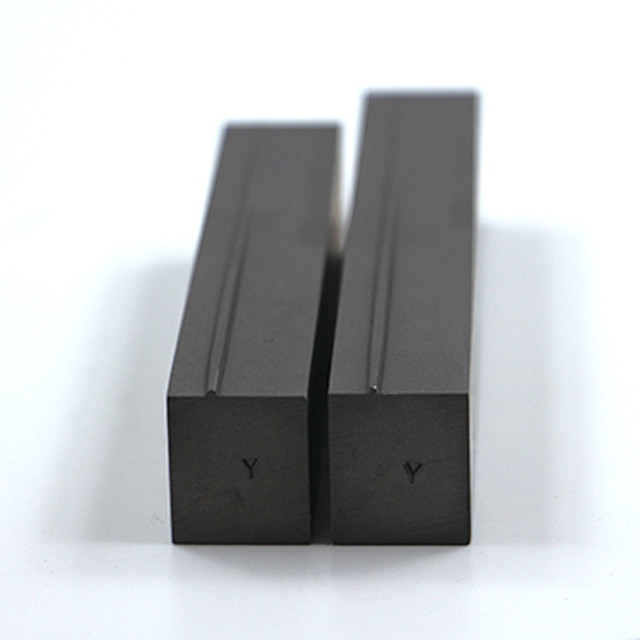

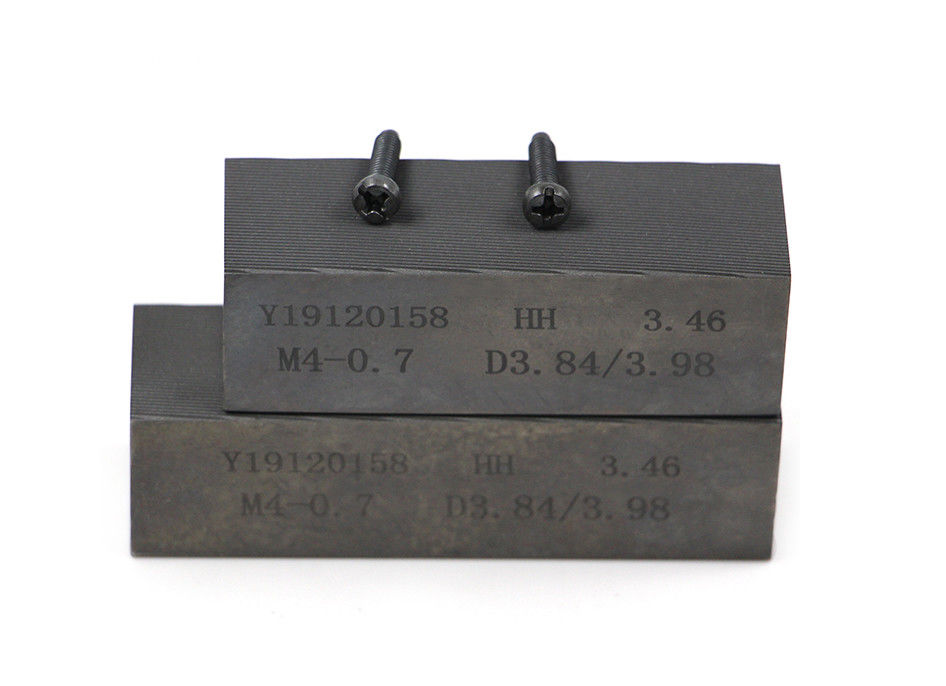

Name: High-Performance Thread Rolling Dies Cemented Carbide Construction HRC 58-65 Hardness
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Home > products > Thread Rolling Die >

High-Performance Thread Rolling Dies Cemented Carbide Construction HRC 58-65 Hardness

Micro Screw Self Dilling Tapping Screws

Carbon Steel Self Dilling Tapping Screws

DIN7504 Self Dilling Tapping Screws

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Request A Quote

High-Performance Thread Rolling Dies Cemented Carbide Construction HRC 58-65 Hardness

Product Details

Product Name:

Thread Rolling Die

Size:

Customized

Mould Life:

250000-300000shots

Drawing Format:

2D/(PDF/CAD)3D(IGES/STEP)

Delivery Time:

15~20 Days

Payment Term:

T/T

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20 Days

Payment Terms

T/T, L/C

Supply Ability

10000 PCS Month

Tungsten Carbide Thread Rolling Die Precision Tooth Profile Wear Fatigue Resistant for M3-M30 Stainless Alloy Steel Threads High Hardness

Get Best Price

High-Strength High-Efficiency Thread Rolling Die - Metal Forming Tool For Mechanical Manufacturing Automotive Industry Applications

Get Best Price

Hard Alloy Thread Rolling Dies - High Strength, Long Service Life, High Hardness, Fatigue Resistance, Ideal for Mass Production of Automotive Fasteners

Get Best Price

Thread Rolling Die Flat Thread Rolling Die China Supplier Customized Good Quality

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Material:

Our main case material are DC53+N or H9+N

Size:

Length*Height*thickness(for example, 90/105x25x25mm)

DC53:

Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

MACHINE TYPE	S	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38, 55	75	90
1/4	25	25,40 55, 65,80	100	115
5/16	25	25,40, 55 65,80, 105	127	140
3/8	25	25,40, 55 65,80, 105	150	165
1/2	35	55, 80 105, 125,150	190	215
3/4	38	55, 80 105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25, 30 40, 55	90	105
8R	25	25, 30 40, 55, 65	108	127
250	25	25, 40, 55	110	125
DR125	20.8	25, 40	73.3	86.2
DR200	20.8	25, 40, 53	92.3	105.2
DR250	23.8	25, 40, 54	112	131.2

* Long life of the thread rolling die

Henghui is specialized in the making of screw thread rolling dies, made of best raw materials available in the market. These screw thread rolling dies are designed professionally by our engineers per customers’ specifications or work pieces. Each staff tries try his best to have screw thread rolling dies with high accuracy, high strength and high stability by high skills and strict quality control system.Therefore the screw thread rolling dies life is longer than dies produced by other companies based on the same materials and the same price or even lower price.

Henghui manufacture thread rolling dies taking the needs of our customers very much into account. The range of thread rolling dies covers most of threading machines on the market. Likewise, we cover all kinds of screw threads.

We also manufacture custom thread rolling dies to customer specifications. You can see examples of different designs and shapes in the product details page.

Furthermore, we advise our customers in choosing the type of thread rolling die that best suits their needs. You can send your technical inquiries to us, and we will be in touch within 24 hours to offer you the best solution.

Advantages

1. Superior Wear Resistance Long Service Life
Technical Highlights:
Material Excellence: Manufactured from high-grade alloy steel (e.g., HSS, powder metallurgy steel) or cemented carbide, achieving
surface hardness up to HRC 58-65.
Surface Treatment: Nitriding, TiN/TiCN coatings, or cryogenic treatment enhance wear resistance by 30-50%.
Performance Benefits:
Withstand high-pressure rolling of hardened materials (e.g., stainless steel, titanium alloys).
Reduce tool replacement frequency, lowering production downtime.
Typical Applications: High-volume fastener production (screws, bolts), automotive components.

2. Precision Thread Profiles & Consistency
Technical Highlights:
Advanced Machining: CNC grinding or wire EDM ensures thread pitch accuracy within ±0.005 mm and profile tolerance <0.01 mm.
Stress-Free Process: Cold rolling technology improves thread strength by 20-40% compared to cutting methods.
Performance Benefits:
Eliminate burrs and microfractures, ensuring smooth thread surfaces.
Maintain uniform thread dimensions across millions of cycles.
Typical Applications: Aerospace fasteners, medical implants, precision machinery parts.

3. High EfficiencyAdaptability
Technical Highlights:
Optimized Design: Multi-rib or segmented dies enable rapid thread forming (e.g., 200-500 pieces/minute).
Versatility: Compatible with diverse materials (aluminum, carbon steel, superalloys) and thread types (metric, UNC, UNF).
Performance Benefits:
Reduce energy consumption by 15-30% vs. traditional cutting.
Support custom profiles (e.g., trapezoidal, ACME threads) for specialized industries.
Typical Applications: Hydraulic fittings, electrical connectors, construction hardware.
