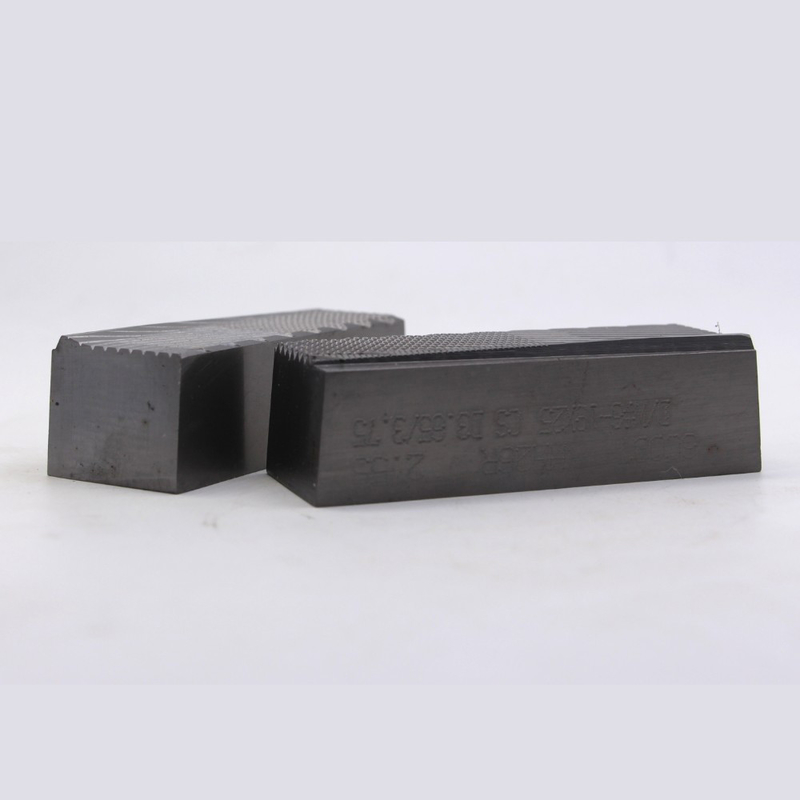

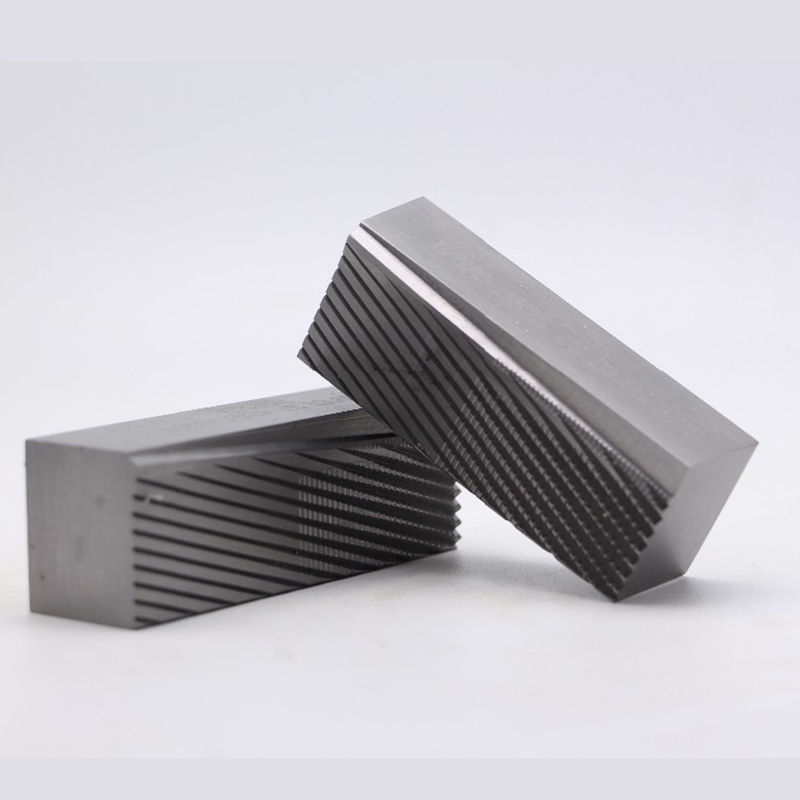

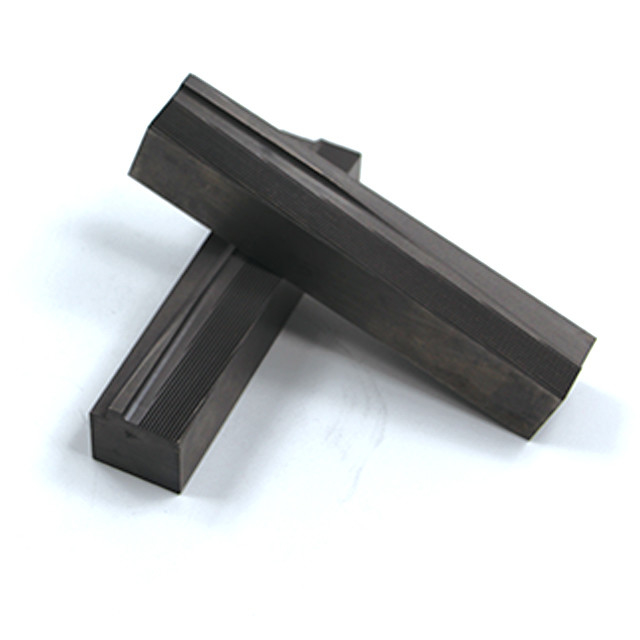

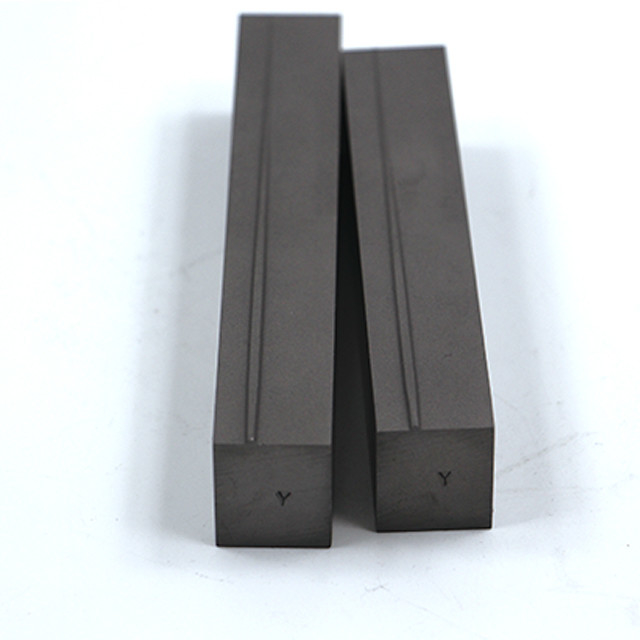

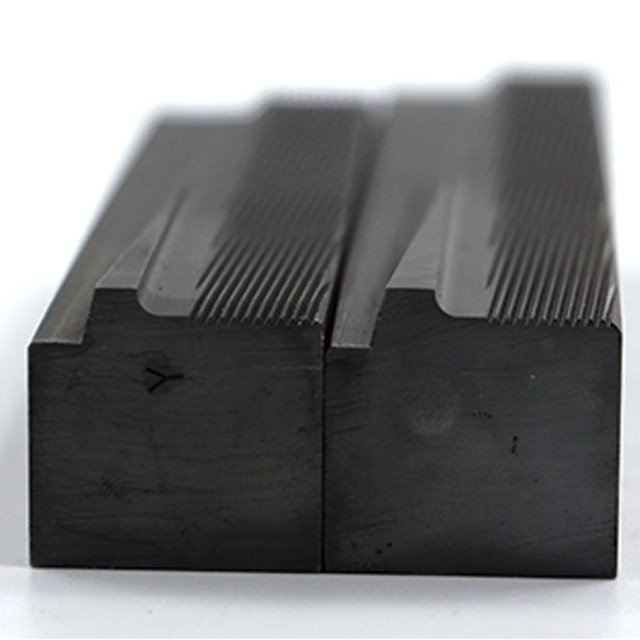

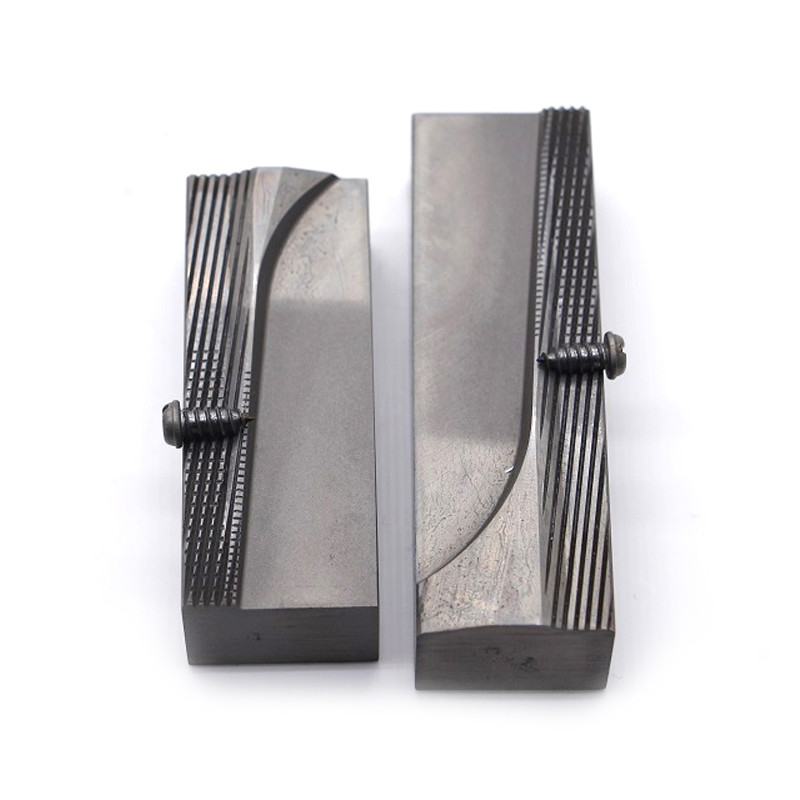

Name: Tungsten Carbide Thread Rolling Die Precision Tooth Profile Wear Fatigue Resistant for M3-M30 Stainless Alloy Steel Threads High Hardness
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Home > products > Thread Rolling Die >

Tungsten Carbide Thread Rolling Die Precision Tooth Profile Wear Fatigue Resistant for M3-M30 Stainless Alloy Steel Threads High Hardness

Carbon Steel Roofing Micro Screws

EPDM Washer Roofing Micro Screws

Self Drilling Roofing Micro Screws

Place of Origin:

CHINA

Brand Name:

Heng Hui

Certification:

ISO9001

Model Number:

Customized

Request A Quote

Product Details

Material:

Carbide Die

Surface Treatment:

Customer's Request

Mould Life:

250000-300000shots

Hardness:

45-68 HRC

Drawing Format:

2D/(PDF/CAD)3D(IGES/STEP)

Usage:

Screw Producing

Payment & Shipping Terms

Minimum Order Quantity

10 PCS

Price

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T, D/A

Supply Ability

1000 PCS Month

High-Strength High-Efficiency Thread Rolling Die - Metal Forming Tool For Mechanical Manufacturing Automotive Industry Applications

Get Best Price

Hard Alloy Thread Rolling Dies - High Strength, Long Service Life, High Hardness, Fatigue Resistance, Ideal for Mass Production of Automotive Fasteners

Get Best Price

Thread Rolling Die Flat Thread Rolling Die China Supplier Customized Good Quality

Get Best Price

Customized High Speed Steel With 125-225 mm Center Distance Of Round Tail Screw Thread Rolling Die

Get Best Price

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Contact Now

Product Description

Products Description

Material: Our main case material are DC53+N or H9+N

Size: Length Height thickness(for example 90/105x25x25mm)

Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

MACHINE TYPE	S	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38, 55	75	90
1/4	25	25,40 55, 65,80	100	115
5/16	25	25,40, 55 65,80, 105	127	140
3/8	25	25,40, 55 65,80, 105	150	165
1/2	35	55, 80 105, 125,150	190	215
3/4	38	55, 80 105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25, 30 40, 55	90	105
8R	25	25, 30 40, 55, 65	108	127
250	25	25, 40, 55	110	125
DR125	20.8	25, 40	73.3	86.2
DR200	20.8	25, 40, 53	92.3	105.2
DR250	23.8	25, 40, 54	112	131.2

Cut your mold costs by 15%-30%

Material optimization: Import P20/NAK80 steel with 200,000+ shot lifespan
Integrated DFM analysis to reduce trial cycles (Avg. 3 times → 1.5 times)

Accelerate time-to-market within 15 days

24/7 rapid prototyping with ±0.005mm tolerance
Full-process tracking: CAD/CAM → T0 sample delivery
Eliminate post-processing risks
Surface finish options: SPI A1~D3, EDM texture, or custom polishing
100% QC report with moldflow/cavity pressure data

Process

Factory

Inspection Equipment
