China Factory Thread Rolling Die DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold

China Factory Thread Rolling Die DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold

Screw Thread Rolling Die

Customized Thread Rolling Die

Long life Thread Rolling Die

Place of Origin:

China,Chongqing

Brand Name:

Henghui

Model Number:

Customized

Contact Us

Request A Quote
Product Details
Product Name:
Thread Rolling Die
Material:
DC53
Usage:
Screw Making
Size:
Customized
Lead Time:
15-20 Days
Shape:
Round, Square, Hexagonal
Bussiness Type:
Manufacture
Precision:
0.001mm
Type:
Circular Thread Rolling Die
Feature:
Wear-resisting
Thread Diameter:
M6
Surface:
Machined Or Blank
Payment & Shipping Terms
Minimum Order Quantity
10 pieces
Price
usd 10-30pieces
Packaging Details
as client's requirement
Delivery Time
10-15days
Payment Terms
T/T, Western Union
Supply Ability
1000 pieces per Month
Product Description
China Factory Thread Rolling Die DC53 +N for Screw Thread Rolling Machine Customized Long life Mold
Products Description

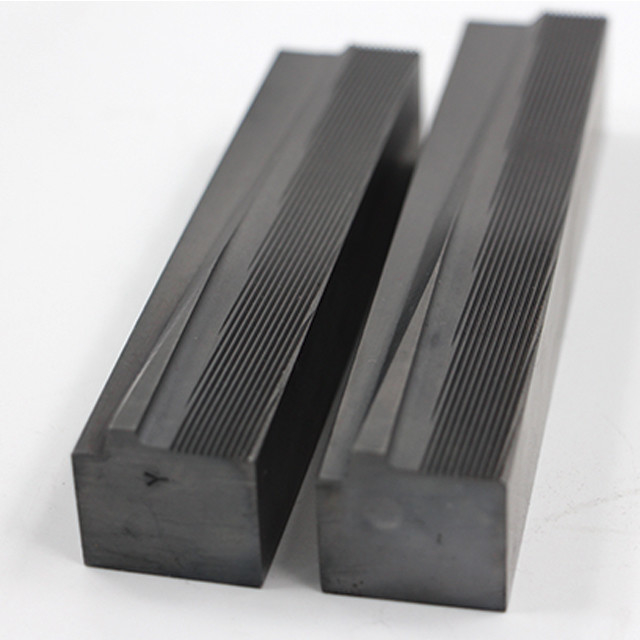

China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 0

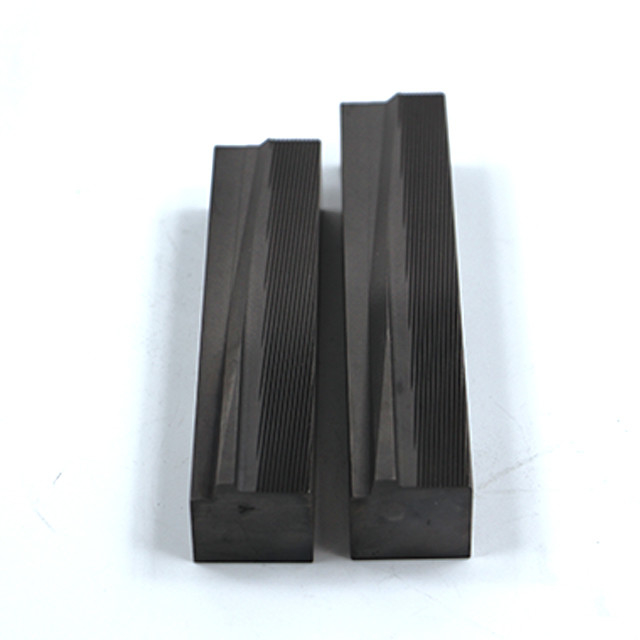

China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 1

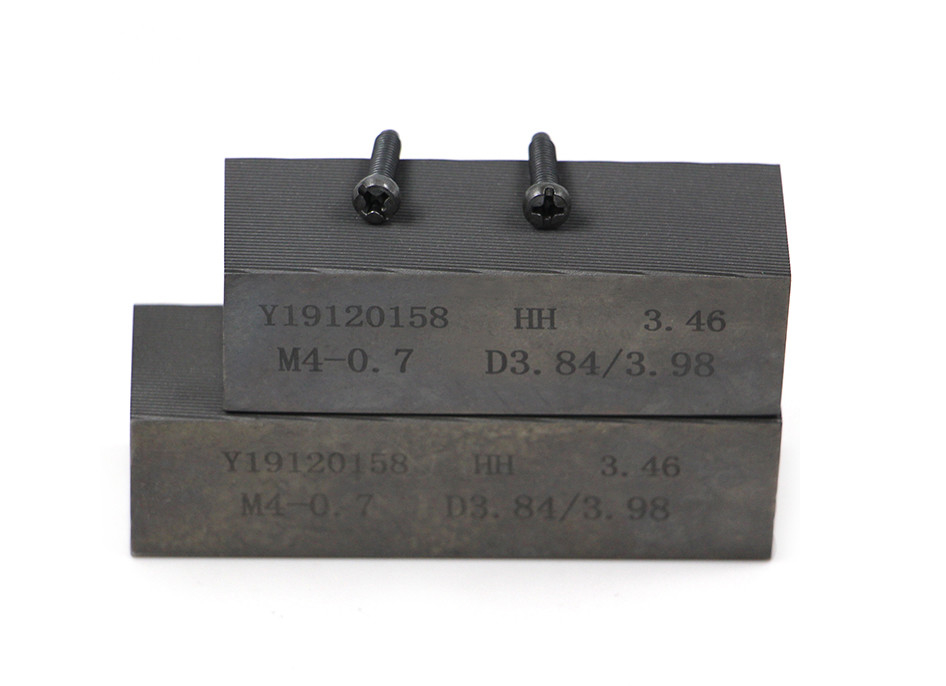

China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 2




Material:
Our main case material are DC53+N or H9+N

Size:
Length*Height*thickness(for example, 90/105x25x25mm)

DC53:


Chemical Composition

C

Si

Mn

P

S

Cr

Mo

V

W

Content (%)

0.95

0.89

0.3

0.018

0.006

7.7

1.92

0.75

0.91



MACHINE TYPE

s

H

L1(FIXED)

L2(MOVING)

0

19

25

51

64

3/16

25

25,38, 55

75

90

1/4

25

25,40, 55, 65,80

100

115

5/16

25

25,40, 55, 65,80, 105

127

140

3/8

25

25,40, 55, 65,80, 105

150

165

1/2

35

55, 80, 105, 125,150

190

215

3/4

38

55, 80, 105,125,150

230

265

003

15

20

45

55

004

20

25

65

80

4R

20

25

60

70

6R

25

25, 30, 40, 55

90

105

8R

25

25, 30, 40, 55, 65

108

127

250

25

25, 40, 55

110

125

DR125

20.8

25, 40

73.3

86.2 (5.)

DR200

20.8

25, 40, 53

92.3

105.2 (53)

DR250

23.8

25, 40, 54

112

131.2 (Í)

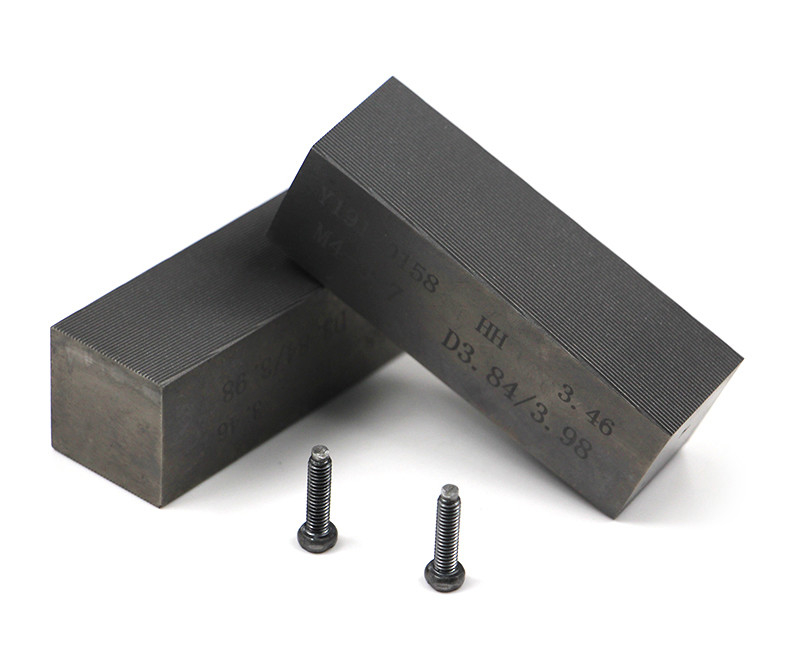

China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 3




* Long life of the thread rolling die
Henghui is specialized in the making of screw thread rolling dies, made of best raw materials available in the market. These screw thread rolling dies are designed professionally by our engineers per customers’ specifications or work pieces. Each staff tries try his best to have screw thread rolling dies with high accuracy, high strength and high stability by high skills and strict quality control system.Therefore the screw thread rolling dies life is longer than dies produced by other companies based on the same materials and the same price or even lower price.
Henghui manufacture thread rolling dies taking the needs of our customers very much into account. The range of thread rolling dies covers most of threading machines on the market. Likewise, we cover all kinds of screw threads.
We also manufacture custom thread rolling dies to customer specifications. You can see examples of different designs and shapes in the product details page.
Furthermore, we advise our customers in choosing the type of thread rolling die that best suits their needs. You can send your technical inquiries to us, and we will be in touch within 24 hours to offer you the best solution.

Manufacturing Technique


CAD/CAM Mold Design

Utilizes CAD and CAM technologies for precise mold design.

CNC Machining

Employs CNC machines for precise milling, turning, and grinding of mold components.

Electric Discharge Machining (EDM)

Uses EDM machines for precise cutting of hard materials, especially for complex shapes.

Heat Treatment

Applies heat treatment techniques to enhance mold hardness and wear resistance.

High-Speed Cutting

Adopts high-speed tools to improve production efficiency and surface quality.

Mold Assembly

Involves precision assembly for accuracy and stability in screw molds.

Multi-Station Cold Forging

Involves multi-station cold forging for one-step forming of screw heads and threads.

Surface Coating

Applies high-performance coatings to enhance mold wear and corrosion resistance.


About Us


China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 4




Chongqing Henghui Precision Mould Co., Ltd

For manufacturers dedicated to the precision processing of materials used in the production of hard alloy molds, including tungsten carbide, cobalt alloys, and high-strength tool steels, our state-of-the-art facilities are equipped with cutting-edgemachinery. From advanced machining centers, CNC lathes, and CNC grinding machines to automatic warm heading equipment and large cold heading machines, our production capabilities are unparalleled.

In addition to our cutting-edge machinery, we take pride in offering top-tier dry film lubricant coatings tailored for the hard alloy mold industry. Our expertise extends to the development of specialized coating technology for critical components, whether made of hard metals or other materials, ensuring meticulous customization to meet your specifications.

Central to our commitment is a comprehensive approach encompassing research and development, precise production processes, and strategic sales efforts. We specialize in delivering high-strength, high-performance, high-precision, and highly durable products specifically designed for the hard alloy mold industry. Our unwavering commitment to quality ensures that our products meet the rigorous demands of this sector, fostering continuous innovation for future development.


Inspection Equipment


China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 5

Specification


Product Name

Thread Rolling Die

Materials

High Speed Steel

Production Equipment

1.CNC Machining Center
2.CNC Lathe
3.CNC Milling Machine
4.Cold Heading Machine

QC

1.Incoming material will be checked carefully before production.
2.Strict processing quality control
3.100% inspection before shipment.

Surface Treatment

Anodizing,Brushing,Galvanized,laser engraving, Silk printing,polishing,Powder coating,etc

Quotation

According to your drawing(size, material, thickness, processing content, and required technology, etc)

Our Advantages

1.) Online service & Quickly Quote/Delivery.
2.) 100% QC quality inspection before delivery, and can provide qualityinspection form.


Factory


China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 6

Product packaging


China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 7


China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 8


China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 9

China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 10

China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 11

China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 12





China Factory Thread Rolling Die  DC53 +N For Screw Thread Rolling Machine Customized Long Life Mold 13

FAQ


Q1:How Can I Get a Quote?

A1: If You Are a Professional, You Can Get a Quote by Sending Drawings and Requirements or Instructions. We Will Reply to You as Soon as Possible and Provide You with a Quote.
If You Are Not a Professional, You Can Tell Us Your Specific Needs. Our Professional Team Will Provide You with Multiple Customized Solutions Based on Your Needs and Provide You with a Quote.

Q2: How to enjoy the OEM services?

A2:Usually, base on your design drawings or original samples, we give some technical proposals and a quotation to you, after your agreement, we produce for you.

Q5: Can I Get a Sample to Check?

A5: Yes, You Can. You Only Need to Pay the Cost of the Sample, And We Will Refund It to You During Mass Production.
